Hobbywing XERun AXE Plus R3 ESC Combo With AXE 540L 2300Kv R2 Motor
Brand: Hobbywing
Part No: HW38020387
In Stock: Usually ships same day
The Hobbywing XERun AXE Plus R3 ESC Combo with AXE 540L 2300Kv R2 Motor (HW38020387) pairs precise FOC control with smooth, low-speed torque for rock crawling. The AXE Plus R3 delivers refined throttle response, powerful drag brake performance and robust IP67 protection, while the AXE 540L 2300Kv R2 motor offers silky startup and strong efficiency for technical terrain.

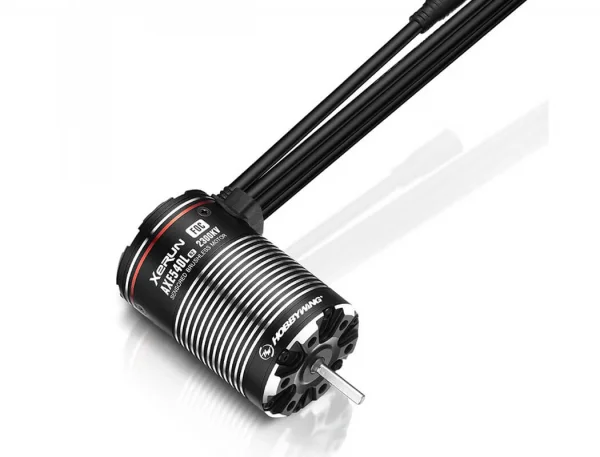

AXE 540L R2 Motor Features
- Minimum cogging torque and soft-start behaviour
- Optimised for sensitive low-speed performance
- Water and dust proof design with newly designed waterproof sensor port
- High-precision magnetic encoder for enhanced feedback to the ESC

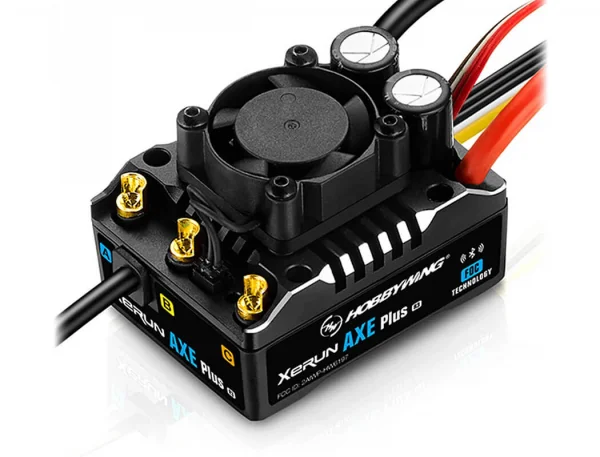

XERun AXE Plus R3 ESC Features
- FOC (Field-Oriented Control) technology for stronger, smoother performance
- Drag brake adjustable up to 200% for confident hill-holds
- Super BEC: 6V / 7.4V / 8.4V @ 6A (switch mode) to suit a range of servos
- IP67 waterproof and dustproof construction
- Smart torque delivery and speed control for consistent pace under load
- Built-in Bluetooth; tune via the Hobbywing HW LINK app
- Multiple protection functions including reverse polarity protection
- Only compatible with Xerun AX "R2" and "R3" motor series
Key Specifications
- Motor type: Sensored brushless FOC, 2300Kv, 2–3S LiPo
- Motor size/weight: Ø36.0 x 49.8mm, 185g
- Motor shaft: 3.175mm diameter, 16mm length
- Motor no-load current: 2.5A
- ESC continuous/peak current: 135A / 600A
- ESC input: 2S–6S LiPo
- ESC BEC: 6V / 7.4V / 8.4V @ 6A (switch mode)
- ESC connectors: XT60; 12AWG leads (red/black, 265mm)
- ESC cooling: 25 x 25 x 10mm fan powered by BEC
- ESC dimensions/weight: 49.5 x 37.9 x 32.8mm, 126.5g
- Programming: Built-in Bluetooth via HW LINK app; firmware upgradable
Suggested Compatibility
- Motor: 1/10 rock crawlers (2–3S LiPo)
- ESC: 1/10, 1/8 and 1/6 rock crawlers (2S–6S LiPo)
Combining the AXE Plus R3 ESC with the AXE 540L 2300Kv R2 motor creates a refined, crawler-focused system that excels at precise throttle control, quiet operation and reliable performance in challenging conditions.
Secured by Stripe
Experience the realm of RC with the Hobbywing Combo Xerun AXE Plus R3 & AXE 540L 2300KV R2 Motor. This combination offers a perfect balance of control and power, ideal for RC enthusiasts seeking top-tier performance in their vehicles. The Xerun AXE Plus R3 ESC ensures smooth operation and precise control, while the AXE 540L 2300KV R2 Motor delivers impressive power and acceleration. Together, they elevate your RC experience to new heights, allowing you to tackle any challenge with confidence.
Features Hobbywing XeRun AXE540 R2 Motor- Minimum cogging torque
- Soft start behaviour
- Optimized for sensitive performance development
- Water and dust proof for almost any situation
- Includes a newly designed waterproof sensor port
- The built-in high-precision magnetic encoder sends more information to the ESC than before
Type: Sensored Brushless FOC
Poland: 4
KV Rating: 2300KV
LiPo Cells: 2-3s
No-load Current: 2.5A
Outer Diameter: 36.0mm
Length: 49.8mm
Shaft Diameter: 3.175mm
Shaft Length: 16mm
Waterproof: yes
Weight: 185g
Application: 1/10 Rock Crawler
- Stronger performance thanks to FOC (Field-Oriented-Control) technology.
- Drag brake adjustable up to 200% for unparalleled holding power on slopes.
- Super BEC with max. 6A and three voltage levels for using different servos.
- Waterproof and dustproof to IP67 standard.
- Smart torque delivery and speed control for easy control and constant speed under all loads.
- Built-in Bluetooth module.
- Multiple controller protection functions including reverse polarity protection.
- Only compatible with Xerun AX "R2" and "R3" motor series.
Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
Key Info:
- Brand: Hobbywing
- Part No: HW38020387
- Barcode: 6938994416979
