Hobbywing XERun AXE Plus R3 ESC Combo With AXE 540L 2800Kv R2 Motor

The Hobbywing XERun AXE Plus R3 ESC Combo with AXE 540L 2800Kv R2 Motor (HW38020388) delivers precise, quiet and efficient crawler control. Leveraging FOC (Field-Oriented Control) and a sensored 4‑pole motor with a high‑precision magnetic encoder, this pairing provides ultra‑smooth startup, minimal cogging and consistent speed under load. Built‑in Bluetooth simplifies setup via the HW LINK app, while IP67‑rated protection and robust safeguards inspire confidence on the trail.

Engineered for deliberate, technical driving, the AXE Plus R3 offers a powerful adjustable drag brake (up to 200%), a Super BEC with three selectable voltages for modern servos, and smart torque delivery to keep momentum controlled on climbs and descents. Practical details such as XT60 connector, 12AWG leads and a 25mm cooling fan round out a dependable, crawler‑focused system from Hobbywing.

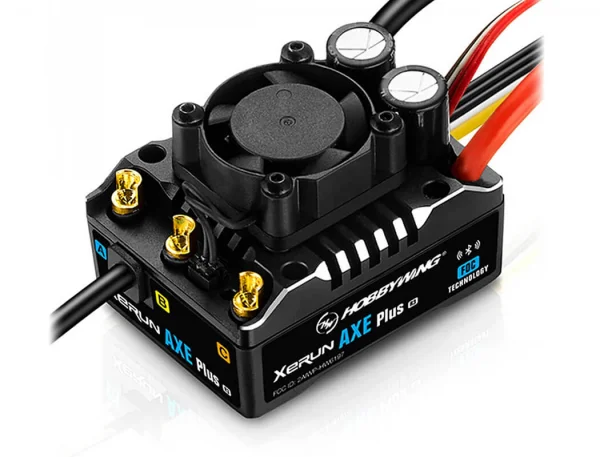

Features – XERun AXE Plus R3

• FOC technology for stronger performance and refined low‑speed control
• Drag brake adjustable up to 200% for superior holding power
• Super BEC: max 6A with 6V / 7.4V / 8.4V selection
• IP67 waterproof and dustproof construction
• Smart torque delivery and constant speed control under load
• Built‑in Bluetooth module for easy setup
• Multiple protection functions, including reverse polarity protection
• Only compatible with Xerun AX “R2” and “R3” motor series

Technical Specifications – XERun AXE Plus R3

• Type: Brushless sensored FOC
• Continuous/Peak Current: 135A / 600A
• Battery: 2S–6S LiPo
• Motor Limits: Supports Xerun‑AXE “R2” and “R3” series (AXE R2: 540 / 540L / 550; AXE R3: 4274)
• BEC: 6V / 7.4V / 8.4V @ 6A (switch mode)
• Waterproof: Yes
• Leads: 12AWG black 265mm, 12AWG red 265mm
• Fan: 25 × 25 × 10mm (BEC powered)
• Connector: XT60
• Programming: Bluetooth via HW LINK app
• Firmware Upgrade: Yes
• Dimensions: 49.5 × 37.9 × 32.8mm
• Weight: 126.5g
• Application: Rock crawler

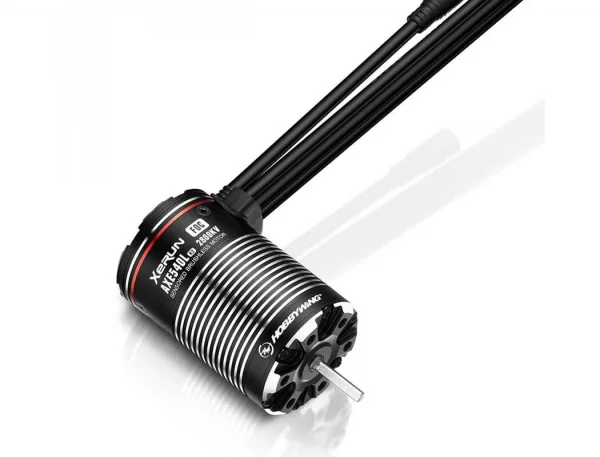

Features – AXE 540L 2800Kv R2 Motor

• Minimal cogging torque and soft, predictable startup
• Optimised for highly sensitive throttle performance
• Waterproof and dustproof design with new sealed sensor port
• High‑precision magnetic encoder supplies detailed rotor data to the ESC

Technical Specifications – AXE 540L 2800Kv R2 Motor

• Type: Sensored brushless FOC, 4‑pole
• KV Rating: 2800Kv
• LiPo Cells: 2–3S
• No‑Load Current: 3.6A
• Size: 36.0mm diameter × 57.8mm length
• Shaft: 3.175mm diameter × 16mm length
• Waterproof: Yes
• Weight: 213g
• Application: Rock crawler

Suggested Compatibility

• ESC: 1/10, 1/8 and 1/6 rock crawlers
• Motor: 1/10 rock crawlers

Programming And Updates

• Built‑in Bluetooth and HW LINK app support for configuration
• Firmware upgradeable for future enhancements
