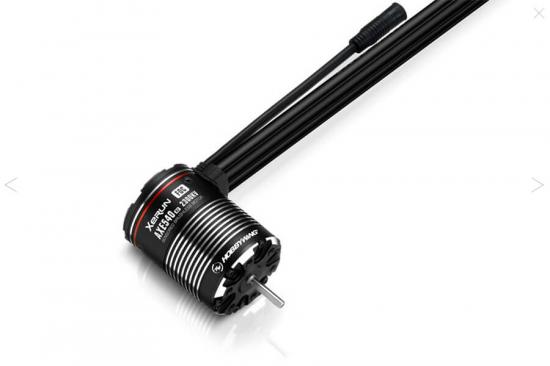

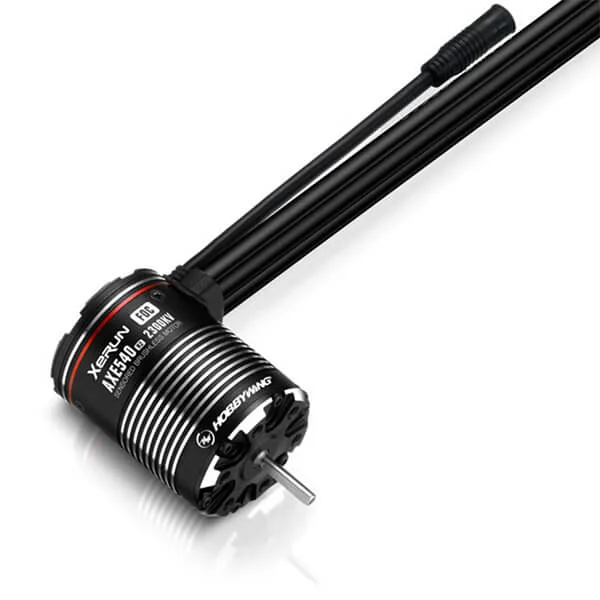

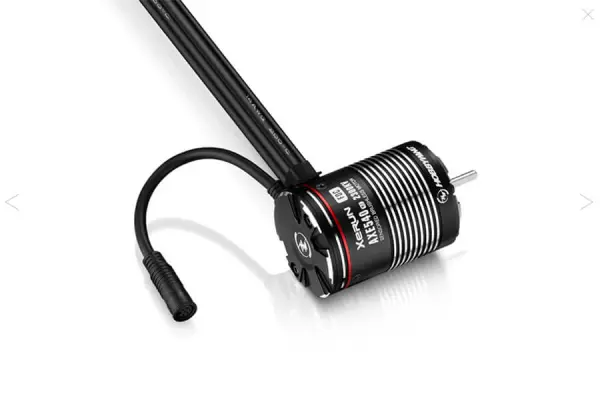

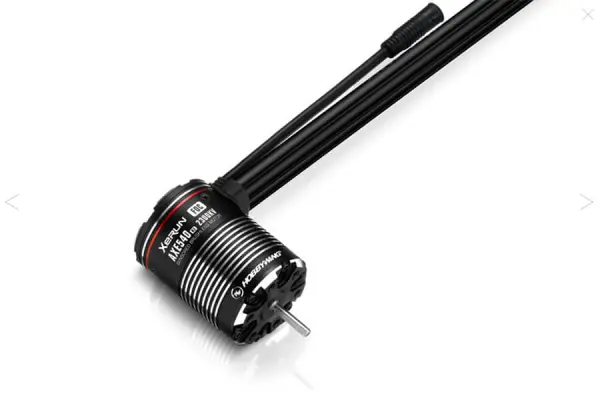

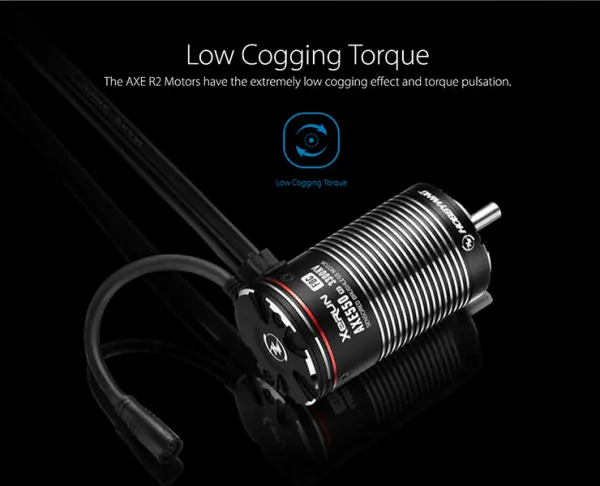

Hobbywing Xerun AXE540L 2300Kv R2 FOC Sensored Brushless Motor
Brand: Hobbywing
Part No: HW30401257
Shadow Stock: Usually ships next day
The Hobbywing Xerun AXE540L 2300Kv R2 FOC Sensored Brushless Motor (HW30401257) is a 36mm, 4-pole brushless unit intended for 1/10 scale rock crawler applications. It supports 2–3S LiPo batteries and uses a sensored FOC brushless design.
The AXE540L R2 has a 2300Kv rating, a compact 49.8mm length, and a 3.175mm output shaft, with a listed weight of 185g and a no-load current of 2.5A.
Specifications
- Scale: 1/10th
- Brushed/Brushless: Brushless (BL)
- Sensored/Sensorless: Sensored (SD)
- Pole Count: 4
- KV Rating: 2300
- LiPo Cells: 2–3S
- No-load Current: 2.5A
- O.D.: 36mm (1.42in)
- Length: 49.8mm (1.96in)
- Shaft Diameter: 3.175mm (0.125in)
- Weight: 185g
- Applications: 1/10th Rock Crawler
Secured by Stripe
HOBBYWING XERUN AXE540L 2300KV R2 FOC SENSORED B/LESS MOTORSpecifications
Type
Scale:1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters
KV Rating: 2300
LiPo Cells: 2-3S
No-load Current (A): 2.5
Size & Weight
O.D.(mm): 36(1.42in)
Length (mm): 49.8(1.96in)
Shaft Diameter (mm): 3.175(0.125in)
Weight (g): 185g
Other Parameters
Applications: 1/10th Rock Crawler
Key Info:
- Brand: Hobbywing
- Part No: HW30401257
- Barcode: 6938994419857
