Hobbywing XERun Bandit 13.5T Black G4R OBL Motor

The Hobbywing XERun Bandit 13.5T Black G4R OBL motor delivers refined performance for 1/10 outlaw stock racing. This sensored, 2‑pole brushless design is lighter, shorter and faster than the previous generation, with an 11.7% KV increase, a 2 mm reduction in length and 15 g shaved from overall weight to enhance responsiveness and efficiency on track.

An innovative, fully exposed stator core and a large open endbell maximise heat dissipation, helping the motor run cooler and more consistently over a race distance. Dual sensor ports offer flexible wiring options, while widened copper bar spacing makes soldering cleaner and easier. A high‑precision Hall sensor and balanced rotor work together to deliver smooth, linear throttle feel.

Features

• Purpose‑built for 1/10 outlaw stock racing
• Higher output: 13.5T OBL version KV increased by 11.7% over previous gen
• Lighter and shorter can for improved agility and response
• Fully exposed stator core and large open endbell for enhanced cooling

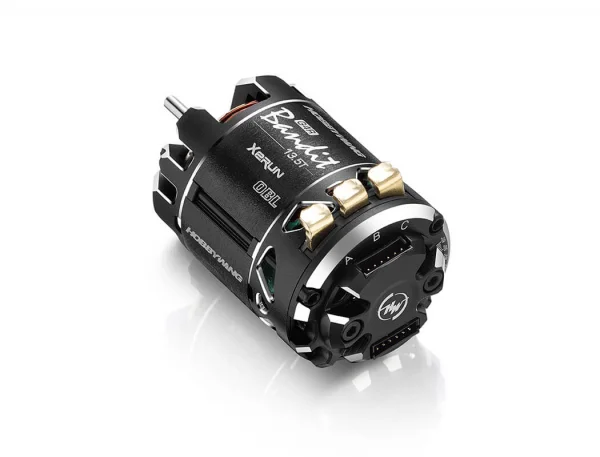

• Dual sensor interface to suit varied layouts
• Widened copper bar spacing for easier soldering
• High‑precision Hall sensor and balanced rotor for excellent linearity
• High‑performance stator core, heat‑resistant windings, precision bearings and robust solder tabs for durability

Specifications

• Scale: 1/10
• Type: Brushless (BL)
• Timing: Sensored (SD)
• Pole count: 2
• KV rating: 3800KV
• LiPo cells: 1–3S
• No‑load current: 4.4 A

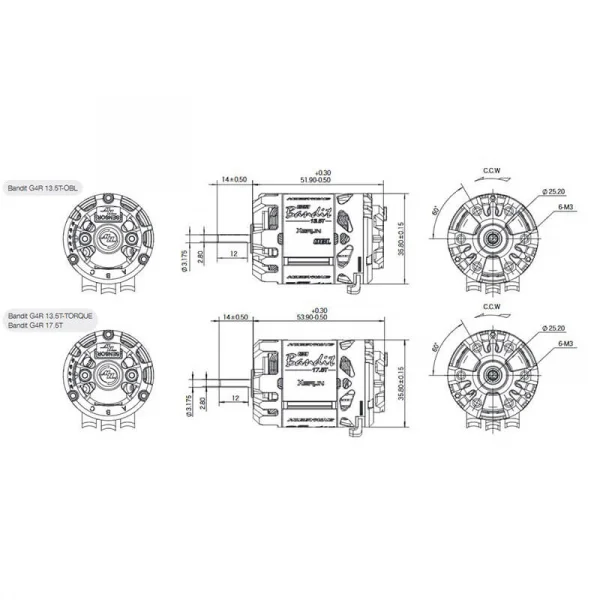

• Outer diameter: 35.8 mm
• Length: 51.9 mm
• Shaft diameter: 3.175 mm
• Weight: 172 g
• Front bearing: D9 × D4 × T4
• Rear bearing: D8 × D3 × T4
• Vehicles: 1/10 outlaw stock racing

Suggested Compatibility

• Hobbywing XERun XR10 PRO G3 ESC
