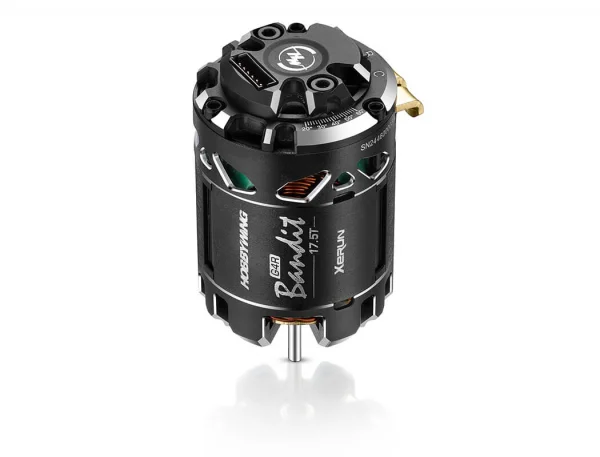

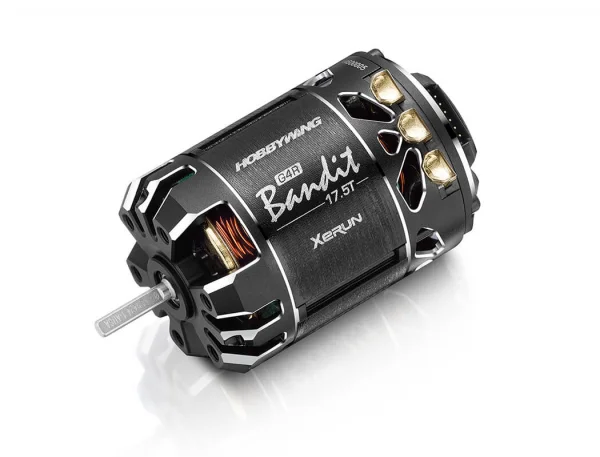

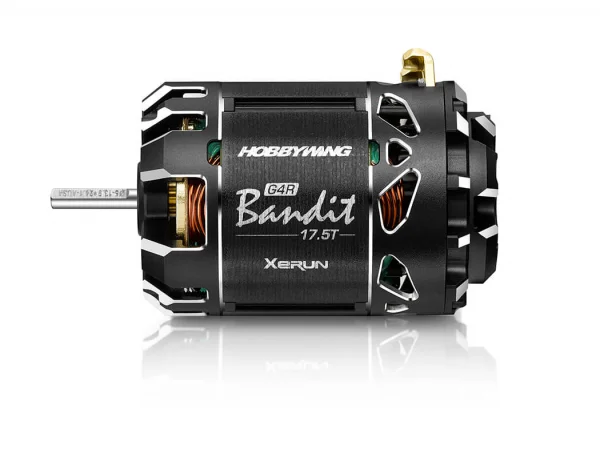

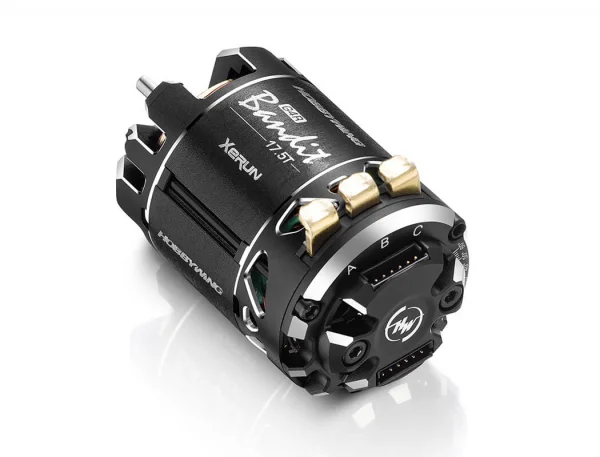

Hobbywing XERun Bandit 17.5T Black G4R Motor

The Hobbywing XERun Bandit 17.5T Black G4R Motor (part no. HW30401862) is a sensored, 2‑pole brushless unit engineered for 1/10 outlaw stock racing. Delivering a 2500KV rating and support for 1–3S LiPo, it combines smooth throttle linearity with robust construction for consistent performance on track.

An innovative, fully exposed stator core and a large open end-bell maximise airflow and heat dissipation, helping maintain stable temperatures during intense runs. Dual sensor interfaces offer flexible wiring options, while wider copper solder tabs make motor lead installation quicker and more secure. A high-precision Hall sensor and balanced rotor further enhance response and drivability, backed by quality bearings and durable materials.

Features

• Designed for 1/10 outlaw stock racing with excellent overall performance.
• Fully exposed stator core and large end opening to maximise cooling efficiency.
• Dual sensor interfaces to suit different layouts and wiring preferences.
• Wider-spaced copper solder tabs for easier, cleaner wire soldering.
• High-precision Hall sensor and balanced rotor for outstanding linearity.
• High-performance stator core, high-temperature-resistant enameled wire, precision bearings and copper solder tabs for durability.

Specifications

• Type: Sensored brushless (BL/SD)
• Turns: 17.5T
• KV Rating: 2500KV
• Pole Count: 2
• LiPo Cells: 1–3S
• No‑load Current: 4.5A
• Outer Diameter: 35.8 mm
• Length: 53.9 mm
• Shaft Diameter: 3.175 mm
• Weight: 185 g
• Front Bearing: D9 × D4 × T4
• Rear Bearing: D8 × D3 × T4

Suggested Compatibility

• ESC: Hobbywing XERun XR10 PRO G3
• Vehicles: 1/10th outlaw stock racing platforms
