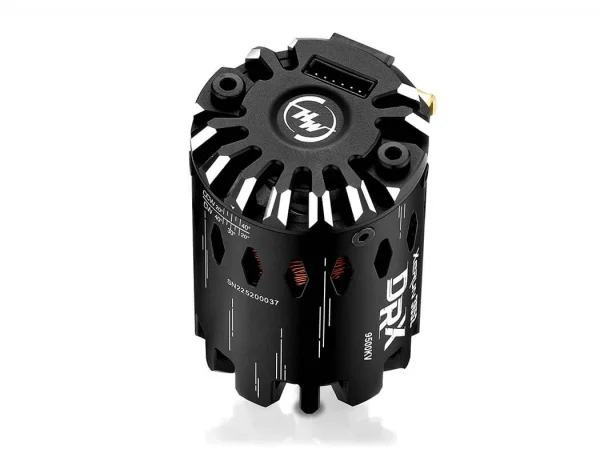

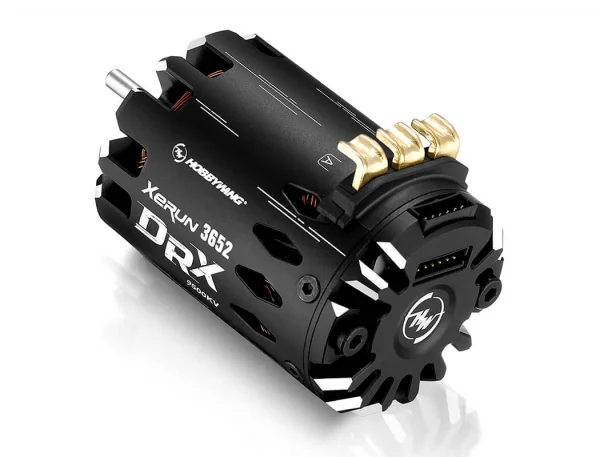

Hobbywing Xerun DRX 3652Sd 9500Kv Drag Motor

The Hobbywing Xerun DRX 3652SD 9500kV Drag Motor (HW30401062) is engineered for the unique demands of 1/10 drag racing. Its high-RPM character, fully adjustable endbell and precise timing control help extract maximum launch performance and top speed, while efficient design choices deliver strong power with reduced heat compared to comparable motors.

To withstand repeated hard launches, the rotor is encased by a specially crafted steel sleeve and supported by premium bearings. A high-strength CNC aluminium housing and robust alloy shaft add durability, and the open-can layout promotes vital airflow. Optimised UU-shaped, widened and thickened copper rails are designed to handle high current loads, and the dual-sensor layout simplifies neat, reliable wiring.

Key Features

• Approximately 6% more powerful than comparable motors
• Achieves very high RPM
• Ideal for drag racing
• Open housing design ensures necessary heat dissipation
• Dual-sensor design for optimal wiring in the car
• Widened and thickened copper rail design ensures the handling of high currents
• Easy disassembly for maintenance

Specifications

• Type: Brushless, sensored
• kV Rating: 9500kV
• No-Load Current: 8.6A
• Cells (LiPo): 2S
• Poles: 4
• Diameter: 36mm
• Length: 53mm
• Shaft Diameter: 3.175mm
• Shaft Length: 14.5mm
• Weight: 187g
• Application: 1/10 drag race

Suggested Compatibility

• 1/10 scale drag racing platforms
• 2S LiPo systems
• Setups that accept a 36mm diameter x 53mm length motor with a 3.175mm shaft and sensored/dual-sensor wiring
