Other items customers often buy with the Hobbywing Xerun V10 13.5T G5 Torque Black Motor
Description

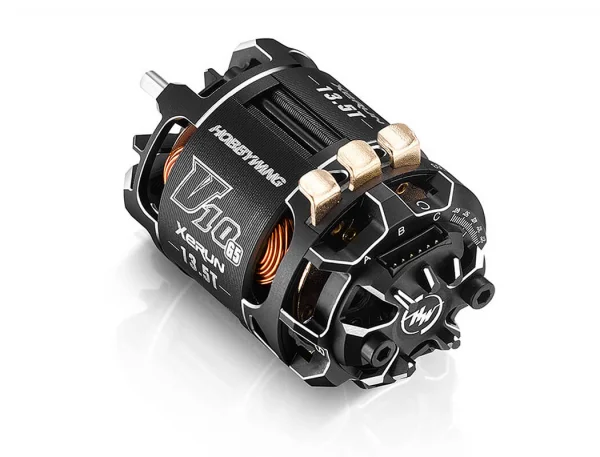

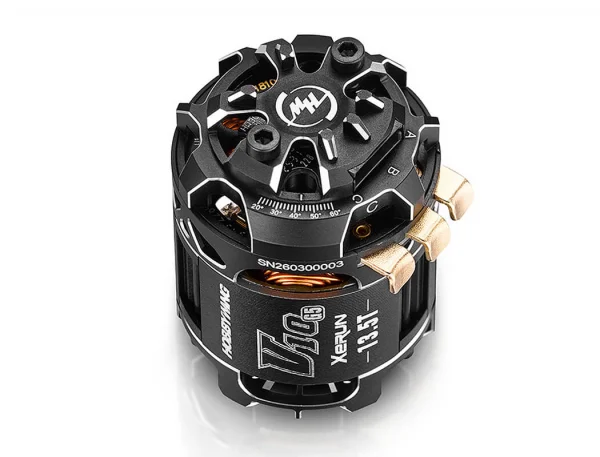

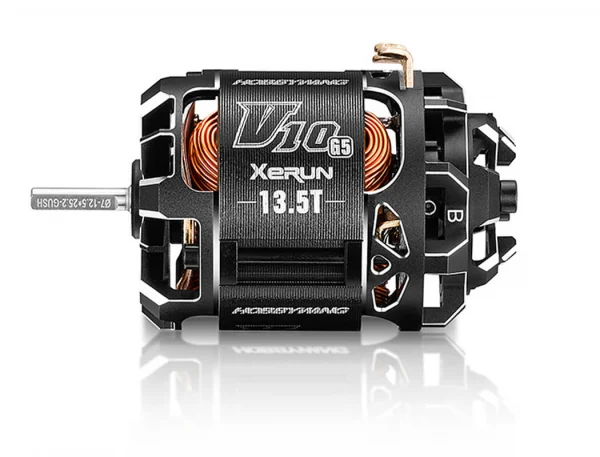

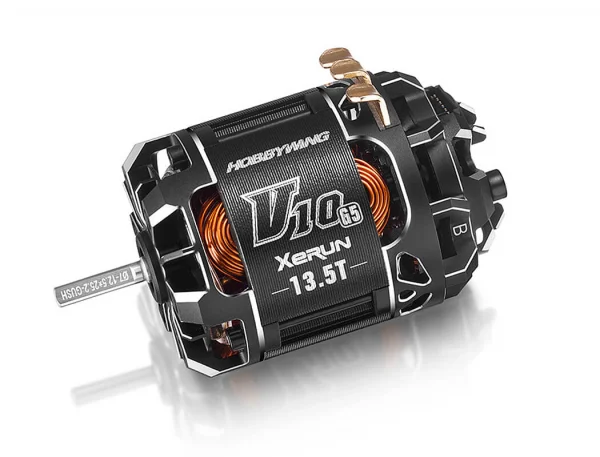

The Hobbywing Xerun V10 13.5T G5 Torque Black Motor, part number HW30401763, is a sensored brushless motor for 1/10 and 1/12 stock racing applications. It produces 3900KV and is designed for use with 1–3S LiPo batteries.
This G5 motor delivers a 3.9% increase in maximum output power and more than 4% improved efficiency compared with the V10 G4R 13.5T. Its redesigned endbell exposes more of the winding to support heat dissipation, while the patented rotor cooling design helps manage operating temperatures and maintain consistent operation.
The motor has been redesigned to reduce weight by 13g compared with the G4R version, with the internal layout moving weight towards the vehicle centreline. This arrangement is intended to support the weight distribution of a racing model without adding unnecessary mass.
Adjustable Sensor System
The timing assembly includes an angle adjustment for fine-tuning the Hall sensors. This allows the motor to be adjusted for smoother running and improved efficiency. Rotor and sensor spacing can also be altered through three settings, allowing the response and feel of the power delivery to be adjusted for the driver and track conditions.
A modular construction makes the motor easier to clean and maintain between runs. The V10 G5 is a two-pole, sensored brushless design with a 3.175mm shaft. Its black finish and compact dimensions suit the requirements of stock racing installations where motor specification, weight and sensor adjustment are important considerations.
Specifications
- Motor type: Sensored brushless
- Application: 1/10 and 1/12 stock racing
- KV rating: 3900KV
- Turn count: 13.5T
- Battery range: 1–3S LiPo
- Shaft diameter: 3.175mm
- Dimensions: 35.8mm diameter x 51.5mm length
- Weight: 138g
Secured by Stripe
Specifications
Built to be More than Just Fast!
Built from the ground up, the XeRun V10 G5 motor delivers more power and greater efficiency. It delivers a 3.9% boost in maximum output power and over 4% improvement in efficiency versus the V10 G4R 13.5T.
Excellent Heat Dissipation.
New endbell design exposes more of the winding to allow better heat dissipation. Patented rotor cooling design, Thermal efficiency has been improved to reduce overall temperatures and provide better consistency.
Optimised Weight and Centre of Gravity.Redesigned inside and out, the new-generation G5 motor is 13g lighter than the G4R, The G5 has been designed to move the weight towards the centreline of the vehicle.
Adjustable Hall Timing Accuracy.
The timing assembly introduces a new adjustment to allow further fine tuning of the sensors. This new angle adjustment means your motor will run smoother and be more efficient.
Adjustable Hall Sensing Distance.
Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery.
Designed for Easy Maintenance.
Modular design allows for quick and simple motor cleaning to allow racers to keep their motors performing at their best.
Built with Superior Materials.
The V10 G5 motor is built to excel in the harshest race conditions.
SpecificationsApplication: 1/10th & 1/12th STOCK Racing
KV: 3900KV
T Count: 13.5T
LiPo: 1-3S Lipo
Brushed/Brushless: BL
Sensored/Sensorless: SD
Shaft Diameter: Φ=3.175
Diameter/Length: Φ=35.8mm L=51.5mm
No-load Current(A): 6.0A
Poles: 2
Weight (g): 138g
Key Info:
- Brand: Hobbywing
- Part No: HW30401763
- Barcode: 6938994429405
