Description

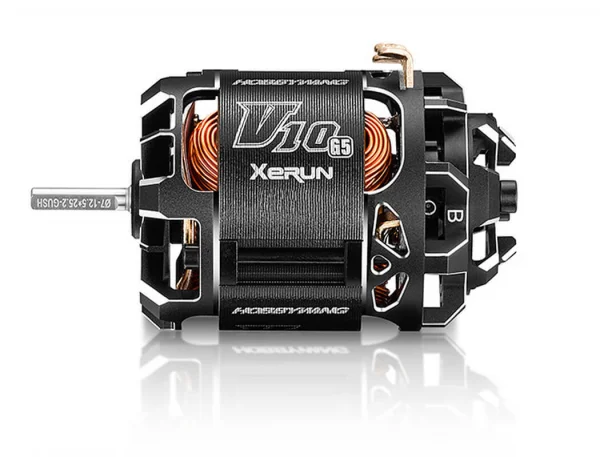

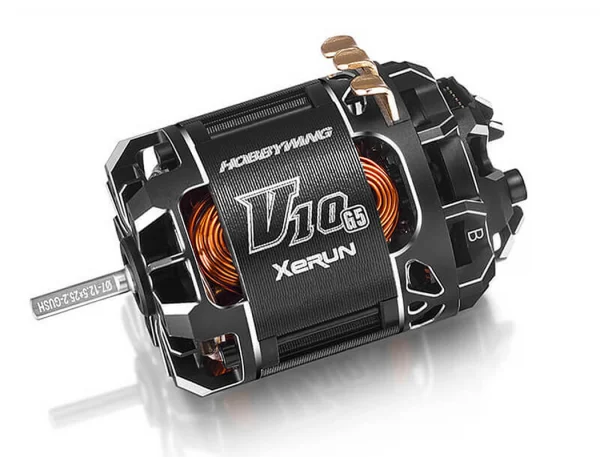

The Hobbywing XeRun V10 17.5T G5 Torque Black Motor, part number HW30401764, is a sensored brushless motor for 1/10 and 1/12 stock racing. This black motor has a 17.5-turn winding and a 3000KV rating, with support for 1–3S LiPo power systems.
The V10 G5 design provides a 3.9% increase in maximum output power and more than 4% improved efficiency compared with the V10 G4R 17.5T. Its redesigned endbell exposes more of the winding to help dissipate heat, while the patented rotor cooling design helps manage operating temperatures and maintain consistent operation.
At 13g lighter than the G4R version, the G5 motor is designed to position more of its weight towards the vehicle centreline. This supports the weight and centre-of-gravity layout used in 1/10 and 1/12 stock racing applications.
The adjustable Hall timing assembly allows fine adjustment of the sensor angle, helping the motor run more smoothly and efficiently. Rotor and sensor spacing can also be adjusted through three settings, allowing the response and feel of the power delivery to be tuned.
A modular construction allows the motor to be opened for cleaning and maintenance. The motor is brushless and sensored, with a two-pole rotor and a 3.175mm shaft diameter.
Specifications
- Application: 1/10 and 1/12 stock racing
- Motor type: Brushless, sensored
- Winding: 17.5T
- KV rating: 3000KV
- Battery range: 1–3S LiPo
- Shaft diameter: 3.175mm
- Dimensions: 35.8mm diameter x 51.5mm length
- Weight: 138g
Secured by Stripe
Specifications
Built to be More than Just Fast!
Built from the ground up, the XeRun V10 G5 motor delivers more power and greater efficiency. It delivers a 3.9% boost in maximum output power and over 4% improvement in efficiency versus the V10 G4R 17.5T.
Excellent Heat Dissipation.
New endbell design exposes more of the winding to allow better heat dissipation. Patented rotor cooling design, Thermal efficiency has been improved to reduce overall temperatures and provide better consistency.
Optimised Weight and Centre of Gravity.Redesigned inside and out, the new-generation G5 motor is 13g lighter than the G4R, The G5 has been designed to move the weight towards the centreline of the vehicle.

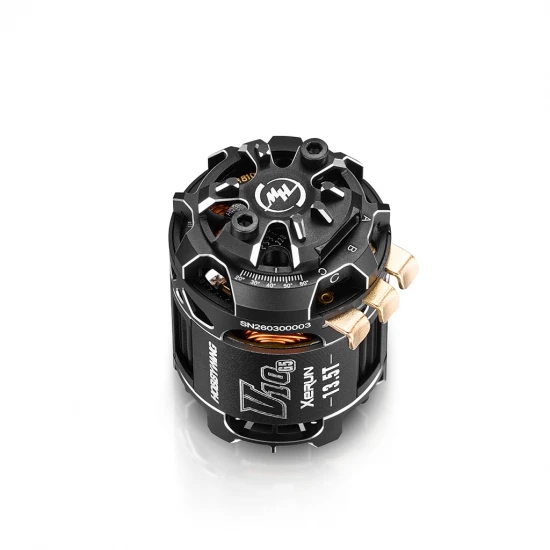

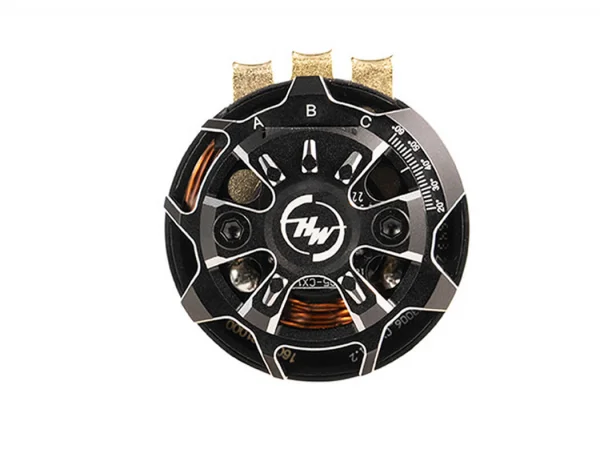

Adjustable Hall Timing Accuracy.
The timing assembly introduces a new adjustment to allow further fine tuning of the sensors. This new angle adjustment means your motor will run smoother and be more efficient.
Adjustable Hall Sensing Distance.
Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery.

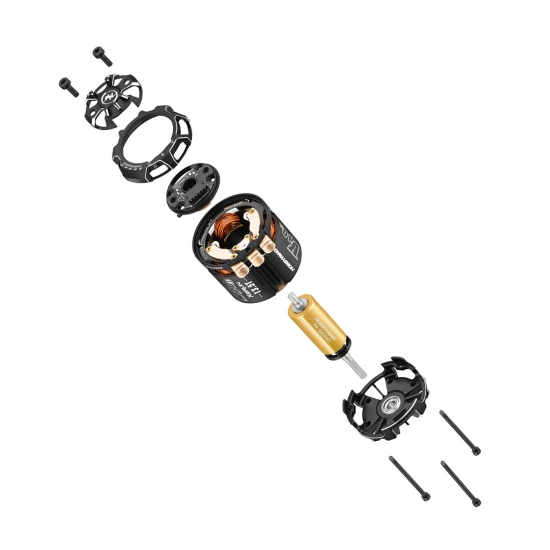

Designed for Easy Maintenance.
Modular design allows for quick and simple motor cleaning to allow racers to keep their motors performing at their best.
Built with Superior Materials.
The V10 G5 motor is built to excel in the harshest race conditions.
SpecificationsApplication: 1/10th & 1/12th STOCK Racing
KV: 3000KV
T Count: 17.5T
LiPo: 1-3S Lipo
Brushed/Brushless: BL
Sensored/Sensorless: SD
Shaft Diameter: Φ=3.175
Diameter/Length: Φ=35.8mm L=51.5mm
No-load Current(A): 5.0A
Poles: 2
Weight (g): 138g
Key Info:
- Brand: Hobbywing
- Part No: HW30401764
- Barcode: 6938994429412
