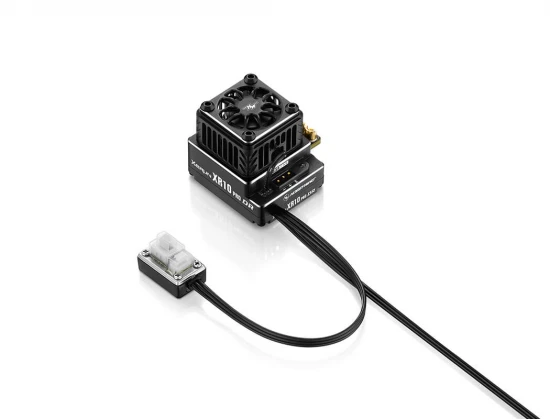

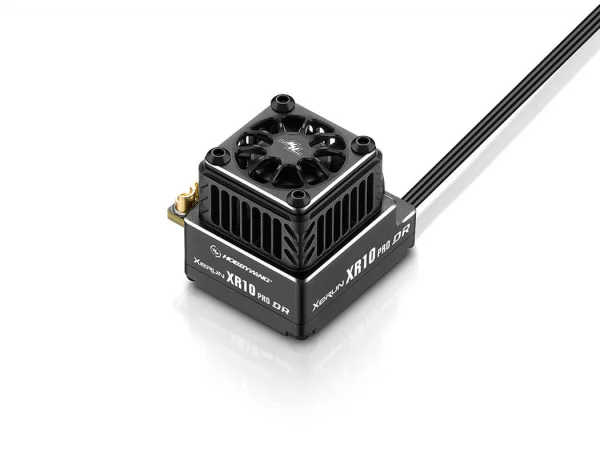

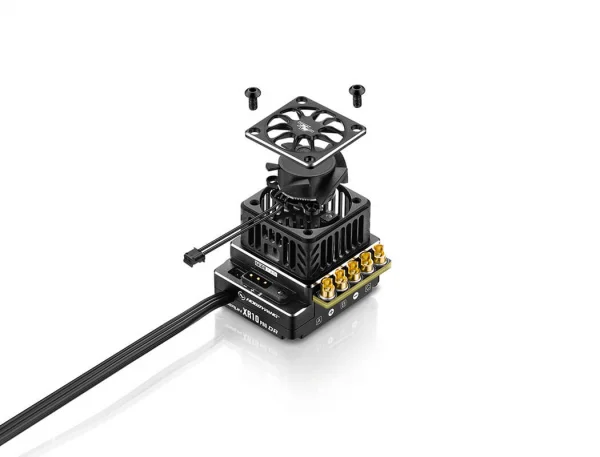

Hobbywing XERun XR 10 Pro DR Drag Race ESC (HW30112621)

The Hobbywing XERun XR 10 Pro DR Drag Race ESC (HW30112621) is a sensored brushless speed controller purpose-built for 1/10th drag racing on 2S LiPo. It provides 200A continuous and up to 1200A peak current, backed by a robust switch-mode BEC delivering 5–7.4V at 5A. Tuning and monitoring are supported via LCD G2, LCD PRO and OTA programmers, with real-time data, data logging and firmware upgrades available through a separate program port. Compact dimensions and 10AWG wiring round out a drag-focused specification.

Key Specifications

• Scale: 1/10th
• Motor Type: Brushless, Sensored
• Waterproof: No
• Continuous/Peak Current: 200A / 1200A
• Input Voltage: 2S LiPo
• BEC Output: Switch mode 5V–7.4V @ 5A
• Input Wires: Black 10AWG 200mm ×1; Black 10AWG 200mm ×1
• Output Wires: Black 10AWG 200mm ×3
• Input Connectors: No
• Output Connectors: No
• SET Button on ESC: Not supported
• Program Port: Separate
• Suitable Motors: SD BL Motors
• Vehicles: 1/10th Drag Racing
• KV Rating/T Count: XERUN 3652/3662 DRX
• Size: 37.7 × 37.2 × 33.2 mm
• Weight: 137 g (including wires & connectors)

Programming & Telemetry

• LCD G2 Program Box: Supported
• LCD PRO: Supported
• LED Program Box: Not supported
• OTA Programmer: Supported
• Data Recording (Extreme Value): Supported
• Real-time Data: Supported
• Historical Data (Graph): Supported
• Firmware Upgrade: Supported

Suggested Compatibility

• 1/10th drag racing vehicles
• 2S LiPo power systems
• Sensored brushless motors (SD BL)
• KV/T count per XERUN 3652/3662 DRX guidance
