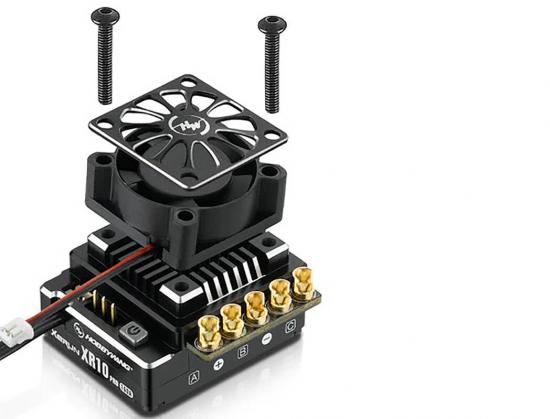

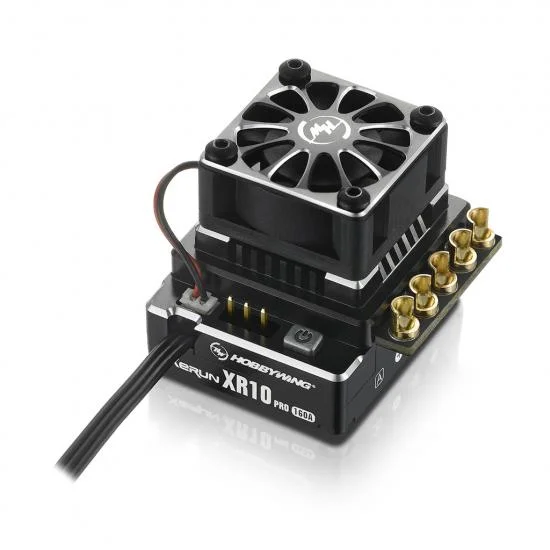

Hobbywing XERun XR10 Pro ESC - Black
Brand: Hobbywing
Part No: HW30112600
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
The Hobbywing XERun XR10 Pro ESC - Black (HW30112600) is a premium sensored brushless speed controller engineered for 1/10 scale top-level touring car, pan car and buggy racing. Combining reliable hardware with intelligent software and ten select-to-use profiles, it delivers precise throttle and brake control, robust power handling and race-proven consistency.
An aluminium case with a reticular heat sink and Hobbywing’s patented copper heat-conductive plates efficiently transfers heat from the MOSFET board to the high-performance detachable fan, creating a highly effective cooling system. The advanced electronic on/off switch is rated for over 50,000 cycles, avoiding issues common with mechanical switches.
Features
- High Power Output
- Special Design for Top Racing
- Programming / Upgrading / Data Reading Wirelessly
- Adjustable Throttle & Brake PWM Frequencies
- Efficient Heat Dissipating System
- High Current/Voltage BEC
- Separate Programming/Fan Port
- Advanced and Secure Electronic Switch
- Innovative Data-Logging Function
Programming and Data
The XR10 Pro supports wireless programming and firmware updates, and includes data logging to capture maximum ESC/motor temperature, RPM and more in real time. Analysis is available via a Hobbywing LCD program box or WiFi module after each run.
Specifications
- Scale: 1/10th
- Motor Type: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: No
- Continuous/Peak Current: 160A / 1200A
- Input: 2–3S LiPo / 4–9 cell NiMH
- BEC Output: Switch mode 6V/7.4V, 4A
- Input Wires: Black 12AWG 200mm ×2
- Output Wires: Black 12AWG 200mm ×3
- Input Connectors: None
- Output Connectors: None
- Fan Size: 25 × 25 × 10mm
- Fan Voltage Range: 5–7.4V
- WiFi Module: Supported
- Size (w/ fan & shroud): 37.5 × 30.9 × 31.6mm
- Weight (w/ wires): 95g
Suggested Compatibility
- 1/10th scale touring car racing
- 1/10th scale pan car racing
- 1/10th scale buggy racing
Secured by Stripe
HOBBYWING XERUN XR10 PRO SPEED CONTROL - BLACK
Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.
The aluminium casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.
The internal electronic switch with a lifespan of over 50000 on/off cycles completely solves the problems like stuck reed, rusted contact points, and automatic shutdown conventional mechanical switches often have.
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyse the recorded data via a the LCD program box or WiFi module after each use.
Features
- High Power Output
- Special Design for Top Racing
- Programming / Upgrading / Data reading wirelessly
- Adjustable Throttle & Brake PWM Frequencies
- Efficient Heat Dissipating System
- High current/voltage BEC
- Separate Programming/Fan Port
- Advanced and Secure Electronic Switch
- Innovative data-logging Function
Specifications
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: No
- Cont./Peak Current: 160A/1200A
- Input: 2-3S LiPo/4-9 Cell NiMH
- BEC Output: Switch Mode:6V/7.4V,4A
- Input Wires: Black-12AWG-200mm*2
- Output Wires: Black-12AWG-200mm*3
- Input Connectors: No
- Output Connectors: No
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- Size: 37.5x30.9x31.6mm(w/Fan & Fan Shroud)
- Weight: 95g (w/ Wires)
Key Info:
- Brand: Hobbywing
- Part No: HW30112600
- Barcode: 6938994408349
- Motor Type: Brushless
- LiPo Compatible: Yes
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
No it will not run a 3.5t motor
Yes, this will work with the OTA programmer
Due dates if known are below the add to cart button.
This one is recommended HW30840007
This ESC is a re-release of the original version 1 of the XR10 so this has a slightly bigger footprint and the older original firmware, the HW30112613 is the newer V4 version of the ESC
