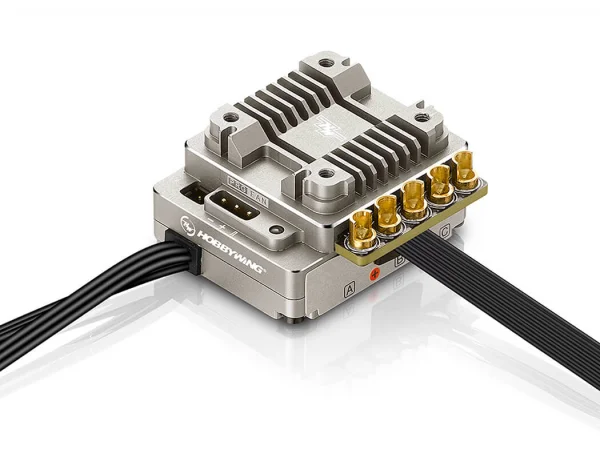

Hobbywing XErun XR10 Pro Waterproof ESC
Brand: Hobbywing
Part No: HW30112618
In Stock: Usually ships same day
The Hobbywing XeRun XR10 Pro Waterproof ESC (HW30112618) is a high-performance 160A speed controller designed for 1/10th scale top-level touring car, pan car and buggy racing. Reliable hardware is paired with intelligent software offering 9 commonly used, selectable profiles to suit a wide range of track conditions.
An aluminium case with a reticular heat sink and Hobbywing’s patented copper heat-conductive plates efficiently transfers heat from the MOSFET board, while the detachable smart stop & start cooling fan completes a robust thermal management system. Built-in data logging records key metrics such as maximum ESC/motor temperature and RPM in real time, which can be reviewed via an LCD Program Box or optional WiFi Module.
Features
- High Power Output
- Special Design for Top Racing
- Programming / Upgrading / Data Reading Wirelessly
- Adjustable Throttle & Brake PWM Frequencies
- Efficient Heat Dissipating System
- High Current/Voltage BEC
- Separate Programming/Fan Port
- IP67 All Weather Operation
- Smart Stop & Start Fan
- Innovative Data-Logging Function
Specifications
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: SD/SL (sensored/sensorless)
- Waterproof: Yes (IP67)
- Continuous/Peak Current: 160A / 1200A
- Input: 2S LiPo only
- BEC Output: Switch mode, 5V–7.4V adjustable, 5A
- Input Wires: Black, 13AWG, 200mm × 2
- Output Wires: Black, 13AWG, 200mm × 3
- Input Connectors: None
- Output Connectors: None
- Fan Size: 25.0 × 25.0 × 10.0mm
- Fan Voltage Range: 5–7.4V
- WiFi Module: Supported
- LCD Program Box: Supported
- Size (w/o fan): 37.7 × 37.2 × 19.6mm
- Weight (with wires): 95.6g
Suggested Compatibility
- 1/10th scale touring cars
- 1/10th scale pan cars
- 1/10th scale buggies
Secured by Stripe
Reliable hardware combined with intelligent software (containing 9 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.
The aluminium casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable smart stop&start cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyse the recorded data via a the LCD program box or WiFi module after each use.
Features- High Power Output
- Special Design for Top Racing
- Programming / Upgrading / Data reading wirelessly
- Adjustable Throttle & Brake PWM Frequencies
- Efficient Heat Dissipating System
- High current/voltage BEC
- Separate Programming/Fan Port
- IP67 All Weather Operation
- Smart Stop & Start Fan
- Innovative data-logging Function
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: SD/SL
- Waterproof: Yes
- Cont./Peak Current: 160A/1200A
- Input: 2S LiPo Only
- BEC Output: Switch Mode: 5V-7.4V Adustable,5A
- Input Wires: Black-13AWG-200mm*2
- Output Wires: Black-13AWG-200mm*3
- Input Connectors: No
- Output Connectors: No
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- LCD Program Box: Supported
- Size: 37.7x37.2x19.6mm (w/o Fan)
- Weight: 95.6g (w/ Wires)
Key Info:
- Brand: Hobbywing
- Part No: HW30112618
- Barcode: 6938994408691
- Motor Type: Brushless
- LiPo Compatible: Yes
