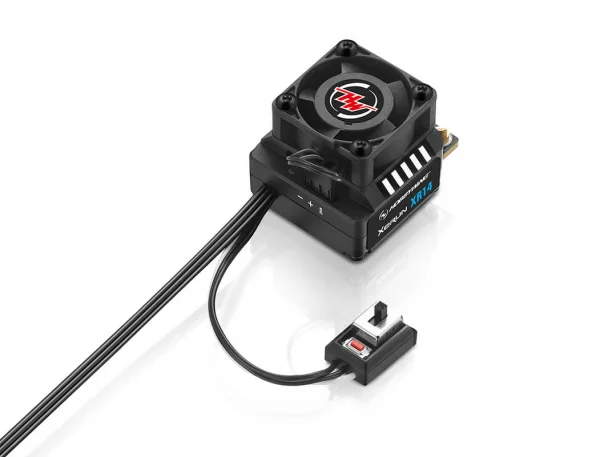

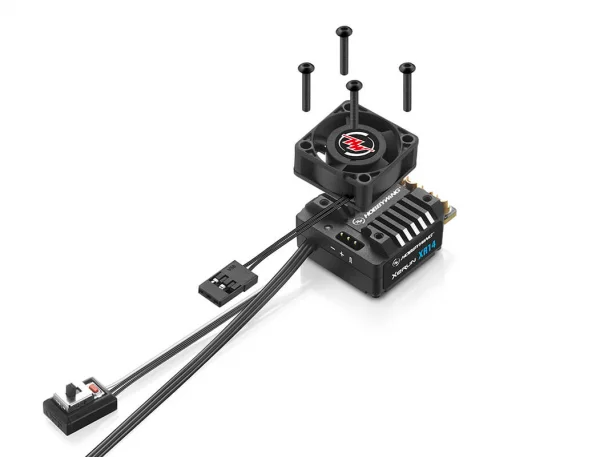

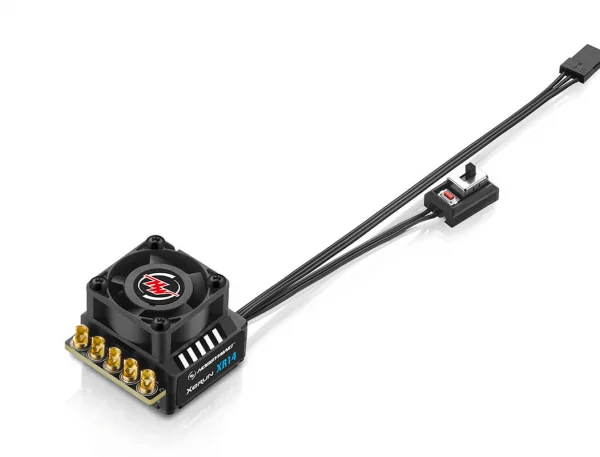

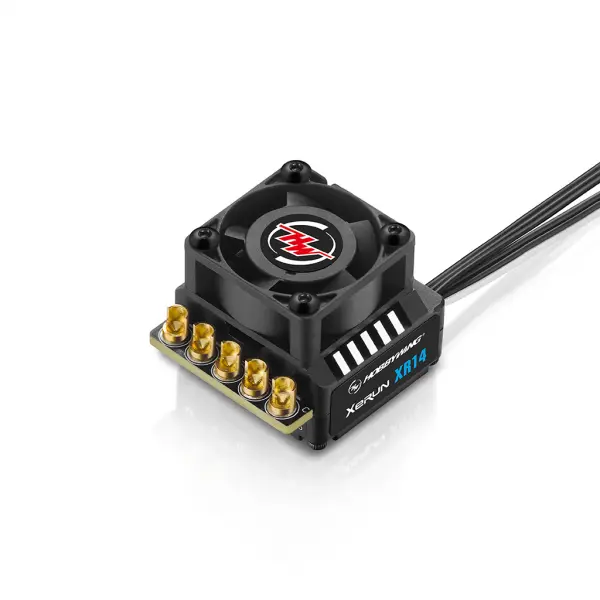

Hobbywing XERun XR14 ESC 70A 2S Sensored - HW30112622

The Hobbywing XERun XR14 ESC (HW30112622) is a compact, sensored brushless speed controller built for precise throttle feel and reliable control in small-scale racing. Delivering 70A continuous and 300A peak on 2S LiPo, it features a robust 6V/7.4V 4A switch‑mode BEC, extensive data logging, and flexible programming via LCD and OTA options.

Key Features

• Sensored brushless control; supports sensored and sensorless brushless motors
• 2S LiPo input, 70A continuous / 300A peak current
• Switch‑mode BEC: selectable 6V or 7.4V @ 4A
• Programming supported via LCD G2 Program Box, LCD PRO, and OTA Programmer
• Data logging: extreme values, real‑time data, and historical graph
• Firmware upgrade supported
• Program port shared with fan port
• Waterproof: No

Specifications

• Input wires: Black 10AWG 200mm ×1; Black 14AWG 175mm ×2
• Output wires: Black 14AWG 175mm ×3
• Input connectors: None; Output connectors: None
• Size: 35.2 × 31.3 × 28.5 mm
• Weight: 66 g (including wires)
• ESC programming via SET button: Not supported
• ESC programming via LED Program Box: Not supported
• Motors supported: Sensored/Sensorless brushless
• KV rating / T count: XERUN 2848

Suggested Compatibility

• 1/14 scale racing applications
• 1/12 and 1/10 light‑load vehicles using zero‑timing (blinky) mode
