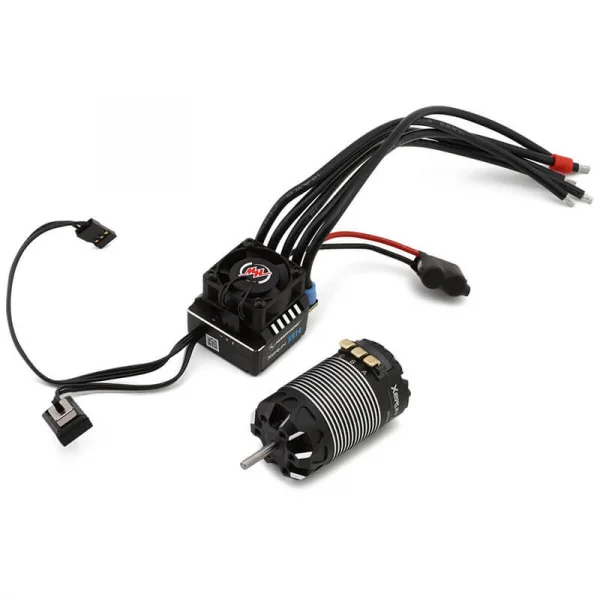

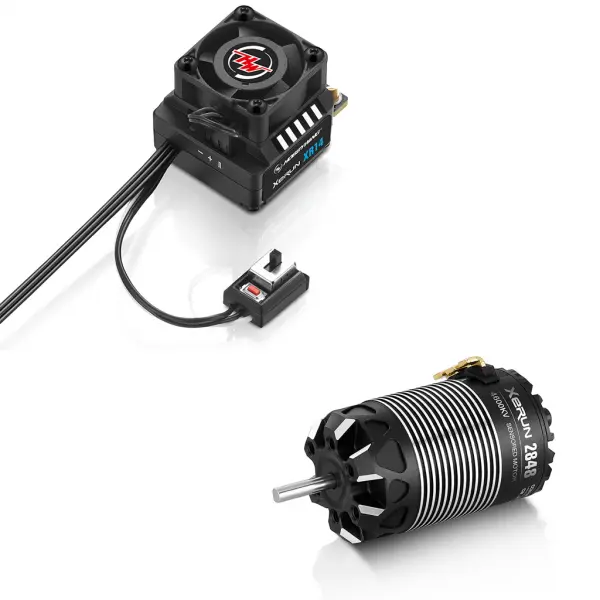

Hobbywing XERun XR14 ESC Combo With 2848Sd 4000Kv Motor
Brand: Hobbywing
Part No: HW38010609
Out Of Stock
Request Stock NotificationThe Hobbywing XERun XR14 ESC Combo with 2848SD 4000kV Motor (HW38010609) pairs a competition-grade sensored brushless speed controller with a high-efficiency four-pole motor for 1/14 scale racing. Built for precision and durability, it delivers smooth, controllable power in Blinky or Boost formats on both on-road and off-road tracks.
At the heart of the combo is the XERun XR14 ESC featuring a 70A continuous output and a full-metal heat-sink top for excellent thermal management. Twenty-six adjustable parameters—including PWM and brake frequencies, initial throttle response, softening, and boost/turbo timing—allow detailed tuning to match surface, grip and driving style. Reverse polarity protection, low-voltage cutoff, thermal safeguards and fail-safe functions add robust protection during hard runs.
The matched 2848SD 4000kV motor is designed for efficiency and longevity. Its low-temperature-rise design helps maintain consistent performance, while a four-pole rotor promotes smooth low-speed control with minimal cogging. Adjustable mechanical timing from 20–40° enables performance tailoring, and an IP5X dustproof rating helps the motor cope with challenging track conditions.
Integrated data recording accessible via the Hobbywing Link App provides actionable insights, making it easier to analyse runs and refine gearing and ESC settings for optimal lap times.
Key Features
- 70A continuous output current
- Full-metal heat sink for efficient cooling
- 26 adjustable parameters
- Dual application modes for on-road and off-road
- Reverse polarity protection
- Low-voltage cutoff and thermal protection
- Innovative softening function for power tuning
- Adjustable PWM and brake frequencies
- Four-pole motor design for smoother performance
- 2848SD motor with IP5X dustproof protection
Suggested Compatibility
- 1/14 scale on-road RC cars
- 1/14 scale off-road buggies and trucks
- Blinky or Boost racing formats
Secured by Stripe
Hobbywing Xerun XR14 Sensored Brushless ESC/2848SD Motor Combo (4000kV).
The Xerun XR14 Sensored Brushless Electronic Speed Controller (ESC) and 2848SD Motor Combo by Hobbywing delivers an unparalleled RC racing experience by combining a competition-grade ESC with a high-performance brushless motor. Designed for 1/14 scale on-road and off-road vehicles, this combo offers exceptional power, precision, and durability. Whether competing in Blinky or Boost formats, this integrated system provides everything racers need to excel on any track.
About the Xerun XR14 ESC & 2848SD Motor Exceptional Power & Cooling.
The Xerun XR14 ESC boasts a maximum continuous output current of seventy amps, ensuring consistent power delivery even under intense racing conditions. Its full-metal heat sink top is designed for optimal heat dissipation, maintaining safe operating temperatures during prolonged use. This robust cooling system provides reliability, allowing you to push your RC vehicle to its limits without the worry of overheating.
Customization Options & Reliable Protection.
With twenty-six adjustable parameters, the XR14 ESC offers unparalleled control over your RC car's performance. Key adjustments include PWM frequency, initial throttle response, softening, and boost or turbo timing. These customizable settings empower racers to fine-tune their power delivery and braking dynamics, ensuring a tailored driving experience for any racing scenario. Additionally, it features built-in reverse polarity protection to prevent damage from incorrect battery connections. Comprehensive protections such as low-voltage cutoff, thermal safeguards, and fail-safe functions ensure durability during operation. The integrated data recording function, accessible through the Hobbywing Link App, provides valuable performance insights and makes easier to analyze and improve your setup.
High-Efficiency Brushless Motor.
The included Hobbywing Xerun 2848SD Four-Pole Brushless Motor combines efficiency and durability to deliver exceptional performance. Its low-temperature rise design ensures safe and reliable operation, while adjustable mechanical timing (20-40°) enables precise calibration for diverse applications. With an IP5X dustproof rating, the motor excels in challenging track environments. Smooth low-speed performance and minimal cogging effect enhance handling, making it a perfect match for the XR14 ESC.
Features- Seventy-amp continuous output current
- Full-metal heat sink for efficient cooling
- Twenty-six adjustable parameters
- Dual application modes for on-road and off-road
- Reverse polarity protection
- Low-voltage cutoff and thermal protection
- Innovative softening function for power tuning
- Adjustable PWM and brake frequencies
- Four-pole motor design for smoother performance
- 2848SD Motor equipped with IP5X dustproof motor protection
Key Info:
- Brand: Hobbywing
- Part No: HW38010609
- Barcode: 6938994430241
