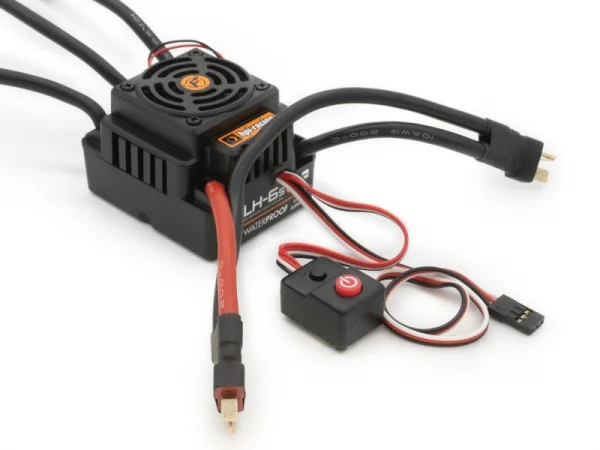

HPI Flux Elh-6S Brushless ESC (70mm Series Power Lead)

The Flux ELH-6S ESC is the perfect match for the #160354 Flux MLH-2200 1/8th scale brushless motor - it's able to pump up to 150 amps of power to the motor for amazing stunts like giant jumps, multiple back flips, colossal top speeds, and wheel-spinning sideways action!

Complete waterproof protection means you can take your truck equipped with the Flux ELH-6S into territory that would scare off other drivers: puddles, mud, beaches and more! A large fan sits on top of the case inside a protective cover to keep things cool when the weather's warm and you've been driving up to 950 amps of power (maximum boost current) through the speed controller. Extra-thick 12 gauge wires and 6.5mm bullet connectors lead to the motor, while a pair of polarized connectors let you attach any batteries equipped with T-Plug style or Star plugs. Finally, a sealed electronic push button on/off switch with a long cable let you put the button just about anywhere you want on your car or truck.

With the ability to handle twin 3S LiPo batteries (that's more than 22 volts of LiPo power!), the Flux ELH-6S ESC is the perfect way to control any 1/8th scale buggy or monster truck!

This version of the Flux ELH-6S ESC featues a 70mm Series Power Lead that is the perfect for the Savage X Flux V2!

Technical Specifications:
Input Voltage: 3-6S LiPo
Continuous Current: 150A
Burst Current: 950A
Resistance (Ω): 0.0035
Motor Limit: 4S LiPo <3000KV, 6S <2400KV
BEC: 6V/3A Switching BEC
Connector: 6.5mm Bullet
Dimensions: 59.5x48x42mm
Weight: 178g
Application: 1/8th Buggy/Monster Truck

The Flux ELH-6S ESC & Flux MLH-2200 Motor requires very powerful batteries to get the most out of them - please make sure that you use the right combination! HPI highly recommend the use of matching, identical specification high quality LiPo batteries. Using batteries with low ratings, or the use of lower quality LiPo batteries, may cause damage to your batteries and/or speed control. Using batteries below the specified ratings may void the warranty of the speed controller and/or batteries.

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

• Brand: HPI
• Part No: HPI-160353
• Barcode: 5050864028561
