HPI SD-25MGWP Servo - 22kg
HPI SD-25MGWP Servo - 22kg
HPI SD-25MGWP Servo - 22kg

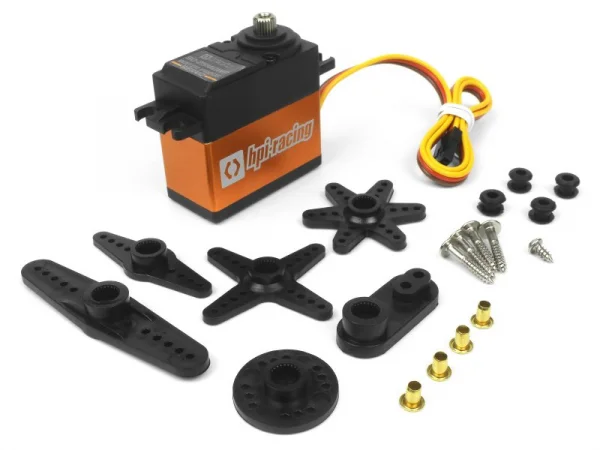

HPI SD-25MGWP 22kg Waterproof Metal Gear Servo

Brand: HPI

Part No: HPI-160546

£44.03 RRP £48.92

In Stock: Usually ships same day

Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Fits These Models (51)

Show all 51 models

Frequently Bought With

Other items customers often buy with the HPI SD-25MGWP Servo - 22kg

Savage Wheelie Bar V2 Savage Wheelie Bar V2
£23.74
HPI Bumper Set HPI Bumper Set
£9.02
HPI Sway Bar Set - Fits HPI Savage X Front And Rear HPI Sway Bar Set - Fits HPI Savage X Front And Rear
£25.64
Savage 3 Speed HD Gear Set (Third Gear 26/36T) Savage 3 Speed HD Gear Set (Third Gear 26/36T)
£23.74
HPI Flat Head Screw M3X25mm (Hex Socket/10Pcs) HPI Flat Head Screw M3X25mm (Hex Socket/10Pcs)
£2.37
Wheel Wrench (17mm) Wheel Wrench (17mm)
£3.63
HPI RS4 Sport 3 - Creator Edition HPI RS4 Sport 3 - Creator Edition
£99.00
HPI Clutch Spring Set (0.8mm, 0.9mm, 1.0mm) HPI Clutch Spring Set (0.8mm, 0.9mm, 1.0mm)
£11.39
HPI Triple Fiberglass Brake Disk Set 19X35X2.5mm HPI Triple Fiberglass Brake Disk Set 19X35X2.5mm
£12.34
HPI Brake Pad Mount/Brake Cam/Piston Set HPI Brake Pad Mount/Brake Cam/Piston Set
£7.59
HPI Throttle Servo Saver Set HPI Throttle Servo Saver Set
£22.79
Pirate Ball Bearing 6x10x3 Rubber Shielded (4) Pirate Ball Bearing 6x10x3 Rubber Shielded (4)
£8.26

Description

The HPI SD-25MGWP Servo – 22kg (part HPI-160546) is a waterproof, metal-geared high-torque servo built for bashers and racers who need reliable performance in rain, snow and puddles. Running on 6.0–7.4V, it pairs swift transit speeds with robust torque in a compact 40×40×20mm main case and 25T spline.

Key Features

  • Water-proof metal gear servo
  • Operating voltage: 6.0–7.4V
  • 6V: Speed: 0.13 sec/60°, Torque: 22kg-cm
  • 7.4V: Speed: 0.11 sec/60°, Torque: 25kg-cm
  • Servo spline: 25T
  • Dimensions: Main case 40x40x20.0mm (excluding mounting tabs, servo spline, & cable outlet)
  • Mounting tab hole centres: 49x10mm
  • Weight: 74g (excluding servo horn)

Important Note For Wet Use

  • Ensure all electronics are water-resistant/waterproof or fully enclosed before running in wet conditions.
  • ESC cooling fans are not water-resistant; disconnect before wet use and allow to dry fully before reconnecting.
  • Lubricate exposed metal drivetrain parts (bearings, outdrives, diff shafts) before wet running.
  • Motors are not intended for submerged use and may be damaged if used under water.
  • After wet running, rinse with plain water and re-lubricate metal drivetrain parts; remove corrosive residues like saltwater.
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

HPI SD-25MGWP Servo - 22kg Manuals & Guides

Specifications

#160546 - HPI SD-25MGWP SERVO (WATER-PROOF/6.0V/22KG/METAL GEARED)

This water-proof metal gear servo is ideal for bashers and racers looking for a tough and durable servo that can be used in wet conditions (e.g. rain, snow, puddles).

Features:
Operating Voltage: 6.0-7.4V
6V: Speed: 0.13 sec/60 degrees, Torque: 22kg-cm
7.4V: Speed: 0.11 sec/60 degrees, Torque: 25kg-cm
Servo Spline: 25T

Dimensions:
Main case: 40x40x20.0mm (excluding mounting tabs, servo spline, & cable outlet)
Mounting tab hole centres: 49x10mm

Weight: 74g (excluding servo horn)

NOTE: Before driving in wet conditions, make sure that all electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.



Key Info:
  • Brand: HPI
  • Part No: HPI-160546
  • Barcode: 5050864031783
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
