HS1100WP High Voltage Waterproof Giant Servo

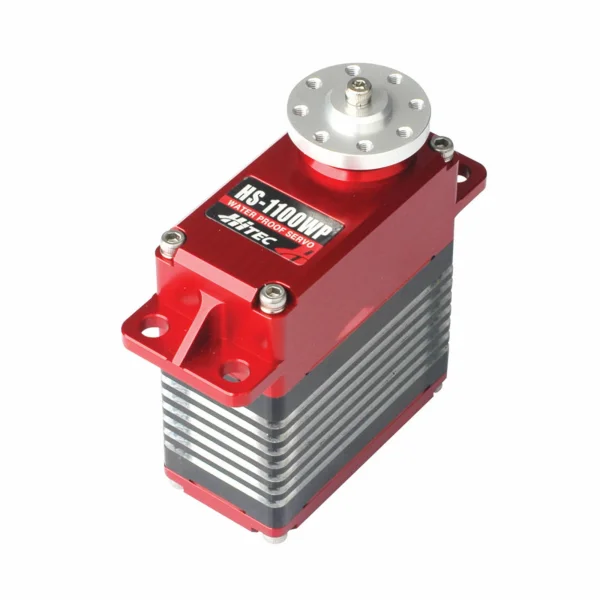

The Hitec HS1100WP High Voltage Waterproof Giant Servo (part number 2222360) is engineered for demanding control tasks where durability and environmental protection are essential. This ultra giant servo couples IP67-rated sealing with a robust, chromate plated aluminium case and steel gears supported by quad ball bearings for smooth, consistent operation.

A non-programmable, high-response digital amplifier with MOSFET drive and industrial-grade digital circuitry ensures precise control, while a long-life semi indirect potentiometer is rated for up to one million cycles. EMI-shielded cases help minimise interference, and the 5‑pole carbon brushed motor provides dependable power delivery. With 14.8V (4‑cell LiPo) capability, the HS1100WP is built to perform in tough conditions.

Key Features

• IP67 protection: dust-tight and protected against immersion between 15 cm and 1 m
• Long life semi indirect potentiometer (1M cycles)
• High-response digital amplifier with MOSFET drive and industrial digital circuitry
• EMI-shielded cases
• Chromate plated aluminium case for added durability
• Durable steel gears with quad ball bearings
• 5-pole carbon brushed motor
• 14.8V 4-cell LiPo capability
• Servo size: Ultra Giant

Weights & Dimensions

• Weight: 363 g (12.8 oz)
• Shipping weight: 0.41 kg (0.90 lbs)
• Length: 64 mm (2.52 in)
• Width: 33 mm (1.3 in)
• Height: 73 mm (2.87 in)
