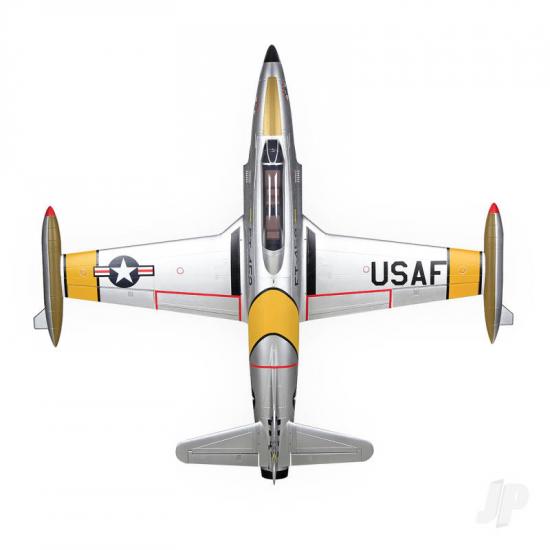

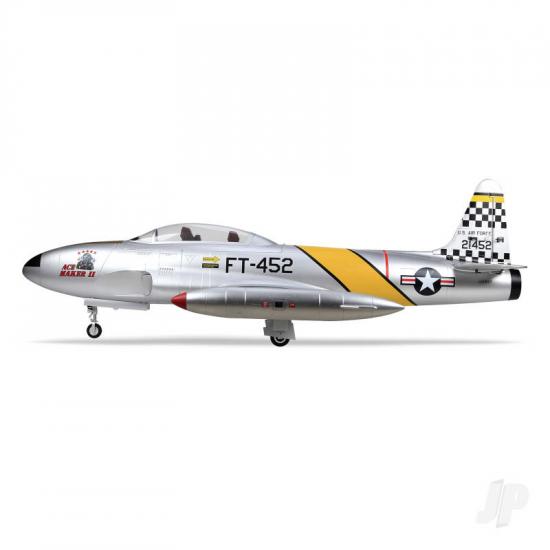

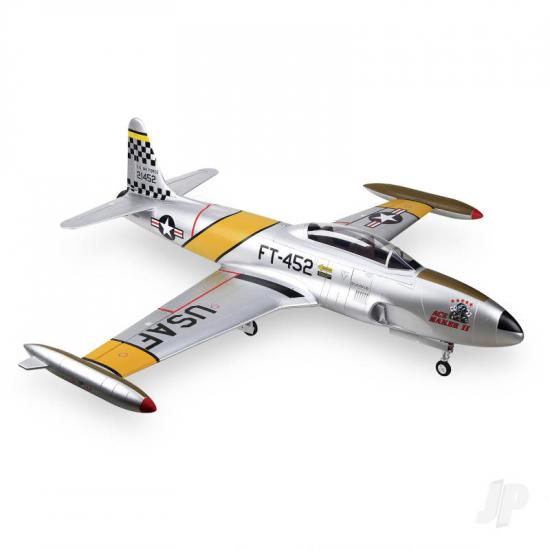

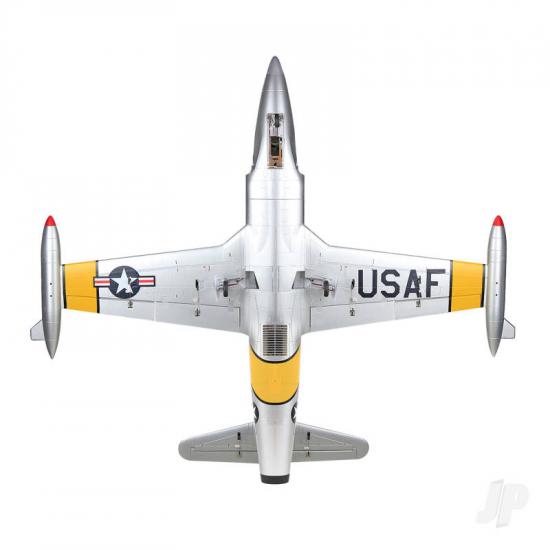

HSD Jets T-33 120mm EDF 12S Foam Jet, Yellow Ribbon (PNP)

Specification

Wingspan:
2018mm
79.4in

Length:
1800mm
70.9in

Take Off Weight:
7.5kg
16.5lbs

Cruising Speed:
150~180 Km/h

Flying Time:3~5mins

Main Wing Area:
56.5dm²

Loading of Airfoil Surface:
132.8g/dm²

Main Material:
35 times the import of aeromodelling EPO

Body Surface Treatment:
Matte environmental water-borne paint & decals

Experience Level:
Intermediate

PNP Assembly Difficulty:
Intermediate, 30 mins

Minimum Age:
14+

Working Temperature:
0°C ~ 40°C

R/C Channel:
7-Ch (Selective configuration)

Control System:

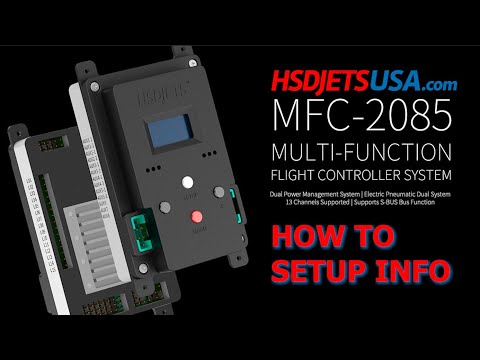

MFC-2085

Motor:
5268 - 640kV (Inner rotor)

EDF:
S-EDF120

ESC:
Hobbywing 160A

Power Battery:
6s 22.2V 5200mAh 45C LiPo x2 (Selective configuration)

Receiver Battery:
2s 7.4V 2200~3200mAh LiPo x2 (Selective configuration)

Servo:
12g x 4 / 25g x 7 (Metal gear digital)

Landing Gear:
All metal hydraulic simulation electronic retractable landing gear

Brake Function:
Yes

LED Lighting System:
Yes

Aileron:
Yes

Flaps:
Yes

Horizontal Tail:
Yes

Vertical Tail:
Yes

Reinforced Gyro:
Selective Configuration

Packaging:
Inner box & Outer box (with marks) 52.56 x 21.3 x 16.93in

Centre of Gravity:
180mm leading edge of main wing

HSD Jets T-33 120mm EDF 12S Foam Jet, Yellow Ribbon (PNP) Key Features:

• Light and resilient 35 times EPO airframe.
• Outstanding mould quality and scale detailing.
• Includes MFC-2085 integrated electronic control system.
• Ready in a day! Minimal assembly time.
• Wing-mounted connector blocks for aileron, flap and light wiring.
• Pre-finished (painted and decorated) airframe components.
• Refined and powerful 120mm 10-blade fan.
• Up to 5-minute flight times.
• Fully equipped with scale LED lighting.
• Main wheels equipped with electromagnetic braking.
• High strength, 4-point, metal, dual control horns.
• Industry leading packaging aids storage and prevents transport damage.

What's in the Box:

• 1x Pre-painted and finished two-part EPO fuselage moulding.
• 1x Pre-painted and finished EPO wing set.
• 1x Pre-painted and finished EPO tailplane set.
• 1x Pre-painted and finished EPO fin.
• 1x Pre-painted and finished EPO tip tank set.
• 1x Pre-installed, all metal, oleo style electric retractable undercarriage with brakes.
• 1x Pre-installed aluminium wheel set with durable rubber tyres.
• 1x Pre-installed 5268-640KV brushless outrunner.
• 1x Pre-installed 120mm 10-blade fan unit.
• 11x Pre-installed metal gear digital servos.
• 1x Pre-installed Hobbywing 160A brushless ESC.
• 1x Pre-fitted LED navigation light system.
• 1x Pre-installed Integrated control system (ICS).
• 1x Comprehensive instruction manual.
• 1x Comprehensive ICS instruction manual.

Needed to Complete:

• 1x 7-channel transmitter and receiver combo.
• 2x 6S 22.2V 5200mAh 45C LiPo with AS150 connector.
• 2x 2S 7.4V 2200 – 3200mAh LiPo with XT60 connector.

HSD Jets T-33 120mm EDF 12S Foam Jet, Yellow Ribbon (PNP) Tech Specs:

• Approx. Flying Weight: kg / 16.5lbs
• Shipping Weight: 11.60kg / 25.58lbs
• Product Length: 1,800mm / 70.9in
• Product Wingspan: 2,018mm / 79.4in
• Product Wing Area: 57dm2 / 875.75in2

• Completion Level: PNP
• Experience Level: Advanced
• Colour: Silver
• Material: EPO
• Power Source: Electric
