Hudy Set Up Station And Set Up Tools With Carrying Bag - 1:10 Off-Road Cars

• Set-up Set for all 1/10 off-road cars
• Includes all tools for complete geometry adjustment
• Highest precision & superior quality
• Unmatched value
• Must have for every racer
• All components made by HUDY in Europe
• All components are machined from lightweight aircraft aluminum
• Original & traditional design
• HUDY the set-up tools pioneer & industry leader

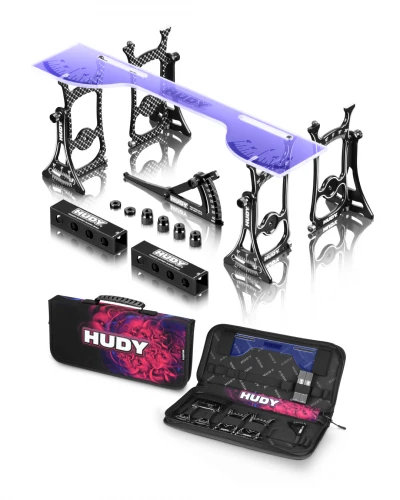

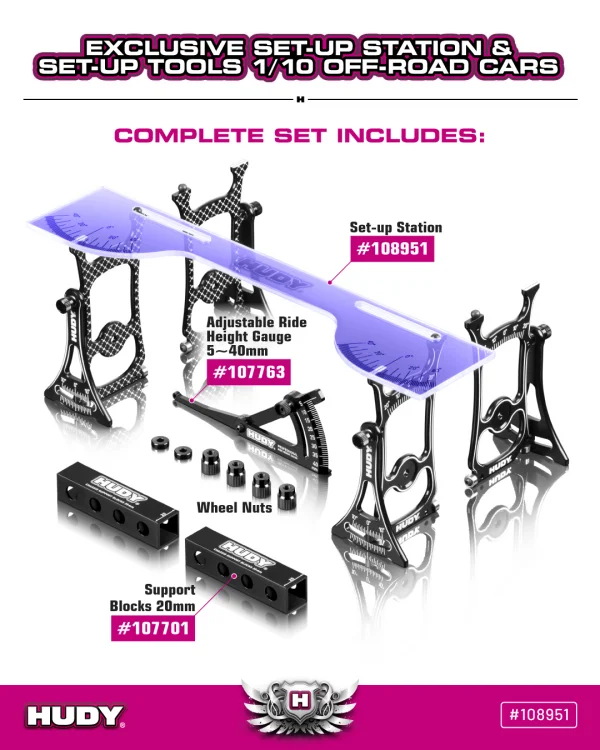

HUDY Set-up Toolset for all 1/10 Off-Road cars includes all necessary tools & accessories for complete set-up & geometry adjustment. The Set-up Toolset includes:
- Set-up Station
- Wheel Nuts
- Triangle Nuts
- Alu Shims 4mm
- Upside Measure Plate for 2WD & 4WD
- Support Blocks 20mm
- Adjustable Ride Height Gauge 5-40mm
- Carrying Bag
- Set-up Book

Adjustment Capabilities:
- Toe
- Camber
- Camber Rise
- Steering
- Droop
- Caster
- Ride Height
#108901 - HUDY Set-up Station 1/10 Off-Road:
The Set-up Station is one of the most essential accessories and a must have tool for every racer. Having the correct car set-up is one of the most important factors in winning races and that is why HUDY Set-up Stations are used by racers of all levels, from local club competitors to World champions.

The Set-up Station includes aluminum assembly nuts for quick and straight-forward "one screw" assembly for each corner. The 12 high-precision ball-bearings ensure backlash-free & wobble-free operation and ultra-precise set-up adjustments.
The Set-up Station is used to adjust: toe, camber, caster, camber rise and steering throw symmetry.
The Set-up Station stands are CNC-machined from high-grade Swiss 7075 T6 aluminum, black coated and laser engraved from both sides. The upside measure plate used for toe & steering adjustments is CNC-machined from tough acrylic plastic and features printed scratch resistant scales.
The Set-up Stations created by HUDY have been the industry standard since early 90’s and are the most popular set-up tools in the RC world.

#108033 – Alu Set-Up Station Triangle:
Alu set-up triangle for alu HUDY set-up systems. The triangle is CNC-machined, and has been engraved with the HUDY logo and scale.

#107763 – Adjustable Ride Height Gauge 5-40mm:
Fully adjustable professional ride height gauge for easy and fast ride height adjustment by 1° increments in a total range of 5-40mm.

Extremely durable and wear resistant with compact size and lightweight design. Black coated.

CNC-machined from premium-quality aluminum the gauge is ultra-precise and super accurate with tight tolerances, precise laser-etched markings and solid construction.

#107701 – Support Blocks 20mm:
The chassis droop gauge support blocks are to be used with 1/8 and 1/10 cars. They come with 2 pieces in a set, and allows adjustment of front/rear droop when used together with the appropriate droop gauges.
The blocks are CNC-machined, and made of high-quality lightweight duraluminum. They feature an elox-coating for smooth, long-lasting finish, and are engraved with the HUDY logo.

#108940 – HUDY Upside Measure Plate for 1/10 Off-Road 2WD & 4WD
Upside measure plate to be used together with the set-up system for 1/10 off-road cars.

#109360 – HUDY Alu Nut for 1/10 Touring Set-up System
CNC-machined aluminum nuts for quick and easy use with the 1/10 touring set-up system stands.

#108060 – HUDY Triangle Nuts
CNC-machined aluminum nuts for use with Alu Set-up System stands. Allows for quick & easy assembly and disassembly. Knurled surface provides easy grip.

#108928 – HUDY Alu Adj. Shim for 1/10 Off-Road Alu Set-Up
Aluminum shim fits on the rear wheel axle, and the set-up system leans against the shim. For use with XRAY XB4 or any off-road car on which the set-up system cannot be inserted on the non-threaded part. The set-up system will then sit properly on the threaded area of rear wheel axles only. Set of 2.

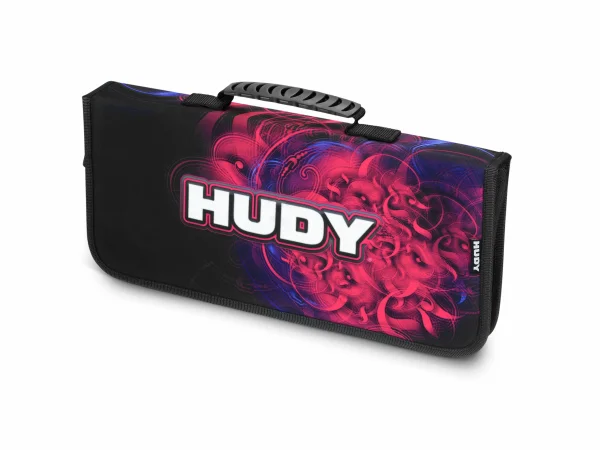

#199241 – HUDY Carrying Bag

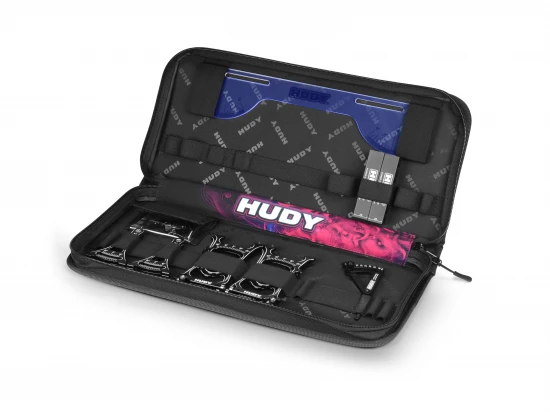

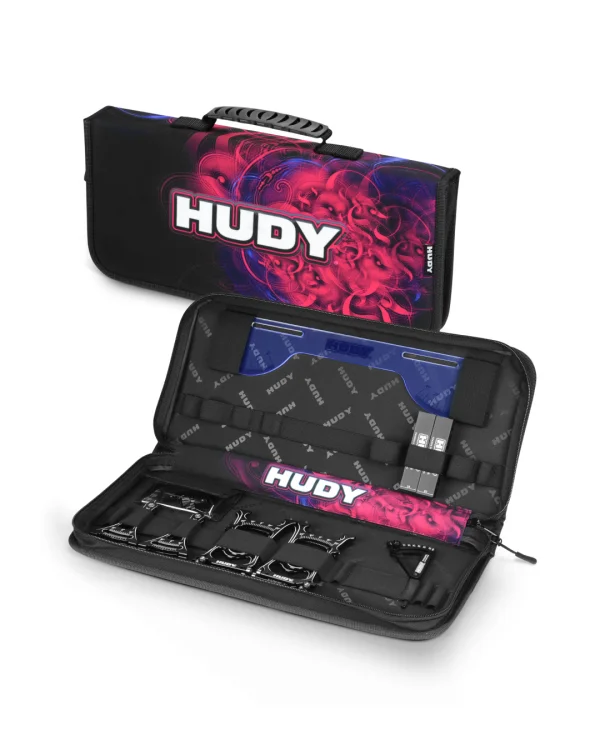

The complete Set-up Set comes in a stylish Carrying Bag that accommodates all the individual components and is perfect for storage, organization and transport of all the Set-up tools, with additional space for several optional accessories that can be added to the set.
All the Set-up Set components are CNC-machined & made by HUDY in Europe from premium lightweight aircraft aluminum and are black coated for increased life span.
The complete Set-up Set is very small, lightweight and of highest quality & precision. HUDY has been the pioneer of the Set-up Tools since early ‘90s and the vast experiences were converted into this complete Set-up Set that covers all the set-up needs, and as such, is a must have for every RC car racer.
This universal Set-up Set will fit all standard 1/10 electric off-road cars.

Optional Set-up Tools:
Although the Set-up Set includes all necessary tools & accessories for complete geometry adjustment, the Carrying Bag can fit several additional specialized Set-up accessories. These optional tools supplement the standard set and may be purchased separately.

#181030 - HUDY Turnbuckle Wrench 3mm
Precision 3mm turnbuckle wrench designed exclusively by HUDY from special self-developed, world-reknown HUDY Spring Steel™ to ensure maximum strength, durability, and long life. This turnbuckle wrench is additionally hardened to provide unmatched life span.

#107880 – HUDY Balancing Tools
Having perfect side-to-side balance is extremely important for the handling and performance of any R/C car. The HUDY Chassis Balancing Tool is the perfect simple tool for quick & easy chassis balancing. Many modern R/C race cars feature predrilled holes on the bottom of the chassis, at the front and rear along the chassis center line. If your car does not, it is easy to drill 2 holes in the chassis.
The balancing tool may even be used for off-road cars; to compensate for the increased suspension downtravel you can raise the height of the Balancing Tools by putting them atop HUDY Chassis Droop Gauge Support Blocks # 123456. Then use additional weights to perfectly balance your car.

#108970 – HUDY Set-up Wheels
Unique hexagon style aluminum set-up wheels for 1/10 off-road simulate the different sizes of 1/10 off-road tires. Each type of tire - carpet, astro, dirt or foam can have a different diameter and these set-up wheels have multiple heights to match the style of tire being used.

Suspension set-up, ride height adjustment and checking tweak using standard rubber tires that are not perfectly round can result in inconsistent measurements. When checking and setting up suspension geometry, it is important to eliminate as many variables as possible and have all four corners of the vehicle positioned at the desired height each time. The alu set-up wheels are one of the most important and basic set-up tools when performing a professional car adjustment.

The 1/10 off-road set-up wheels allow for precise and repeatable set-up adjustments and tweak correction, eliminating set-up errors that can occur when using standard off-road tires during measurements. Precision-machined to exacting tolerances, each alu wheel in a set is perfectly matched.

Fits all standard 2WD and 4WD off-road cars 1/10. Does not fit truck, truggy and short course.

CNC-machined from premium-quality aluminum, black coated and laser engraved.

#107761 - HUDY Adjustable Camber Gauge 80mm
Fully adjustable professional camber gauge for easy and fast camber adjustment by 1° increments in a total range of 5°~10°.

CNC-machined from premium-quality aluminum the gauge is ultra-precise and super accurate with tight tolerances, precise laser-etched markings and solid construction.

Extremely durable and wear resistant with compact size and lightweight design. Black coated.

HUDY Adjustable Camber Gauge is available in two size alternatives 80mm and 110mm to choose from for all various RC car scales.

#107740 – HUDY Adjustable Ride Height Gauge 14-20mm
High-quality, easy to use adjustable ride height gauge measures the 1/10 off-road ride height, particularly in racing where a lower ride height is used.

The gauge twists by 1mm increments to increase or decrease the height in a range of 14-20mm. The gauge is super small and lightweight, allowing easy storage & transport.

CNC machined from premium Swiss 7075 T6 aluminum, black color coated, with a laser-engraved scale.

#107783 – HUDY Droop Gauge 70-140mm
Professional droop gauge to check the droop of the suspension downtravel in range 70~140mm. Great for quick and instant droop check directly on ready-to-race car with no other set-up equipment needed.

The gauge is inserted on the nut that holds the shock on the shock tower and using the ruler on the gauge measure the distance to the center of the screw that mounts the shock absorber to the suspension arm. To adjust the droop adjust the downstop screws as needed or adjust the length of the shock absorbers.
The gauge has scale engraved on both sides for quick check on both left and right side.

CNC-machined from premium-quality aluminum, black coated and laser engraved with a precision scale. Compatible with all 1/8 and 1/10 off-road cars. A must have tool for every serious racer.

#107742 – HUDY Ride Height Gauge 20-30mm
High-quality, easy to use adjustable ride height gauge measures 1/10 and 1/8 off-road ride height.

The gauge twists by 1mm increments to increase or decrease the height in a range of 20-30mm. The gauge is super small and lightweight, allowing for easy storage & transport.

CNC machined from premium Swiss 7075 T6 aluminum, black color coated, with a laser-engraved scale.

#108840 – HUDY Upside Measure Plate for 1/10 Truck, Truggy & Short Course
Spare upside measure plate for set-up systems for 1/8 off-road cars.

Fits also 1/10 off-road set-up system which are used for 1/10 Short Course, 1/10 Truck and 1/10 Truggy.


Key Info:

• Brand: Hudy
• Part No: DY108951
• Barcode: 8581701089515
• Type: Setup Systems
