Hudy Set Up Station And Set Up Tools With Carrying Bag - 1:10 And 1:12 Pan Cars

• Set-up Set for 1/10 & 1/12 Pan Cars
• Includes all tools for complete geometry adjustment
• Highest precision & superior quality
• Unmatched value
• Must have for every racer
• All components made by HUDY in Europe
• All components are machined from lightweight aircraft aluminum
• Original & traditional design

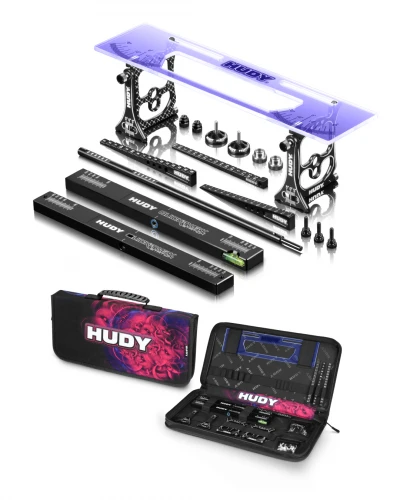

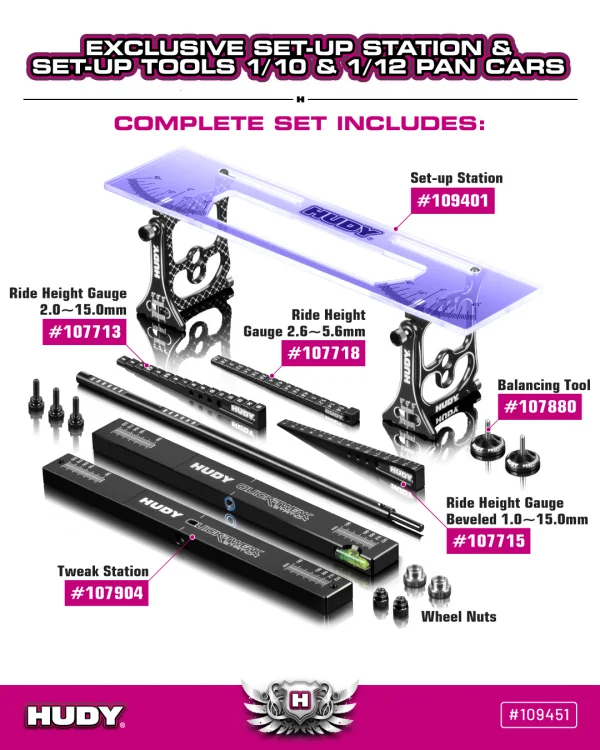

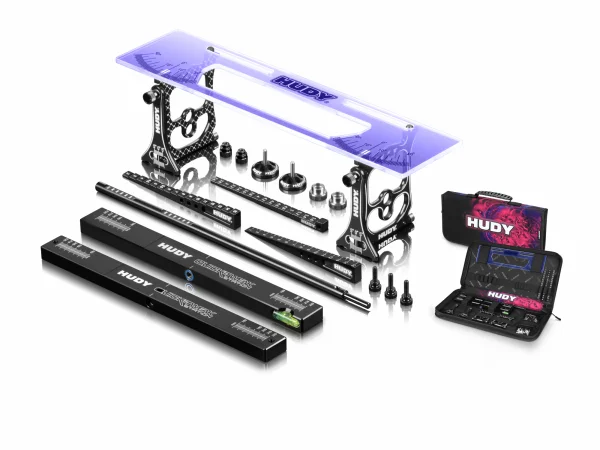

• HUDY the set-up tools pioneer & industry leader HUDY Set-up Toolset for all 1/10 & 1/12 Pan Cars includes all necessary tools & accessories for complete set-up & geometry adjustment. The Set-up Toolset includes:
- Set-up Station
- Quick Tweak Station
- Pan Car Ride Height Gauge 2.6~5.6mm
- Ride Height Gauge 2.0~15.0mm
- Carrying Bag


Adjustment Capabilities:
- Toe
- Camber
- Steering
- Droop
- Caster
- Ride Height
- Tweak
#109401 - HUDY Set-up Station 1/10 & 1/12 Pan Car
The Set-up Station is one of the most essential accessories and a must have tool for every racer. Having the correct car set-up is one of the most important factors in winning races and that is why HUDY Set-up Stations are used by racers of all levels, from local club competitors to World champions.

The Set-up Station includes aluminum assembly nuts for quick and straight-forward "one screw" assembly for each corner. The 6 high-precision ball-bearings ensure backlash-free & wobble-free operation and ultra-precise set-up adjustments.
The Set-up Station is used to adjust: toe, camber, caster, camber rise and steering throw symmetry.
The Set-up Station stands are CNC-machined from high-grade Swiss 7075 T6 aluminum, black coated and laser engraved from both sides. The upside measure plate used for toe & steering adjustments is CNC-machined from tough acrylic plastic and features printed scratch resistant scales.
The Set-up Stations created by HUDY have been the industry standard since early 90’s and are the most popular set-up tools in the RC world.

#107904 – HUDY Tweak Station 1/10 Touring:
The Quick-Tweak Station is a responsive instrument with exceptional sensitivity to detect even small amounts of tweak. The Tweak Station will quickly identify and help to correct tweak on a car to ensure proper and consistent handling.
Rugged and lightweight adjustable aluminum base plates feature threaded support feet for quick & easy leveling. Strategically milled-out cavities in the base plates make the HUDY Quick Tweak Station much lighter and both left and right sides are identically weighted for a perfect balance.
The aluminum base plates are installed on a lightweight center shaft using precise ball-bearings to ensure perfect wobble-free operation. The center shaft features an engraved scale to help adjust the position of the base plates for different wheelbases.

#109340 - Upside Measure Plate for 1/10 Touring Cars
Is used together with the set-up station to set toe as well as steering throw. Laser engraved and made in durable plastic material.

#107713 – Ride Height Gauge 2.0~15.0mm
Traditional stepped Chassis Ride Height Gauge for adjustment of front & rear ride height between 2.0~15mm by 1mm increments. Great optional tool when looking for a wider adjustment range and when 1mm increments are sufficient for the adjustment.

#107715 - Ride Height Gauge 1.0~15.0mm
Traditional beveled Chassis Ride Height Gauge measures front & rear ride height in the range of 1.0~15mm by 0.5mm increments. Great optional tool when looking for a larger adjustment range and when 0.5mm increments are sufficient for the adjustment.

#107718 - Ride Height Gauge Stepped For 1/10 & 1/12 Pan Cars
Highly-accurate precision stepped ride height gauge for checking the ride height of 1/10 & 1/12 pan cars. Stepped surfaces in the 2.6-5.6mm range have 0.2mm increments for fine adjustment. CNC-machined, premium-quality lightweight duraluminum is black elox-coating for smooth, long-lasting finish and stylish look. Laser engraved with HUDY logo and scale

#107880 – HUDY Chassis Balancing Tools
Simple, yet very effective, Chassis Balancing Tools are used for a perfect side-to-side balance check & adjustment.

#107950 - Alu Adjustable Feet for Quick Tweak Station (3)
Adjustable feet for the Quick-Tweak Station #107904.

#108060 - Alu Set-up System Nut (4)
CNC-machined alu. nuts for use with Alu Set-up System stands. Allows for quick & easy assembly and disassembly. Knurled surface provides easy grip.

#109425 - Alu 1/10 & 1/12 Set-Up Wheel Axle Adapter (2)
Wheel axle adapter for 1/10 & 1/12 set-up system. Set of 2.

#109460 - Alu Nut M3 for 1/10 & 1/12 Pan Car Set-up System (2)

CNC-machined alu nuts for quick and easy use with the 1/10 & 1/12 pan car set-up system stands.

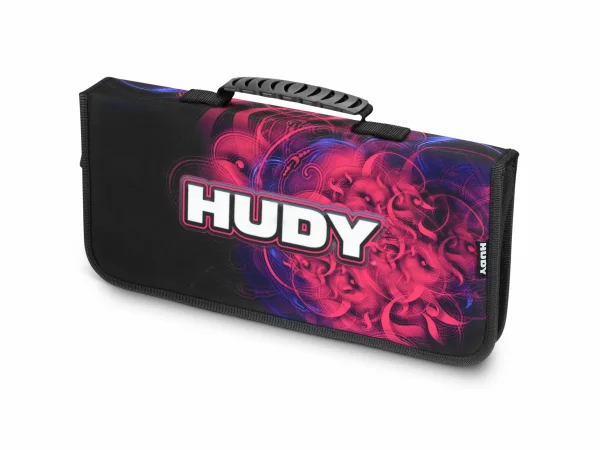

#199221 – HUDY Carrying Bag

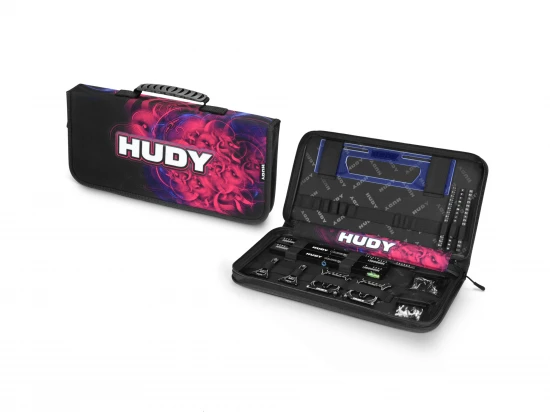

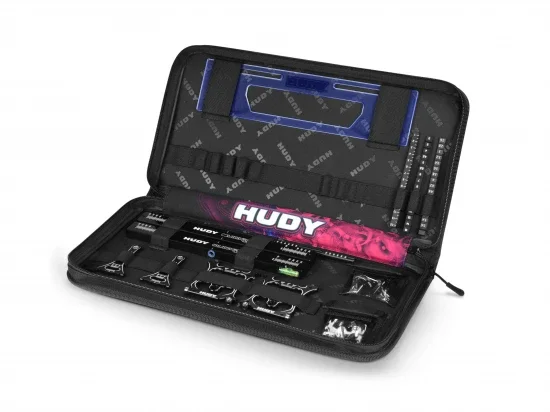

The complete Set-up Set comes in a stylish Carrying Bag that accommodates all the individual components and is perfect for storage, organization and transport of all the Set-up tools, with additional space for several optional accessories that can be added to the set.

All the Set-up Set components are CNC-machined & made by HUDY in Europe from premium lightweight aircraft aluminum and are black coated for increased life span.

The complete Set-up Set is very small, lightweight and of highest quality & precision. HUDY has been the pioneer of the Set-up Tools since early ‘90s and the vast experiences were converted into this complete Set-up Set that covers all the set-up needs, and as such, is a must have for every RC car racer.

This universal Set-up Set will fit all standard 1/10 and 1/12 pan cars.
Optional Set-up Tools:

Although the Set-up Set includes all necessary tools & accessories for complete geometry adjustment, the Carrying Bag can fit several additional specialized Set-up accessories. These optional tools supplement the standard set and may be purchased separately.

#107714 – HUDY Ultra-Fine Chassis Droop Gauge
The Chassis Droop Gauge provides very precise adjustment of front & rear droop. The ultra-fine gauge covers the most frequently used droop settings in a range of 4.0-6.6mm by 0.2mm increments.

#107716 – HUDY Ultra-Fine Chassis Ride Height Gauge
The Chassis Ride Height Gauge provides very precise measurement of front & rear ride height. The ultra-fine gauge covers the most frequently used ride height settings in a range of 3.8-8mm by 0.2mm increments.

#107761 – Camber Gauge
Fully adjustable Camber Gauge is great for a quick camber check without need for the entire Set-up Station. The camber gauge indicates a measurement range from -5°~10° by 1mm increments.

#109470 – HUDY Set-up Wheels 1/12 Pan Cars:
The Set-up Wheels are essential accessories for precise & repeatable Set-up adjustments and tweak corrections. The Set-up wheels eliminate the errors inherent when using rubber or foam tires that are never perfectly round, have different weights and diameters. Precision CNC-machined from premium-quality aluminum to exacting tolerances, each alu set-up wheel in a set is perfectly matched.


Key Info:

• Brand: Hudy
• Part No: DY109451
• Barcode: 8581701094519
• Type: Setup Systems
