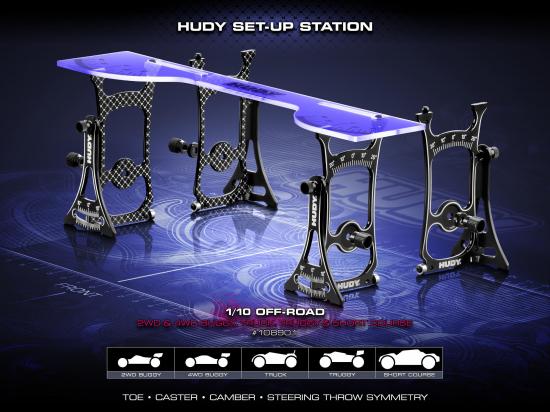

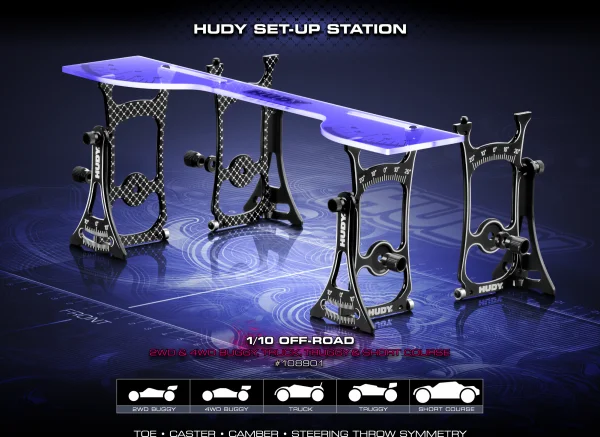

Hudy Set-up Station for 1/10 Off-Road Cars

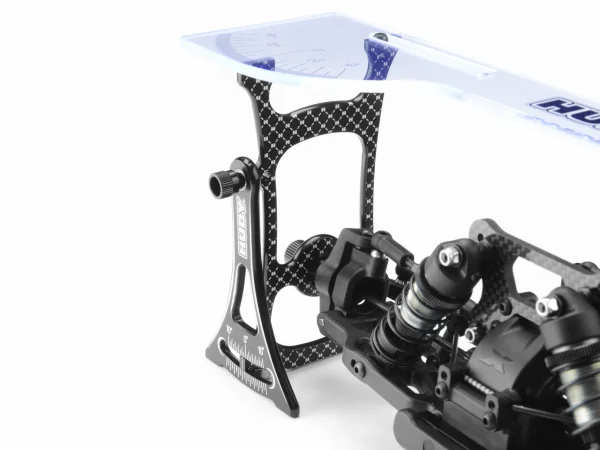

The HUDY Set-up Station for all 1/10 off-road cars is a vital set-up tool used for a complete suspension geometry adjustment. The Set-up Station is used to measure and adjust the front & rear toe, caster, camber, camber gain and steering throw symmetry.

HUDY Set-up Stations have become an industry standard after more than 30 years as the most popular set-up tools in the RC world. Having the correct car setup is one of the most important factors in winning races and that is why HUDY Set-up Stations are used by the World Champions.

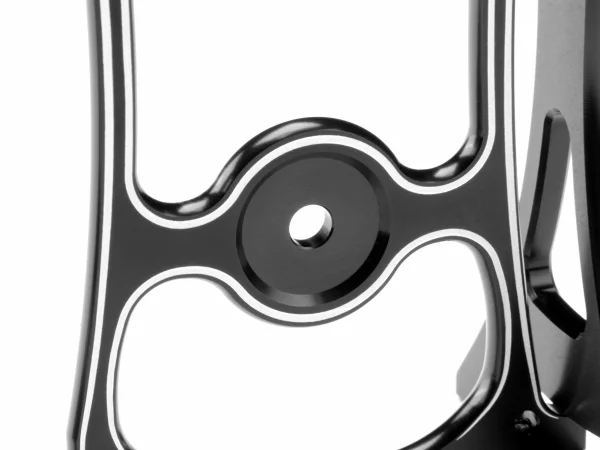

The stands are CNC-machined from high-grade Swiss 7075 T6 aluminum, black coated and laser engraved from both sides. The upside measure plate used for toe/steering adjustment is CNC-machined from tough acrylic plastic and features printed scratch resistant scales.

The Set-up Station includes aluminum assembly nuts for quick and straight-forward "one screw" assembly. The 12 high-precision ball-bearings ensure backlash-free & wobble-free operation and ultra-precise set-up adjustments.

The entire system is very small, light, and well-designed for easy transport to the track.

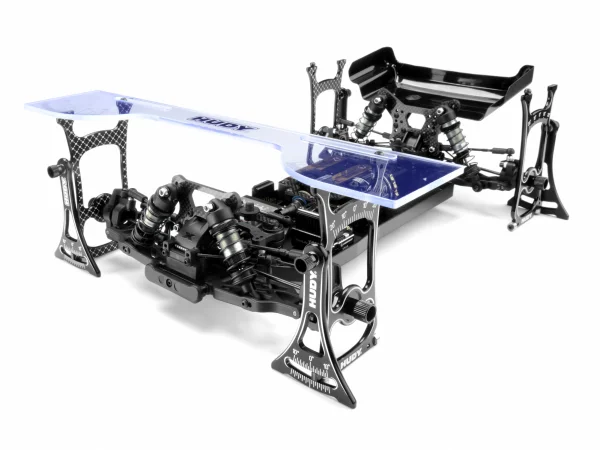

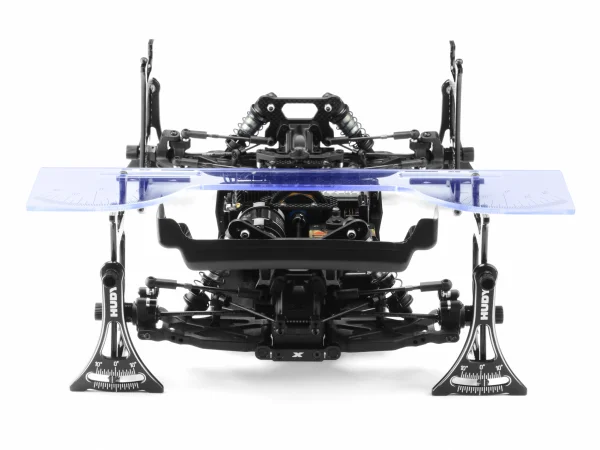

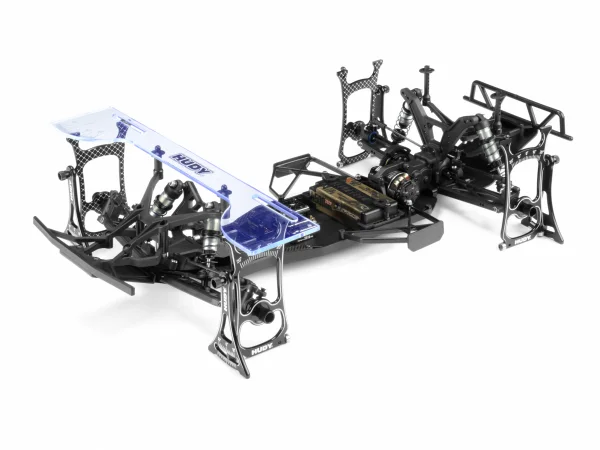

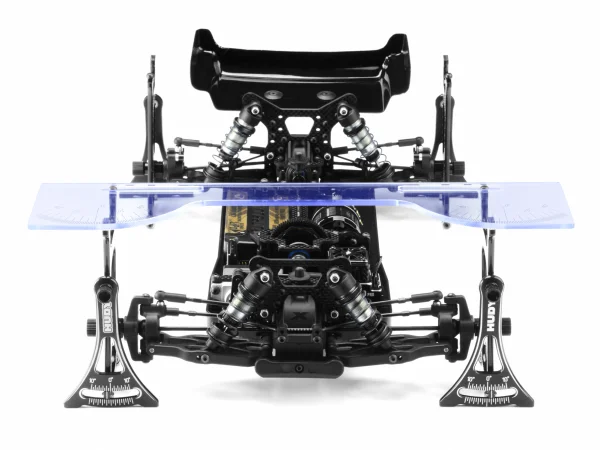

This universal Set-up Station fits all standard 1/10 off-road 2WD and 4WD cars. The included Upside Measure Plate in the #108901 Set-up Station fits all standard 1/10 off-road 2WD and 4WD cars. To use this Set-up Station on 1/10 off-road stadium truck, truggy and short course vehicles, the optional #108840 - Upside Measure Plate must be used.


Set-up Station is used for measurement and adjustment of:

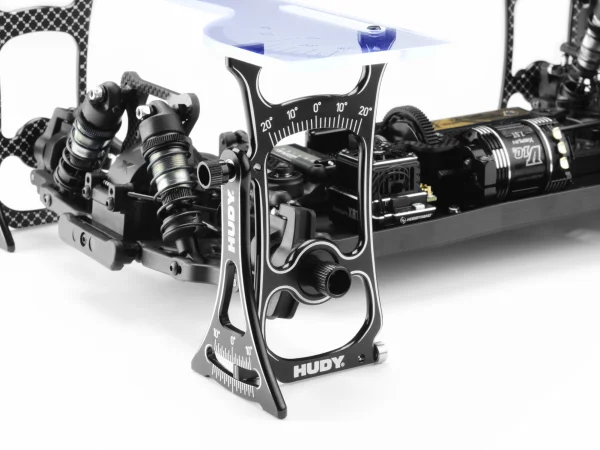

- Camber & camber gain
- Caster
- Front and rear toe
- Steering throw symmetry

Main features:
- Must-have set-up tool for a complete suspension geometry adjustment
- Quick and straight-forward "one screw" assembly/disassembly
- Backlash-free, wobble-free mounting
- Fully ball-bearing equipped set-up stands (12 high-precision ball-bearings)
- Ultra-smooth, ultra-precise movement and operation
- CNC-machined from high-grade premium Swiss 7075 T6 aluminum
- CNC-machined upside measure plate form tough acrylic plastic

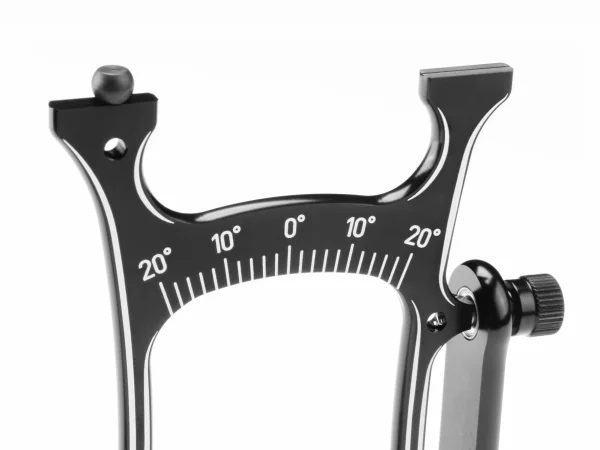

- All components have prevision engraving for instant & reliable readings
- Carrying box with foam inserts for safe storage & transportation
- High-quality, super precision & long life
- Industry standard for set-up tools since 1992

Includes:

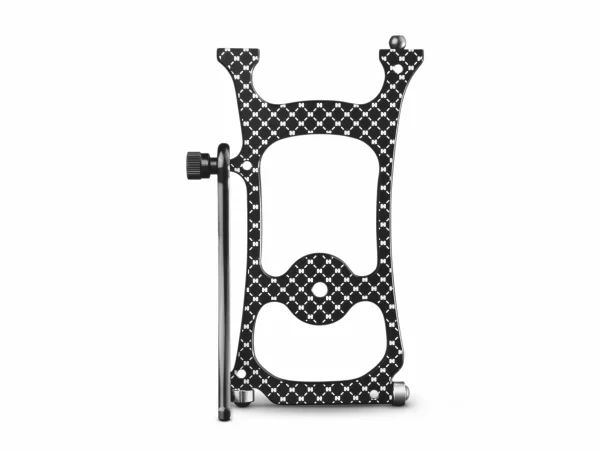

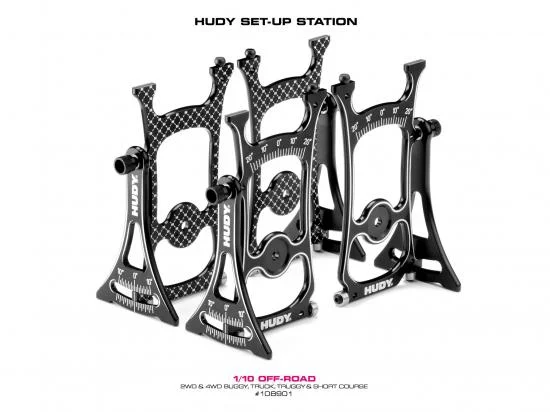

- 4 set-up stands with installed ball-bearings
- 4 camber gauges (triangular) with installed ball-bearing
- 4 assembly nuts
- 4 wheel nuts
- 2 alu shims (5x11.8x4mm) to be used depending on the offset
- 1 acrylic upside measure plate
- Set-up Book
- Carrying box with foam inserts for smart & safe storage and transportation


Key Info:

• Brand: Hudy
• Part No: DY108901
• Barcode: 8581701089010
• Type: Setup Systems
