Description

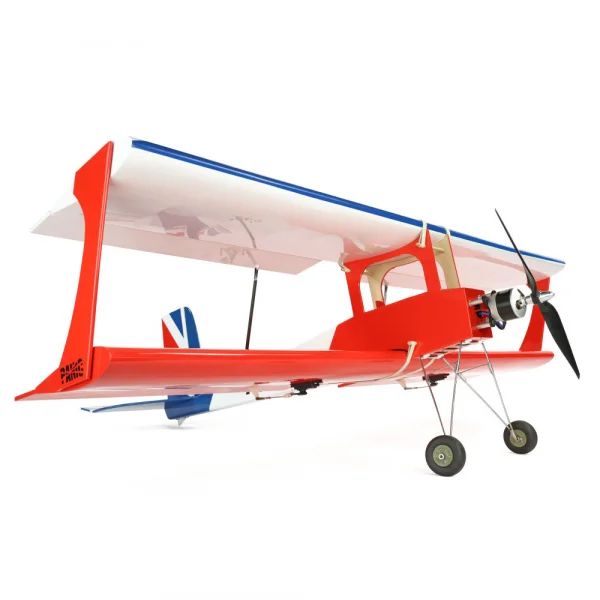

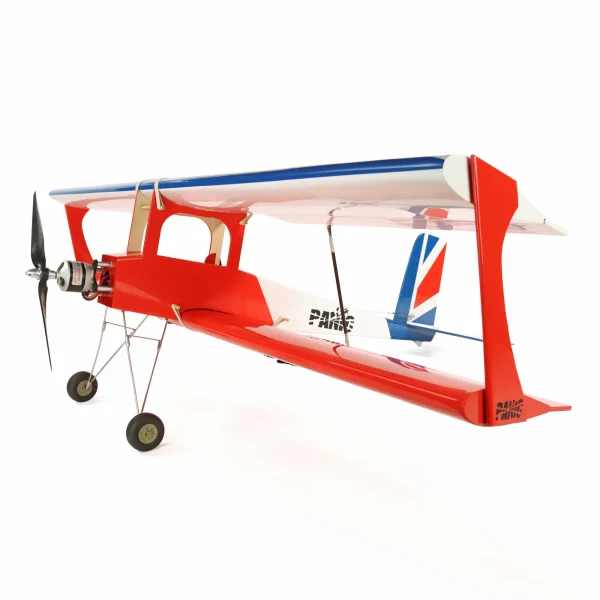

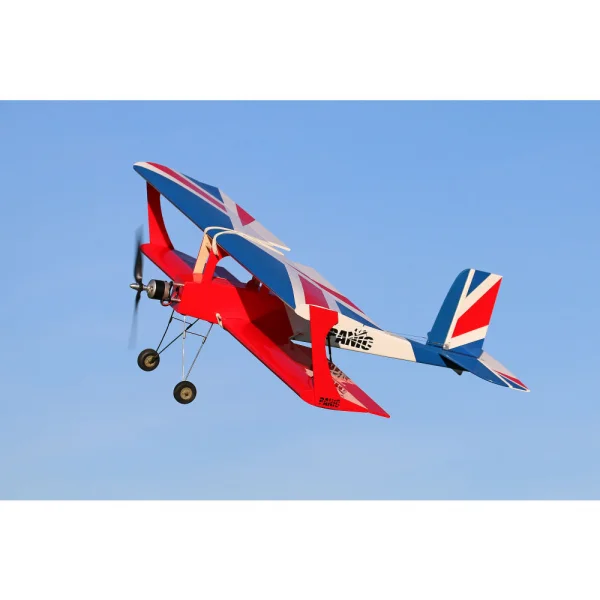

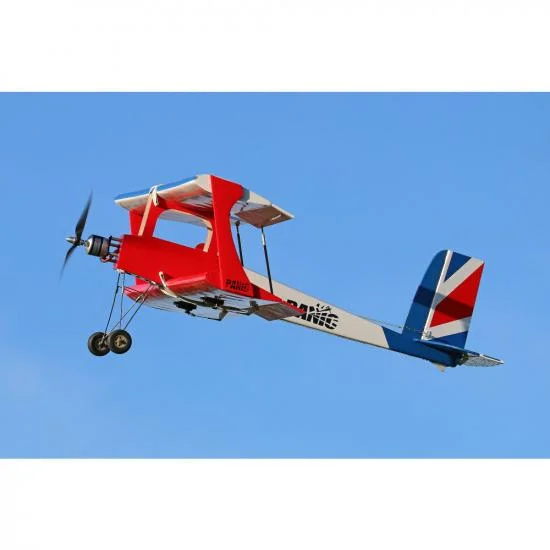

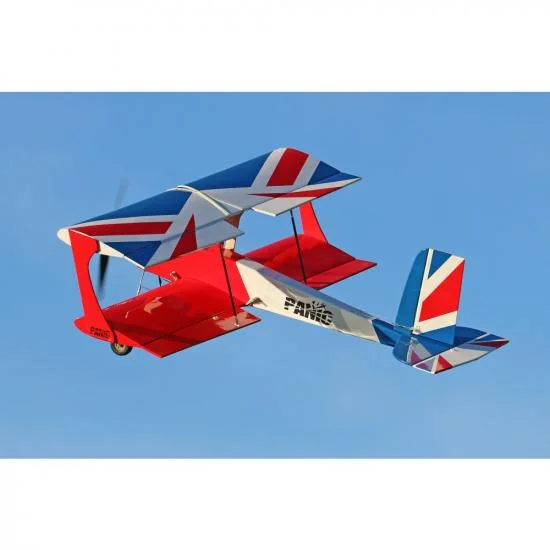

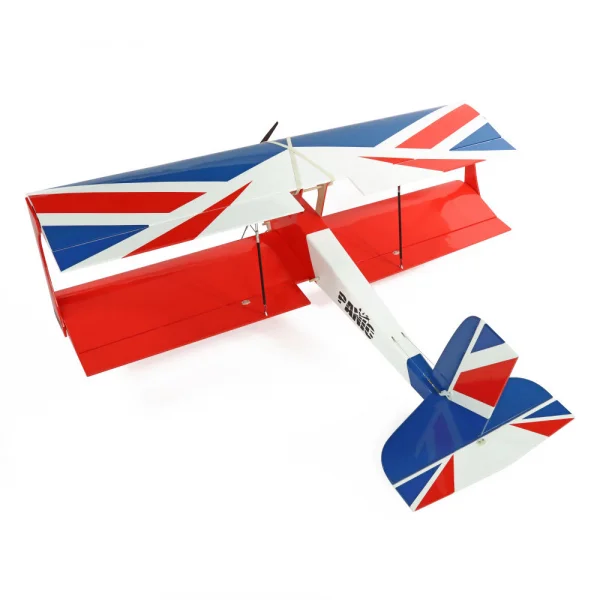

The J Perkins JP ARTF Panic (JPDAA1001) is an ARTF biplane sport aircraft based on the Avicraft Panic design. This radio-controlled model has pre-built and covered airframe components, making it suitable for intermediate and advanced model flyers who want an aircraft that can be completed with either electric or i.c. power.
The airframe uses laser-cut balsa and ply, with a pre-applied Oracover scheme, pre-formed wire undercarriage and banded wings with press-stud struts. The supplied hardware pack includes a fuel tank and wheels, while the engine mount and motor stand-offs support the two power options. Suggested electric equipment includes a 670KV 4S set-up, while the suggested i.c. engine range is .52 to .90cu. in.

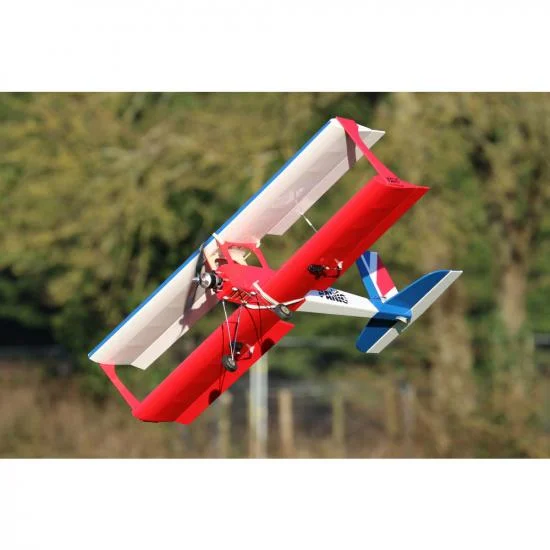

With a 1,220mm wingspan and 970mm length, the Panic is intended for use at a designated outdoor model flying facility. Its design supports conventional sport flying as well as high-alpha 3D flight. The stated shipping weight is 3.55kg, and the estimated assembly time is 360 minutes.
What's Included
- Pre-built and covered fuselage
- Pre-built and covered upper wing
- Pre-built and covered lower wing
- Pre-built and covered tailplane
- Pre-built and covered fin and interplane strut set
- Hardware pack
- Engine mount and motor stand-off set
- Instruction manual
Required to Complete
- 6-channel transmitter and receiver combination
- 5055-670KV brushless outrunner for the suggested electric option
- 80A SBEC speed controller for the suggested electric option
- 4S 5000mAh 50C LiPo battery for the suggested electric option
- .52 to .90cu. in. two-stroke engine for the suggested i.c. option
- Hitec HS485HB servo for the suggested i.c. option

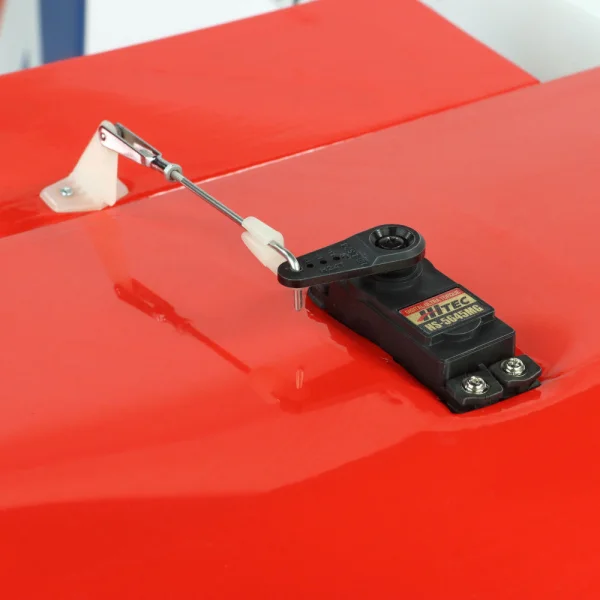

- Four Hitec HS5625MG servos for the flying surfaces
- Propeller to suit the chosen motor or engine
Secured by Stripe
JP ARTF Panic Manuals & Guides
Specifications
It s hard to believe that the original Avicraft Panic was designed over 40 years ago, yet it s as relevant now as it was back in 1982 when creator, Phil Newman, took pen to upturned wallpaper and began draughting. The result was a superficially simple yet ingeniously cunning biplane sportster that could not only fly the book and take the knocks but offered immense versatility from its eclectic choice of engines. Fast forward four decades and the Panic remains as entertaining as ever. Modified to meet the exacting requirements of today s performance-savvy pilots, this new ARTF version of the club favourite is not only light in weight and beautifully built, it caters for both i.c. and electric power plants and anyone with a thirst for 3D flight.
JP ARTF Panic Key Features:
- It s hard to believe that the original Avicraft Panic was designed over 40 years ago, yet it s as relevant now as it was back in 1982 when creator, Phil Newman, took pen to upturned wallpaper and began draughting. The result was a superficially simple yet ingeniously cunning biplane sportster that could not only fly the book and take the knocks but offered immense versatility from its eclectic choice of engines. Fast forward four decades and the Panic remains as entertaining as ever. Modified to meet the exacting requirements of today s performance-savvy pilots, this new ARTF version of the club favourite is not only light in weight and beautifully built, it caters for both i.c. and electric power plants and anyone with a thirst for 3D flight.
- True to the design and character of the original.
- Laser-cut balsa and ply.

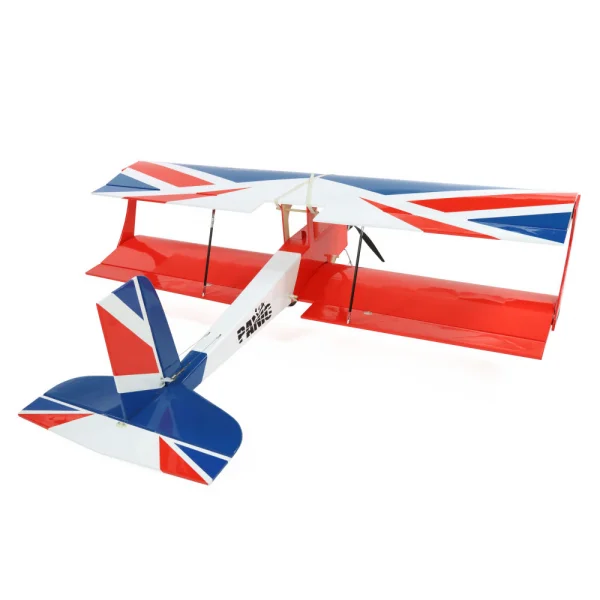

- Pre-applied Oracover scheme.

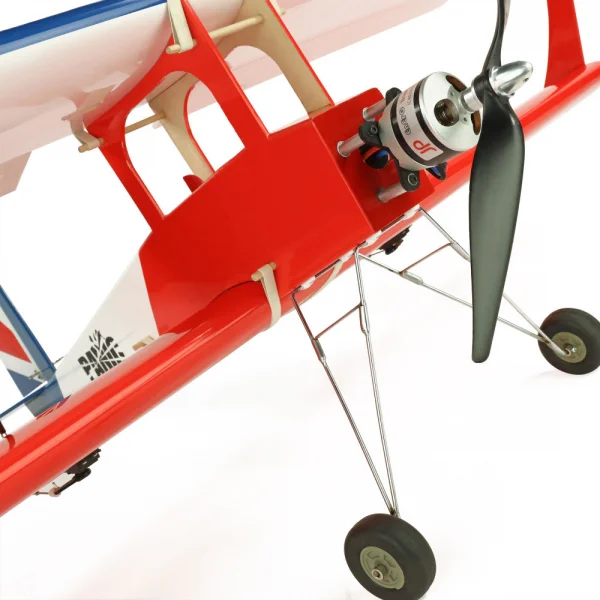

- Pre-formed wire undercarriage.
- Suitable for an electric or i.c. power plant.

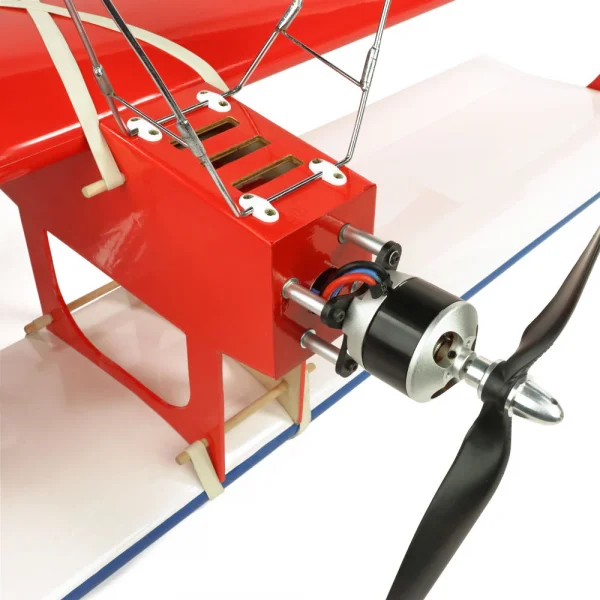

- Supplied with motor stand-offs and engine mount.
- Quality hardware throughout, including fuel tank and wheels.

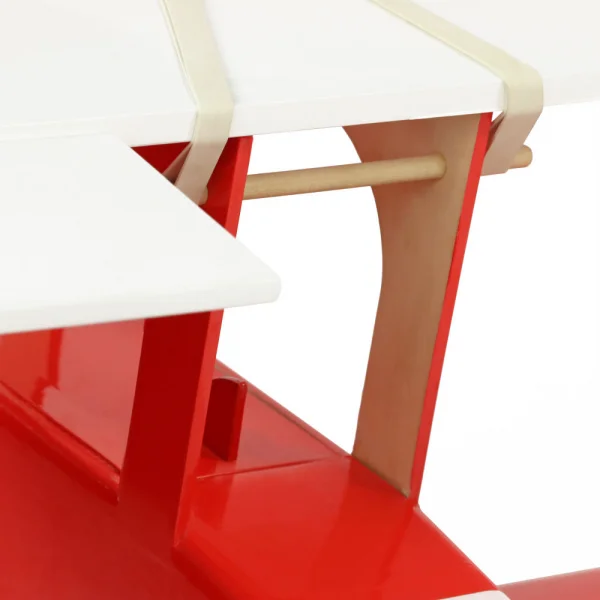

- Banded wings with press stud struts.

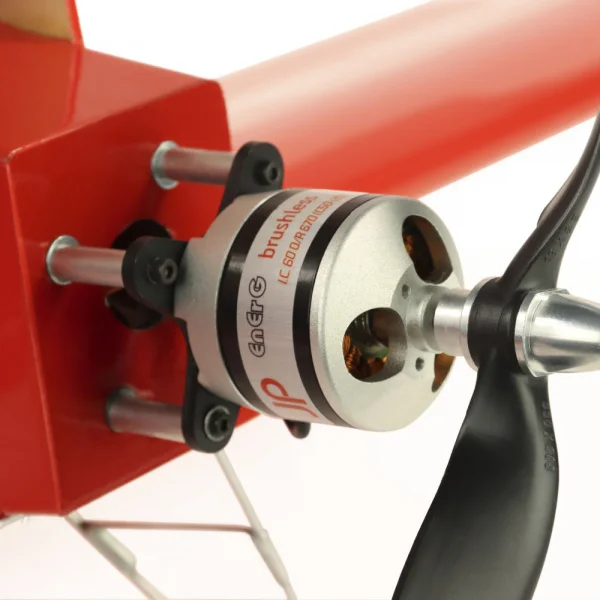

- Suits 670KV 4S electric set-ups.

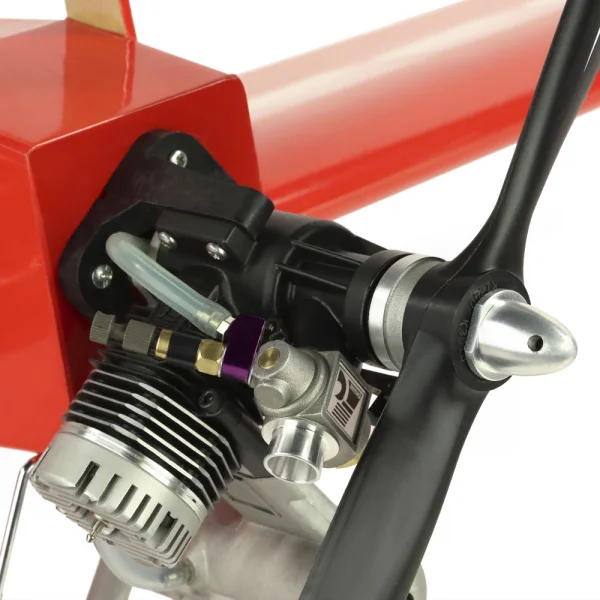

- Perfect for .52 to .90cu. in. i.c. engines.
- Pre-built and covered airframe components.
- Outstanding flying characteristics.
- Capable of extreme high-alpha flight.
What's in the Box:
- 1x Pre-built and covered fuselage.
- 1x Pre-built and covered upper wing.
- 1x Pre-built and covered lower wing.
- 1x Pre-built and covered tailplane.
- 1x Pre-built and covered fin and interplane strut set.
- 1x Quality hardware pack.
- 1x Engine mount and motor stand-off set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 6-ch transmitter and receiver combo.
- 1x 5055-670KV brushless outrunner (EP option).
- 1x 80A SBEC speed contoller (EP option).
- 1x 4S 5000mAh 50C LiPo (EP option).
- 1x .52 – .90cu. in. two-stroke (i.c option).
- 1x Hitec HS485HB servo (i.c. option).
- 4x Hitec HS5625MG servos (flying surfaces).
- 1x Propeller to suit chosen motor / engine.
Videos:
JP ARTF Panic Tech Specs:
- Shipping Weight: 3.55kg / 7.83lbs
- Product Length: 970mm / 38in
- Product Wingspan: 1,220mm / 48in
- Completion Level: ARTF
- Experience Level: Intermediate / Advanced
- Assembly Time: 360min
- Recommended Usage Environment: Designated outdoor model flying facility
- Material: Balsa / ply
Key Info:
- Brand: J Perkins
- Part No: JPDAA1001
- Barcode: 5051121260816
- Assembly Level: ARTF (Almost RTF)
- Power:
• Electric
• Nitro - Flying Style: Sport
