Description

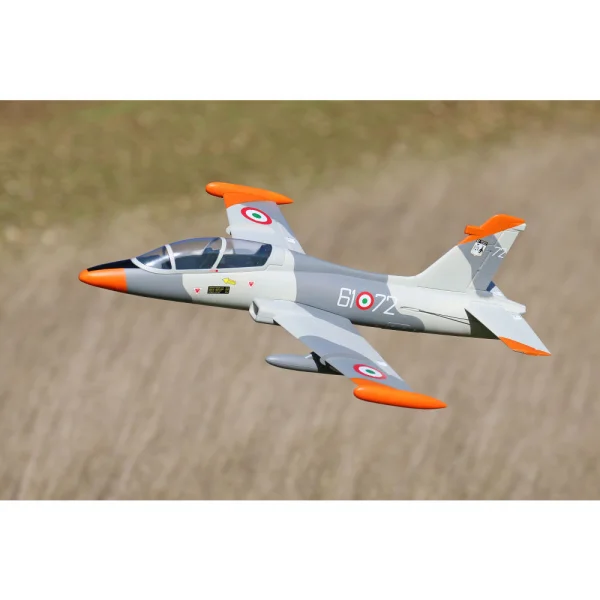

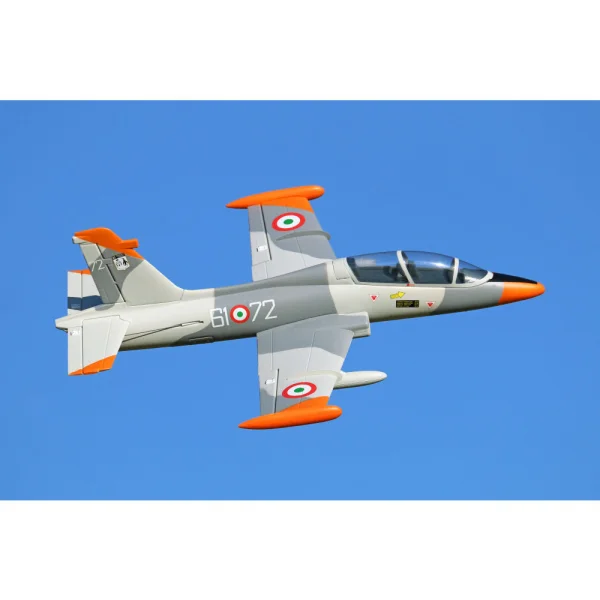

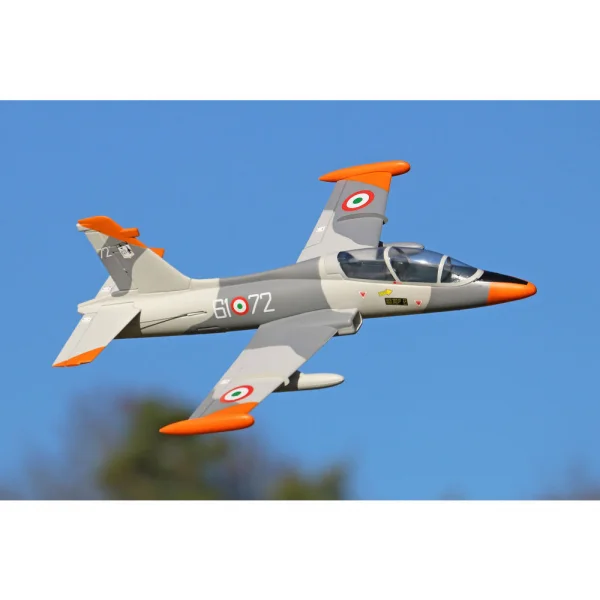

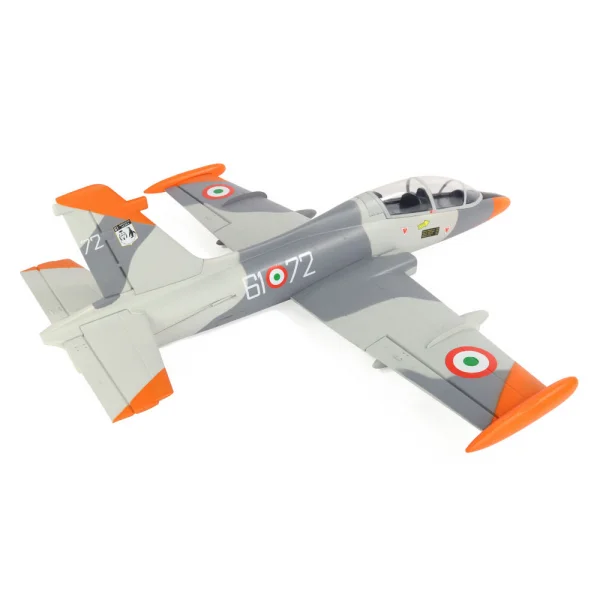

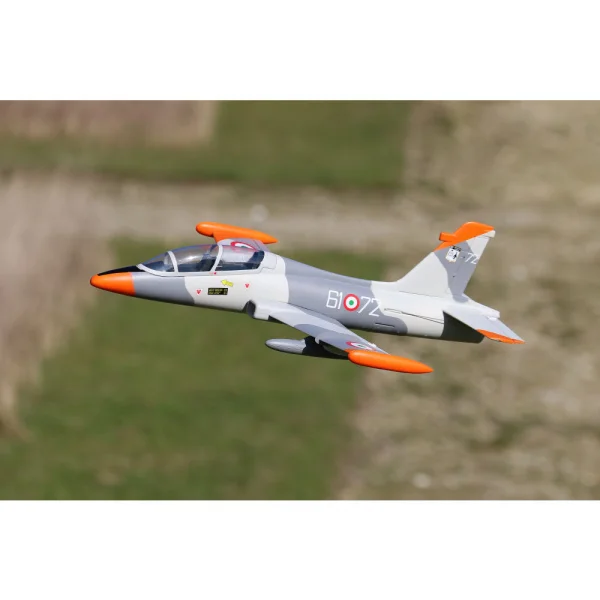

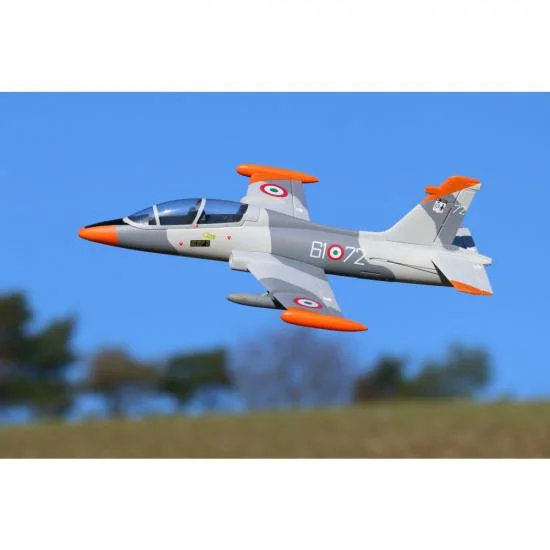

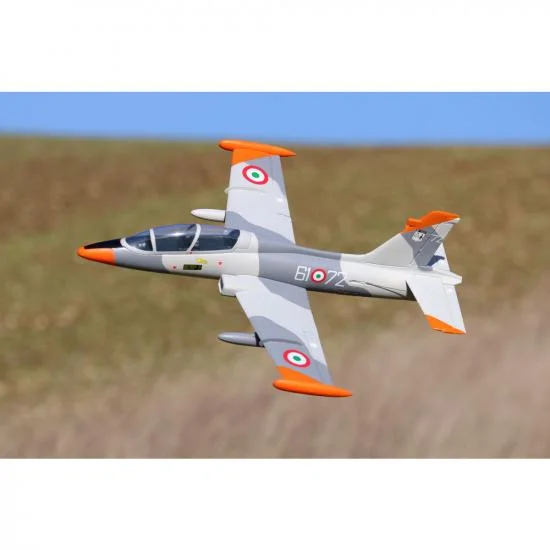

The J Perkins JP MB-339 50mm EDF PNP jet (800mm), part number JPDF1201, is an 800mm-span electric ducted fan model aircraft supplied in plug-and-play format. Based on the Aermacchi MB-339 advanced trainer and light attack aircraft, this EPO foam jet combines a 50mm 11-blade fan with a 2627 4900KV brushless motor and a 40A electronic speed controller.
The pre-painted airframe is designed for glue-and-screw-together assembly, with the hardware already installed and an assembly time of approximately 60 minutes. Its retract-free layout supports straightforward operation outdoors, while the hand-launch design, benign stall characteristics and transport-friendly size make it suitable for intermediate and advanced pilots. The model is designed around a standard 3S 11.1V LiPo battery, with recommended capacities from 1600mAh to 2200mAh.
Features

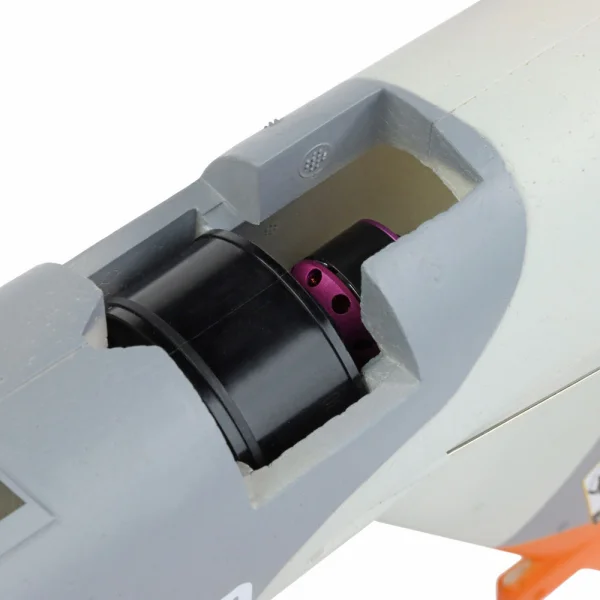

The MB-339 includes three pre-installed 9g analogue servos for the primary control functions and accepts a standard four-channel radio system for aileron, elevator and throttle control. The 11-blade fan provides the EDF sound and airflow for the brushless power system, while the magnet-retained canopy gives access to the radio and battery installation area.
- Pre-painted EPO foam airframe
- Pre-installed brushless motor, EDF fan and 40A ESC
- Three pre-installed 9g analogue servos
- Retract-free hand-launch configuration
- Magnet-retained canopy and pre-installed hardware
What's Included
- Factory-assembled and finished fuselage
- Factory-assembled one-piece wing
- Factory-assembled tailplane and finished fin with fixed rudder
- 2627 4900KV brushless motor and 50mm 11-blade fan
- 40A ESC with XT60 connector
- Screw and hardware set
- Instruction manual
Required to Complete
Completion requires a four-channel transmitter and receiver, a 3S 1600–2200mAh 50C LiPo battery with an XT60 connector, and a compatible LiPo balance charger. The finished model has an 800mm wingspan and 825mm length, and its stated experience level is intermediate to expert.
- Four-channel transmitter and receiver
- 3S 1600–2200mAh 50C LiPo with XT60 connector
- 3S-compatible LiPo balance charger
Secured by Stripe
JP MB-339 50mm EDF PNP jet (800mm) Manuals & Guides
Manuals & Guides
Specifications
If ever a jet were perfectly designed for miniaturisation and conversion to R/C, Aermacchi s MB-339 would have to be up there with the best of them. Designed as an advanced trainer and light attack aircraft the '339 s inherent qualities are brought to the fore in this smooth-flying, lightly loaded, 800mm span EPO EDF jet. But that s just a hint of the characteristics that make this a model you ll want to own and fly frequently. Fuelled by a standard - cheap as chips - 3S 2200mAh LiPo, its 50mm 11-blade fan and precision 2627 4900KV brushless motor combo produce thrust enough for genuinely spirited flight and a vertical performance that ll make you grin from ear to ear. Take all this, add a fool-proof hand-launch capability, a benign stall, transport convenience and a colour scheme that quite literally turns heads, and what you ve got here is a perfect first, second or third scale jet for any intermediate or advanced pilot.
JP MB-339 50mm EDF PNP jet (800mm) Key Features:
- If ever a jet were perfectly designed for miniaturisation and conversion to R/C, Aermacchi s MB-339 would have to be up there with the best of them. Designed as an advanced trainer and light attack aircraft the '339 s inherent qualities are brought to the fore in this smooth-flying, lightly loaded, 800mm span EPO EDF jet. But that s just a hint of the characteristics that make this a model you ll want to own and fly frequently. Fuelled by a standard - cheap as chips - 3S 2200mAh LiPo, its 50mm 11-blade fan and precision 2627 4900KV brushless motor combo produce thrust enough for genuinely spirited flight and a vertical performance that ll make you grin from ear to ear. Take all this, add a fool-proof hand-launch capability, a benign stall, transport convenience and a colour scheme that quite literally turns heads, and what you ve got here is a perfect first, second or third scale jet for any intermediate or advanced pilot.
- If ever a jet were perfectly designed for miniaturisation and conversion to R/C, Aermacchi s MB-339 would have to be up there with the best of them. Designed as an advanced trainer and light attack aircraft the '339 s inherent qualities are brought to the fore in this smooth-flying, lightly loaded, 800mm span EPO EDF jet. But that s just a hint of the characteristics that make this a model you ll want to own and fly frequently. Fuelled by a standard cheap as chips 3S 2200mAh LiPo, its 50mm 11-blade fan and precision 2627 4900KV brushless motor combo produce thrust enough for genuinely spirited flight and a vertical performance that ll make you grin from ear to ear. Take all this, add a fool-proof hand-launch capability, a benign stall, transport convenience and a colour scheme that quite literally turns heads, and what you ve got here is a perfect first, second or third scale jet for any intermediate or advanced pilot.
- High quality pre-painted EPO foam airframe.
- Glue- and screw-together assembly.
- Pre-installed hardware.
- Outstanding power-to-weight ratio.
- Secure magnet-retained canopy.
- Clear vacuum-formed canopy.
- Retract-free, fly anywhere simplicity.
- Suits 3S 11.1V 16002200mAh 3050C LiPo.
- Three pre-installed high-quality analogue servos.
- Takes standard 4-channel radio (aileron, elevator, throttle).
- Smooth-sounding 11-blade fan.
- 60-minute assembly time.
What's in the Box:
- 1x Factory assembled & finished fuselage.
- 1x Factory assembled & finished 1-piece wing.
- 1x Factory assembled & finished tailplane.
- 1x Factory finished fin & fixed rudder.
- 1x Pre-installed 2627 4900KV brushless motor.
- 1x Pre-installed 50mm 11-blade fan.
- 1x Pre-installed 40A ESC with XT60 connector.
- 3x Pre-installed high quality 9g analogue servos.
- 1x Screw & hardware set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 4-channel transmitter & receiver combo.
- 1x 3S 1600–2200mAh 50C LiPo with XT60 connector.
- 1x 3S compatible LiPo balance charger.
JP MB-339 50mm EDF PNP jet (800mm) Tech Specs:
- Shipping Weight: 4.00kg / 8.82lbs
- Product Length: 825mm / 32.5in
- Product Wingspan: 800mm / 31.4in
- Connector: XT-60
- Completion Level: PNP
- Experience Level: Intermediate / expert
- Assembly Time: 60min
- Recommended Usage Environment: Outdoors
- Material: EPO
- Motor/Engine: 1x Brushless 2627 4900KV.
- Servos: 3x 9g analogue.
- ESC: 1x 40A with XT60 connector.
Key Info:
- Brand: J Perkins
- Part No: JPDF1201
- Barcode: 5051121268881
- Flying Style:
• EDF Jets
• Sport - Power: Electric
- Assembly Level: PNP (Plug n Play) / RR
