J Perkins Multi Plug Solder Station Jig JPDA0003
Brand: J Perkins
Part No: JPDA0003
Expected Tue 1 Dec
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the JP Multi Plug Solder Station Jig
Description

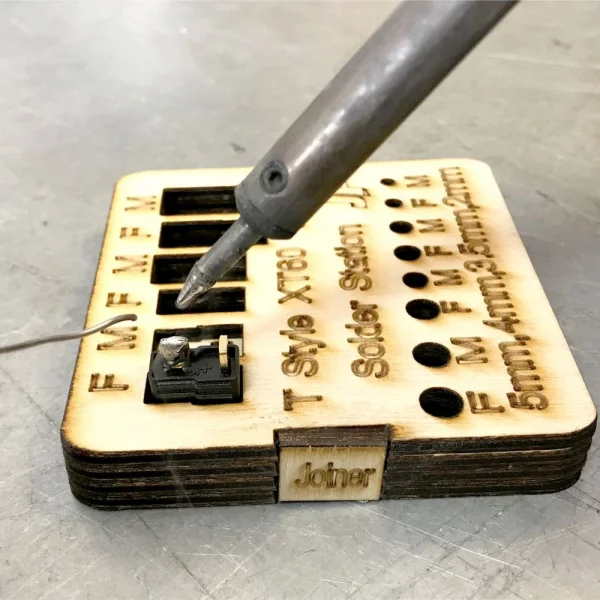

The J Perkins JP Multi Plug Solder Station Jig (JPDA0003) is a soldering jig for holding electrical connectors in position while you heat them and apply solder. It provides a practical workbench accessory for connector assembly, helping to keep the job still during soldering. Clamping the connector can also help to insulate it from heat while the joint is being made.

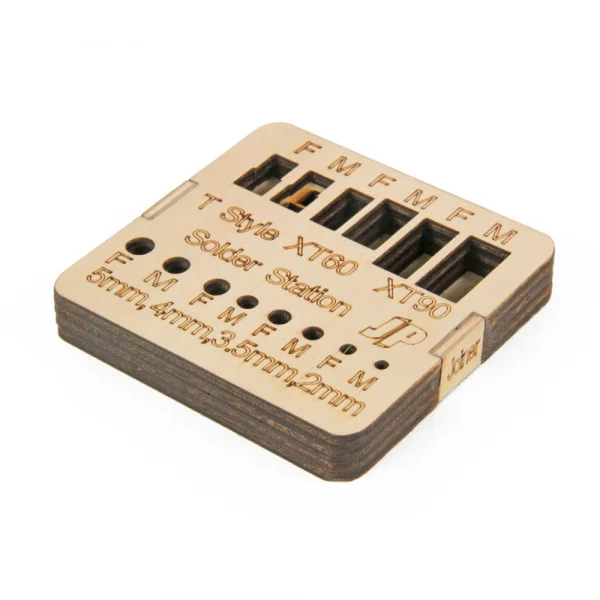

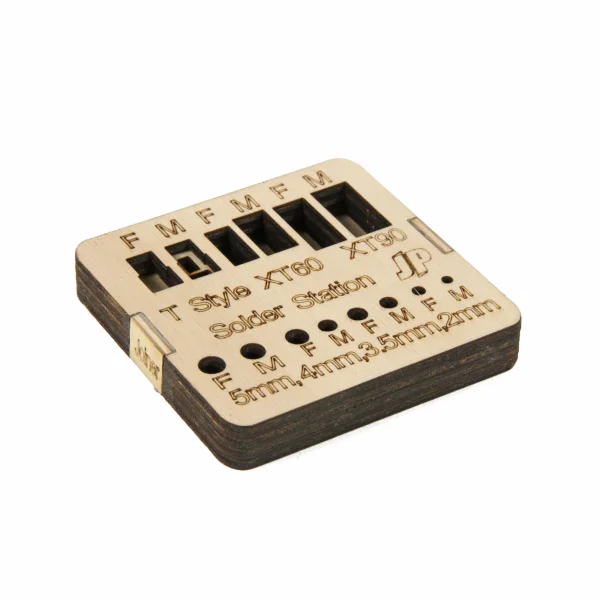

This station supports several connector formats used in radio control and electrical work. It is arranged for soldering both male and female versions of T-style, also known as Deans, connectors, as well as XT-series plugs. It also accommodates male and female bullet connectors in four sizes, giving one jig several soldering positions rather than requiring a separate holder for each connector type.
Supported Connector Types
- T-style (Deans) male connectors
- T-style (Deans) female connectors
- XT60 and XT90 male and female connectors
- 2 mm, 3.5 mm, 4 mm and 5 mm male and female bullet connectors

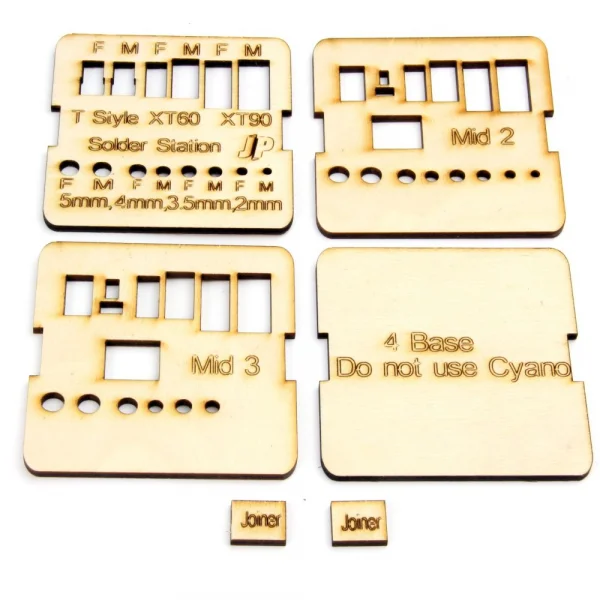

The solder station is supplied as a plywood parts set. Wood glue is needed to assemble the parts, with PVA recommended for this purpose. Once assembled, the jig can be kept with other workbench accessories and used when connectors need to be held securely during soldering.
The JP Multi Plug Solder Station Jig is supplied as one plywood parts set and has a shipping weight of 0.05 kg. Its connector positions cover T-style, XT60, XT90 and the stated bullet connector sizes, making the supported formats clear before assembly.
Secured by Stripe
JP Multi Plug Solder Station Jig Manuals & Guides
Manuals & Guides
Specifications
You know what it's like, when it comes to soldering you can't have too many hands or too many helpers. Given that it can be a pretty stressful task, someone to mop your brow can be handy, however perhaps more important is a device that'll hold the job still while you heat it up and apply the solder. Of course, anyone who's familiar with the process will also tell you that the best joints are always made when the connector is both clamped and heat insulated. Well, the answer is right here in this simple but effective Solder Station. Add it to your workbench accessories and you'll wonder how you ever managed without it. No sweat!
JP Multi Plug Solder Station Jig Key Features:
- You know what it's like, when it comes to soldering you can't have too many hands or too many helpers. Given that it can be a pretty stressful task, someone to mop your brow can be handy, however perhaps more important is a device that'll hold the job still while you heat it up and apply the solder. Of course, anyone who's familiar with the process will also tell you that the best joints are always made when the connector is both clamped and heat insulated. Well, the answer is right here in this simple but effective Solder Station. Add it to your workbench accessories and you'll wonder how you ever managed without it. No sweat!
- T-style (Deans) male and female soldering
- XT60 male and female soldering
- XT90 male and female soldering
- 2mm, 3.5mm, 4mm and 5mm male and female bullet connector soldering
What's in the Box:
- 1x Solder station plywood parts set
Needed to Complete:
- 1x Tube of wood glue (PVA recommended)
JP Multi Plug Solder Station Jig Tech Specs:
- Shipping Weight: 0.05kg / 0.12lbs
Key Info:
- Brand: J Perkins
- Part No: JPDA0003
- Barcode: 5051121240467
