Description

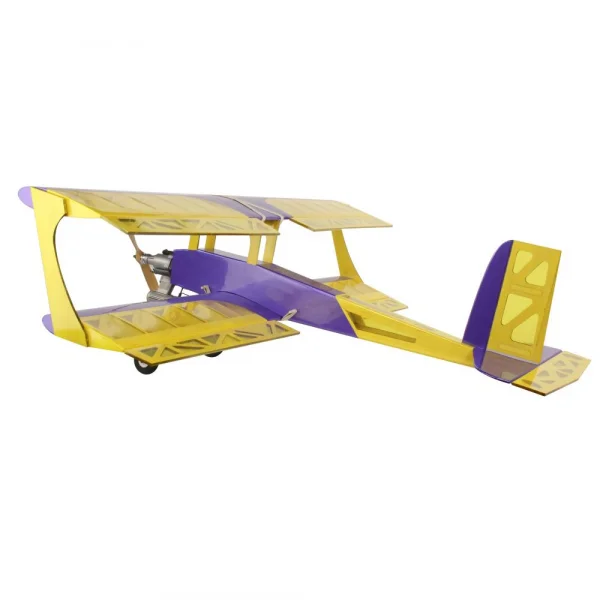

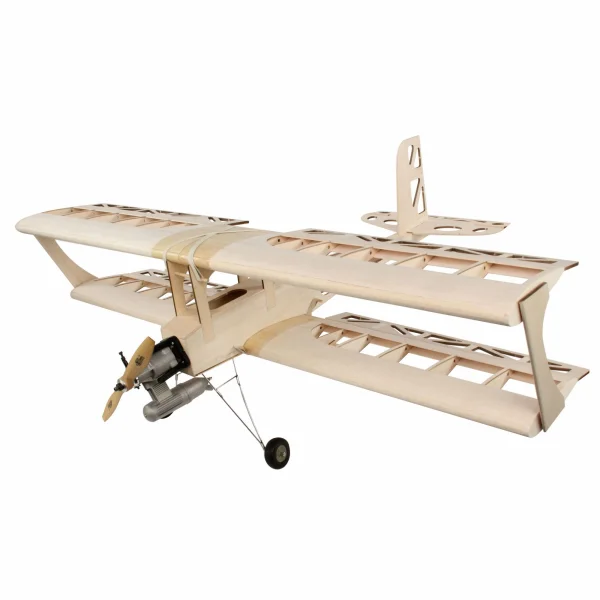

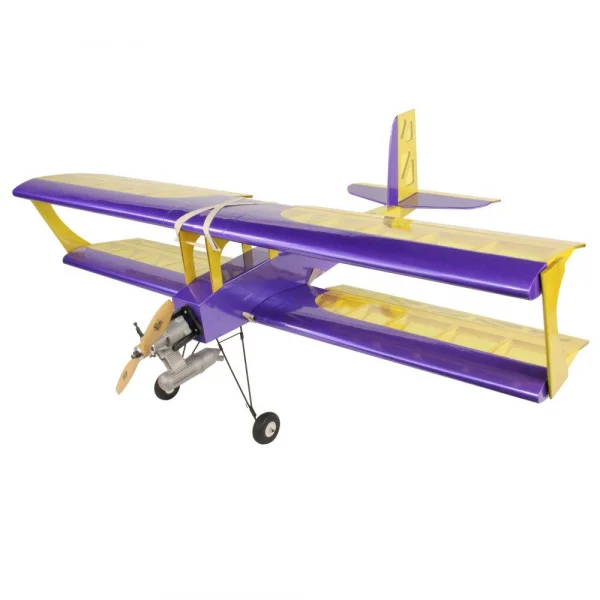

The J Perkins JP Panic Kit (JPDAA1000) is a revised biplane model aircraft kit for glow or electric power. Based on the Panic design associated with fun-fly and competition displays from the late 1970s, this kit provides a traditional aerobatic model with updated construction features. It uses laser-cut balsa and plywood parts, pre-formed undercarriage components and an interlocking wing structure designed to simplify assembly.
The suggested power options are a .52 four-stroke engine, a .60–.91 two-stroke engine or an equivalent electric power system. The model requires four or five standard-size servos, with five specified in the completion requirements. Control surface movement can be set for different flying styles, from lower-rate operation with a .60-size engine to more lively aerobatic control with a larger engine and increased deflection. Servo selection should reflect the intended setup and flying style.
Features

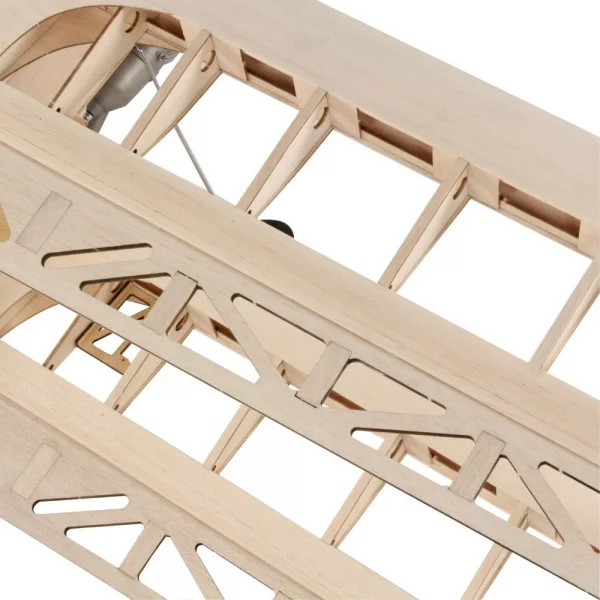

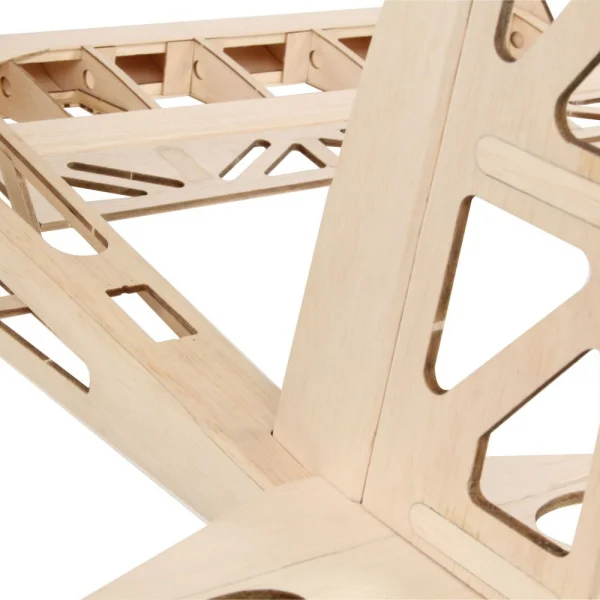

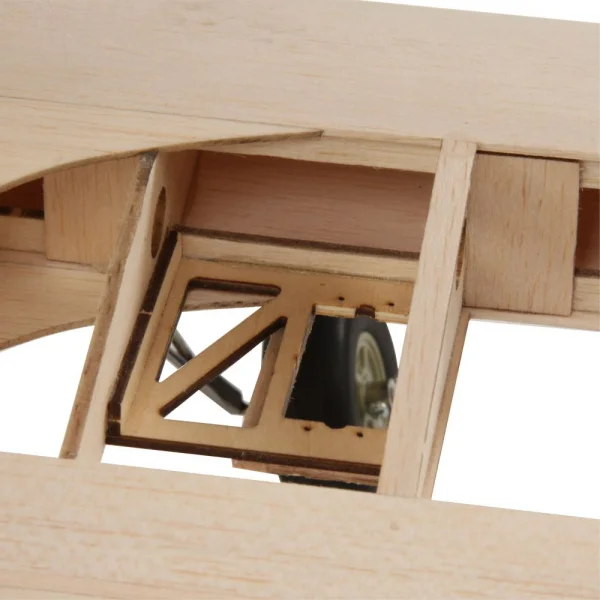

Laser-cut ribs, lightening holes and wing sheeting cut to size help reduce preparation work during the build. The interlocking wing construction is paired with one-piece pre-lightened tail surfaces, while the pre-formed wire undercarriage provides the main landing gear components. The kit is supplied with full instructions and includes an engine mount, with provision for conversion to electric power.
The completed model is listed with a weight of 2,400 g, a length of 970 mm, a wingspan of 1,220 mm and a wing area of 63 dm2. These figures describe the finished Panic model rather than the kit packaging.
What's Included
- Laser-cut balsa and plywood parts
- Wire undercarriage parts for soldering
- Saddle clamps and undercarriage screws
- Eight 19 mm wing-tip press studs
- Engine mount
- Full instruction manual
Required to Complete
- .61–.90 glow engine or equivalent electric power system
- Five standard-size servos
- Polyester hinges
- Control horns, ball links and connecting rods
- Closed-loop rudder system
- Elevator, aileron and throttle push rods
- Model covering, with Oracover suggested
- Fuel tank, wheels, collets and wing-joining glass-fibre bandages
Secured by Stripe
JP Panic Kit Manuals & Guides
Manuals & Guides
Specifications
Having fun never goes out of fashion and neither does the Panic bipe. In the late '70s a group of competition pilots were flying a fantastic new biplane designed by the late Phil Newman. They got together after fun-fly competitions to put on the most amazing displays of aerial dancing the like of which had never been witnessed before. That bipe was known as the Panic and the rest, as they say, is history.
This new, revised kit from J.Perkins is bang up-to-date with laser-cut parts, pre-formed u/c, an interlocking wing construction and full instructions. It builds quickly and accurately and suits a .52 four-stroke, .60-.91 two-stroke or electric power and requires 4 or 5 standard size servos.
Panic is for everyone; whether you re an experienced stick-banger, or relatively new and looking for your first aerobat. With a .60-size engine and low rates it s friendly and fun, but insanely lively with a larger engine and huge control surface deflections. Just make sure you select your servos accordingly. We d suggest Hitec HS635HBs for intermediate pilots and HS5625MGs for experts.
JP Panic Kit Key Features:
Having fun never goes out of fashion and neither does the Panic bipe. In the late '70s a group of competition pilots were flying a fantastic new biplane designed by the late Phil Newman. They got together after fun-fly competitions to put on the most amazing displays of aerial dancing the like of which had never been witnessed before. That bipe was known as the Panic and the rest, as they say, is history.
This new, revised kit from J.Perkins is bang up-to-date with laser-cut parts, pre-formed u/c, an interlocking wing construction and full instructions. It builds quickly and accurately and suits a .52 four-stroke, .60-.91 two-stroke or electric power and requires 4 or 5 standard size servos.
Panic is for everyone; whether you re an experienced stick-banger, or relatively new and looking for your first aerobat. With a .60-size engine and low rates it s friendly and fun, but insanely lively with a larger engine and huge control surface deflections. Just make sure you select your servos accordingly. We d suggest Hitec HS635HBs for intermediate pilots and HS5625MGs for experts.
- A true all-time classic
- Traditional 'quick-build kit
- Lightweight, high quality balsa and plywood construction
- Laser-cut parts including ribs, lightening holes and wing sheeting cut to size
- Simplified interlocking wing construction
- One-piece pre-lightened tail surfaces
- Pre-formed wire undercarriage
- Suits a wide range of engine sizes
- Easily converted for electric power
What's in the Box:
- Laser-cut balsa and plywood parts
- Wire undercarriage parts ready for soldering
- Saddle clamps and screws for undercarriage
- 8x Wing tip 19mm press studs
- 1x Engine mount
- 1x Full instruction manual
Needed to Complete:
- 1x 61 - 90 Glow engine or electric equivalent
- 23x Polyester hinges
- 1x Double control horn (rudder)
- 3x Single control horns (ailerons, elevator)
- Ball links and rod for upper aileron connection
- Standard size servos, 5 minimum.
- Closed loop system for rudder
- Elevator push rod
- Aileron push rods
- Throttle push rod
- Covering (recommended Oracover)
- Fuel tank (8oz Minimum)
- 2x 2 1/2in Wheels
- 4x Wheel collets 10SWG
- 2 x Glass fibre bandages for joing the wings
Videos:
JP Panic Kit Tech Specs:
- Weight: 2400g / 84.66oz
- Shipping Weight: 1.83kg / 4.04lbs
- Product Length: 970mm / 38.19in
- Product Wingspan: 1,220mm / 48.03in
- Product Wing Area: 63dm2 / 971.39in2
Key Info:
- Brand: J Perkins
- Part No: JPDAA1000
- Barcode: 5051121234602
- Power:
• Electric
• Nitro
• Petrol - Assembly Level: Kit (Unassembled)
- Flying Style: Sport
