Kyosho EP Plazma 2WD MK.3 Limited A2 1:12 Kit - Legendary Series

Kyosho EP Plazma 2WD MK.3 Limited A2 1:12 Kit - Legendary Series

Brand: Kyosho

Part No: K.30639B

£256.12 ~~RRP £269.60~~

Shadow Stock: Usually ships within 4-5 days

Collect Instore

Request Price Match Ask a Question Write a Review Show Spares and Option Parts

Kyosho revives a true on-road icon with the EP Plazma 2WD MK.3 Limited A2 1:12 kit, blending the spirit of the late-80s racer with updates for today’s electronics and power systems. True to the original Plazma MKIII Limited, this agile 2WD pan car delivers light, direct performance that shines on high-grip circuits, now enhanced with refined hardware and materials. Part number K.30639B.

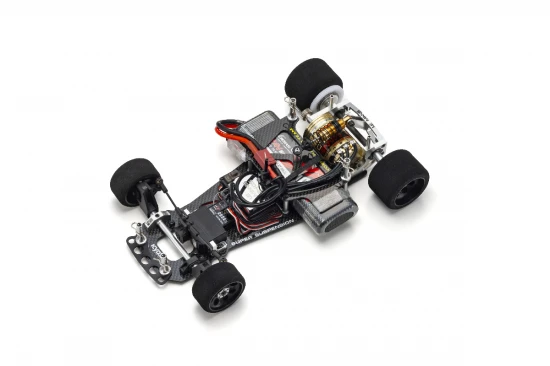

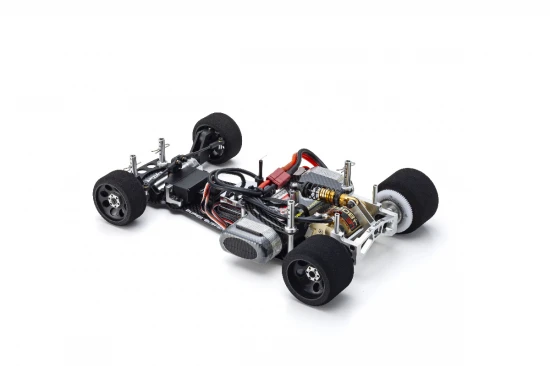

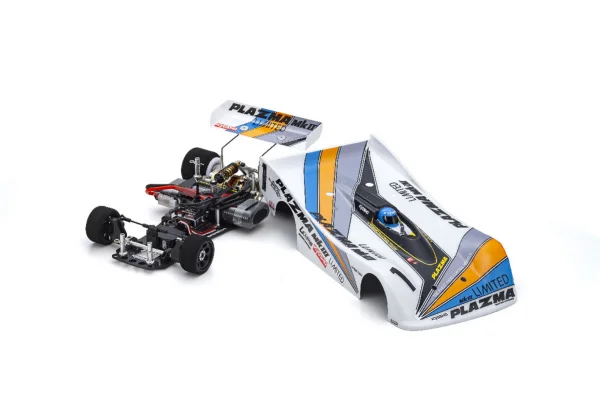

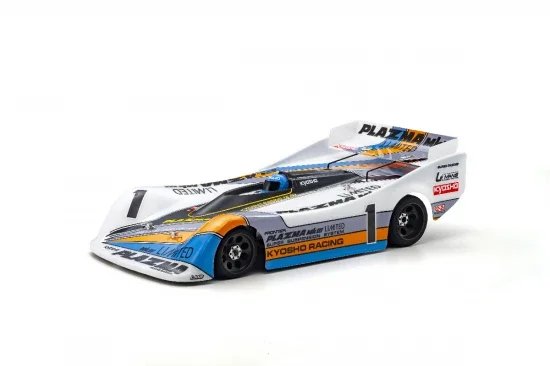

A high-rigidity carbon main chassis and upper plate provide a precise platform, while the simple king-pin and coil front end allows fine control over steering feel, including adjustable caster and two king-pin diameter options. At the rear, a tunable ball differential and oil damper with dial-adjustable spring tension help you put power down smoothly through the lightweight φ6 carbon rear shaft. The faithfully reproduced α-2 open-cockpit body and Kyosho Works silver-finished aluminium parts complete the authentic look. The unassembled kit includes pre-glued, trued front and rear tyres and an unpainted body.

Key Features

Reissue of Kyosho’s renowned agile 2WD 1/12 on-road racer in the Vintage Series
Carbon main chassis and upper plate for high rigidity and responsive handling
Proven 3-point suspension layout with direct drive
King-pin coil front suspension with adjustable caster and two king-pin diameters
Rear oil damper with dial-adjustable spring tension
Adjustable ball differential
Lightweight, high-strength φ6 carbon rear shaft
Aluminium parts finished in Kyosho Works silver
Includes pre-glued and trued tyres and an unpainted α-2 body shell

Specifications

Length: 340 mm
Width: 172 mm
Height: 83 mm
Drivetrain/Suspension: 3-point suspension system with direct drive
Wheelbase: 203–204 mm (adjustable)
Tread: Front 137 mm / Rear 133 mm
Tyres: Front φ48 × 23 mm / Rear φ53 × 35 mm
Gear Ratio: 3.38:1
Weight: approx. 850 g (with GAB4202)
Approx. maximum speed: ~55 km/h (with Le Mans 480G)
Approx. driving time: ~23 minutes (with Le Mans 480G)

What’s In The Box

Chassis kit
Adhesive shaped tyre
Unpainted body
Decal
Wheel wrench (12/4.0)
5.5/5.0 wrench
Hexagonal wrench
Caster angle jig
Shock wrench
Shock oil
Ball differential grease

Required To Complete

2-channel radio system with 1 servo (Receiver max: 37 × 30 × 16.5 mm / Servo max: 37 × 16.5 × 30 mm)
Electronic speed controller (ESC size: 38 × 31 × 23 mm)
540 class motor
Battery for chassis (138 × 48 × 24.5 mm)
Transmitter batteries
Battery charger
Polycarbonate paint for body

Suggested Accessories

No.82147 Syncro 2.4 GHz TX/RX Set (suggested compatibility)
No.82278 Mini Servo KS3031-04M All Metal Gear (suggested compatibility)
No.GAB4202 Gens ace LiPo 4000 Straight Pack 60C 7.4 V (suggested compatibility)
No.37035 Le Mans 480GOLD Brushless Motor 21.5T (suggested compatibility)
No.37051B Le Mans 240S ESC (suggested compatibility)

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Dynamic 2WD racer that ruled 1/12 on-road Returns with a vengeance! 1/12 scale was the center of on-road electric R/C car racing in the 1980’s and was dominated by the Kyosho Fantom EP-4WD series. However, the Fantom enjoyed a strong rivalry with the rear drive 2WD Plazma series, also made by Kyosho. The Plazma’s final and ultimate model was the MKIII Limited which was released in 1987. More than 30 years later it lives again as part of the Kyosho Vintage Series! Like other Vintage Series models, the reborn Plazma MKIII Limited is true to the original design but features some modern adaptations for the latest R/C systems and power sources. Now you can relive the glory days of the 1980’s while enjoying the power and performance of modern racing! While sharing some components with the Fantom EP-4WD Ext, the simple structure of the Plazma makes it lighter and faster than the Fantom over circuits with enough grip. Like the 1987 original, the new Plazma MKIII Limited features a carbon fiber main chassis, but the original black FRP upper plate and A-shaped joint bar are now also made of carbon fiber. The rear differential unit has been upgraded to the same high-performance ball-diff installed on the Fantom EP-4WD Ext Kyosho 60th Anniversary Model released in 2023. The front suspension uses the same simple king-pin & coil structure with adjustable caster angle, but now also includes two king-pin diameter types for precision adjustment of control characteristics. The α-2 open cockpit and aerodynamic body are faithfully reproduced, and all aluminum parts are finished in Kyosho Works silver color. With its dynamic performance and definitive style, the new Plazma MKIII Limited lights up the Kyosho Vintage Series!

The long-awaited 1/12 Plazma revival with its famous agile 2WD performance is the 16th installment of Kyosho's Vintage Series.
Recreation of the pure racing Limited Edition model released in 1987.
Retains the key design features from the 1987 original but with updated components to suit modern R/C systems and power sources.
All aluminum parts feature the Plazma’s unique silver finish.
Incorporates the proven reliability of the 3-point suspension system standard in 1/12 EP racers.
Equipped with a high-rigidity carbon main chassis & upper plate with an FRP rear A-bar that enhances tire grip with moderate flex.
Features a king-pin coil front suspension system that allows fine tuning of control feel.
Includes rear oil damper with a dial-adjustable spring tension tuning.
Ball differential can be adjusted by tightening the nut.
Standard equipment includes lightweight and high-strength φ6 carbon rear shaft.
Unassembled kit includes pre-glued and trued front and rear tires and an unpainted body.

Specifications:

Length 340mm
Width 172mm
Height 83mm
3P suspension system with direct drive
Wheelbase 203-204mm（Adjustable）
Tread F:137mm/R:133mm
Tire F:φ48×23mm/R:φ53×35mm
Gear ratio 3.38：1
Weight approx.850g(with GAB4202）
※Maximum Speed approx.55km/h(with Le Mans480G）
※Driving Time approx.23minutes(with Le Mans480G）

What's in the Box:

Chassis kit
Adhesive shaped tire
Unpainted body
Decal
Wheel wrench（12/4.0）
5.5/5.0wrench
Hexagonal wrench
Caster angle jig
Shock wrench
Shock oil
Ball differential grease

Required to Complete:

Radio transmitter with 2 channel, 1-servo(Receiving size: Max 37x30x16.5mm / Servo size: Max 37x16.5x30mm )
1 Electronic speed controller (ESC size：38x31x23mm)
540 Class Motor
Battery for chassis(Battery size：138x48x24.5mm)
Batteries for transmitter
Charger for Battery
Paint for body

Recommended product：No.82147 Syncro 2.4GHz TX/RX Set / No.82278 Mini Servo KS3031-04M All Metal Gear / No.GAB4202 Gens ace LiPo 4000 Straight pack（60C/7.4V）/ No.37035 LE MANS 480GOLD Brushless Motor 21.5T / No.37051B LE MANS 240S ESC

Key Info:

Brand: Kyosho
Part No: K.30639B
Barcode: 4548565474578
Scale: 1:12
Power Source: Electric - No Motor
Surface Type: On Road
Vehicle Type: Touring / Rally Car
Build Level: Unassembled (Kit)
