Kyosho Fazer MK2 1:10 Chassis Kit

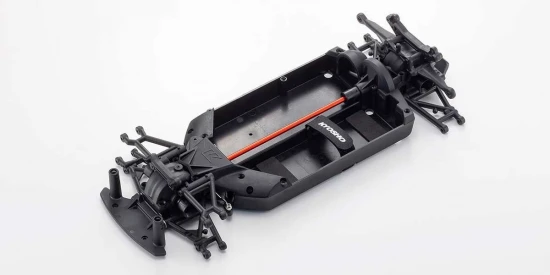

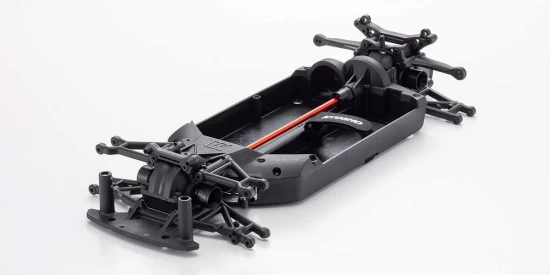

The Kyosho Fazer Mk2 1:10 Chassis Kit (K.34461C) provides a high-quality base for on-road RC racing and club driving. Supplied 40% pre-assembled, it lets you choose your own body, motor and radio gear while benefiting from elevated specifications out of the box. The lightweight FZ02 platform features a low centre of gravity, optimised front–rear suspension balance and a deckless layout for easier maintenance and improved torsional rigidity.

Key optional parts are factory-fitted, including the HD TC Center Shaft (FAW209) for smoother, more rigid power delivery, and front TC Universal Swing Shafts (FAW202) for consistent drive at wider steering angles. Nylon components enhance impact resistance, while stiffeners and ribbed reinforcement add strength. Shocks and differentials are supplied dry so you can set oils to your preferred tuning.

Features

• FZ02 chassis with low centre of gravity and symmetrical design
• HD TC Center Shaft (FAW209) increases rigidity and drive efficiency
• Front TC Universal Swing Shafts (FAW202) resist dropout and maintain smooth transmission at angle
• Deckless layout reduces parts count and improves maintenance efficiency
• Nylon material used for reduced weight and improved impact resistance
• Front and rear stiffeners plus ribbed sections for strength and rigidity
• Oil shocks and springs included; silicone shock oil sold separately
• Transponder mounting stay included for race use
• Body mounts and two brake‑disc wheel hubs support 190 mm or 200 mm width settings for suggested compatibility with a wide range of touring car bodies
• Original semi‑slick low‑profile tyres with inner sponges and 15‑spoke black wheels
• Aluminium motor dust plate aids heat dissipation

Specifications

• Length: 375 mm
• Width: 200 mm / 190 mm
• Ground clearance: approx. 8 mm
• Wheelbase: 260 mm
• Tread (body width 190 mm): F 164 mm / R 164 mm
• Tread (body width 200 mm): F 174 mm / R 174 mm
• Tyres: F/R φ66 x 25 mm
• Gear ratio: 6.54:1
• Total running weight: approx. 1490 g (with 7.4 V 4000 mAh LiPo)

What's In The Box

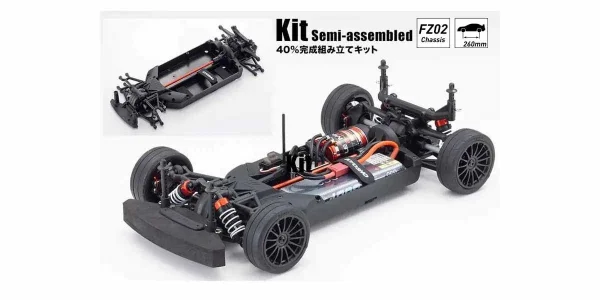

• 40% pre‑assembled chassis
• FAW202 TC Universal Swing Shaft S
• FAW209 HD TC Center Shaft S
• Aluminium motor dust plate
• Transponder mounting stay
• +0 mm offset wheel hub & M4 x 16 wheel screw (for 190 mm width body)
• +5 mm offset wheel hub & M4 x 22 wheel screw (for 200 mm width body)
• Body mounts for various manufacturers’ bodies (suggested compatibility)
• FAT701M TC Tyres (M)
• Inner sponge
• VZH003BK wheels
• 1.5 / 2.0 / 2.5 mm hex wrenches
• 3 / 4 / 5 / 5.5 / 7 / 8 mm spanners

Required To Complete

• 2‑channel car R/C system with 1 servo (receiver size L45 x W28 x H22 mm or less)
• Body
• 540–550 class motor
• ESC compatible with chosen motor (size L36 x W32 x H23 mm or less)
• Servo
• Battery charger
• Drive battery compatible with ESC (size L145 x W47 x H25 mm or less)
• 4 x AA batteries for transmitter
• Damper oil
• Grease for ring gear & differential
• Silicone oil for differential (recommended: Front No. SIL50000 / Rear No. SIL3000)
• Velvet Coating pinion gear No. PNGA4832 – No. PNGA4837 (for brushless motor)
• Steel pinion gear No. PNGS4829 – No. PNGS4836 (for brushless motor)
• Paint for polycarbonate body
• Tools
