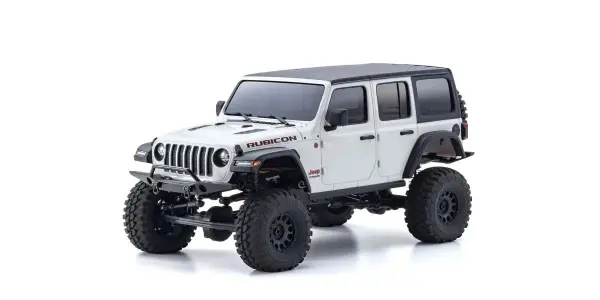

Kyosho Mini-Z 4x4 Jeep Wrangler Rubicon White – K.32536W

The Kyosho Mini-Z 4x4 MX-01 Jeep Wrangler Unlimited Rubicon in White brings a highly detailed body together with a completely new 4x4 chassis design, delivering mini crawler performance that belies its palm-sized footprint. Authentic Rubicon styling is faithfully captured, including black over-fenders, a front grille with dark grey accent, and the classic round Jeep headlights, topped with a black hard top. Kyosho part number K.32536W includes the Syncro KT-531P transmitter for precise control.

Despite its compact size, the MX-01 platform offers selectable gear ratios and smooth low-speed control, ideal for crawling. The factory-painted body and built-in electronics mean you can be trail-ready with only AAA batteries required.

Technical Data

• Length: 197.3 mm
• Width: 87.3 mm
• Height: 89.1 mm
• Chassis Type: MX-01
• Wheelbase: 120 mm
• Tread (F/R): 72.7 mm
• Weight: 234 g (excl. battery)
• Motor: 130 class
• Gear Ratios: 55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
• Front Tyre Diameter: 42.0 mm
• Rear Tyre Diameter: 42.0 mm
• Front Tyre Width: 14.3 mm
• Rear Tyre Width: 14.3 mm
• Battery: 4 x AAA alkaline
• Transmitter: Syncro KT-531P
• Speed (approx.): 2.7–5.4 km/h (pinion gears 10T–20T)
• Running Time (approx.): 60 mins

Kit Contents

• Complete chassis with built-in electronics
• Factory-painted body complete with many fine details
• KT-531P 2.4GHz transmitter
• Pinion gear set (10, 12, 14, 16, 18, 20T)
• Three types of pinion gear spacers

Requirements to Run

• 4 x AAA batteries for the transmitter
• 4 x AAA batteries for the chassis (alkaline or NiMH)
