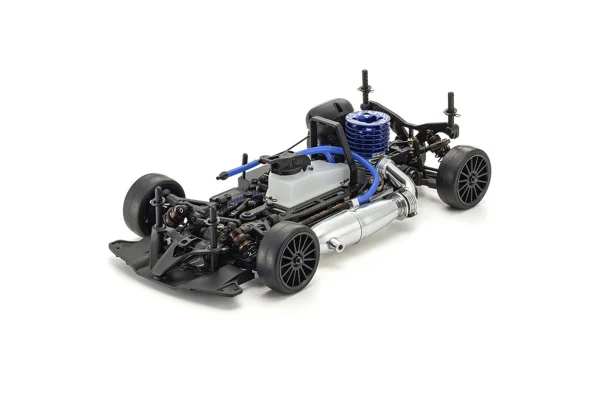

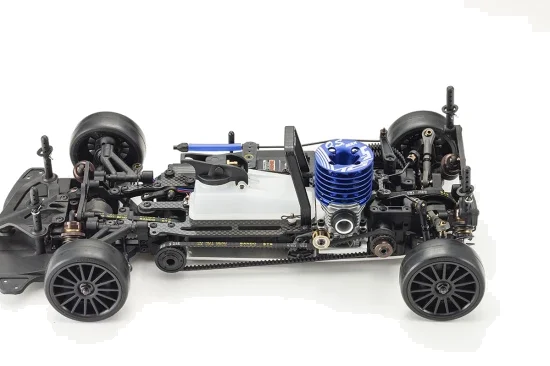

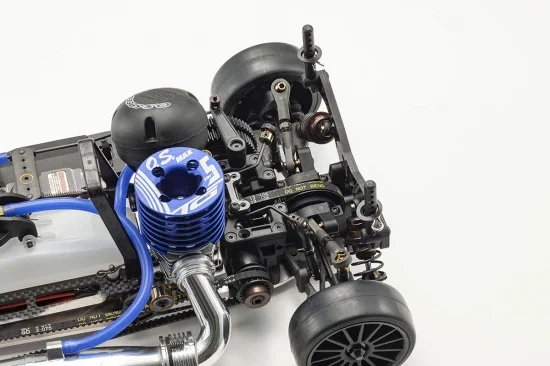

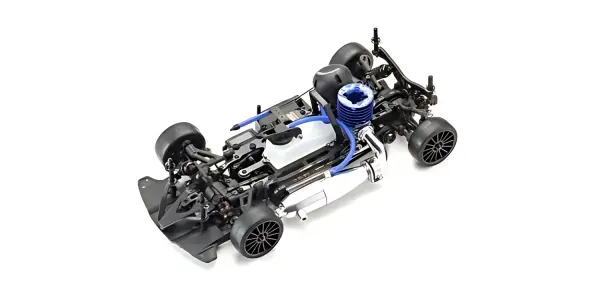

Kyosho V-One R4 Evo.3 1:10 Chassis kit

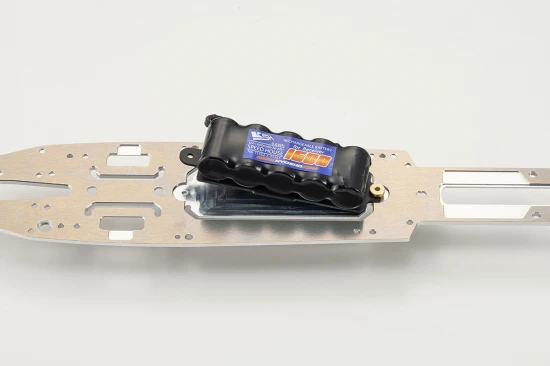

A range of newly designed components takes the performance capability of the PureTen GP 4WD V-ONE R4 to a new level. In the world of GP touring car racing, the PureTen is the machine of choice for many racers to compete in various 1/10 scale events including the KYOSHO CUP. With the V-ONE R4 Evo.2 as its base, the new Evo.3 incorporates a range of new components from the Evo.3 chassis conversion kit that was released in 2023. New main chassis features a modernized front bulkhead and stabilizer design, as well as center-fixed engine mounting that optimizes chassis flex and eliminates the quirks in steering characteristics through cornering. Modifications to the receiver and battery mounting tray improves chassis roll characteristics and simplifies battery replacement. However, one of the more intriguing aspects of the V-ONE R4 Evo.3 is that the kit is packaged for use with both sponge and rubber tires. The kit includes a clutch suitable for the OS-12TG engine with clutch springs optimal for rubber tires designated for the KYOSHO CUP as well as clutch springs for sponge tires to compete in open races. In addition, front side pulleys and shock springs are included for both rubber and sponge tires. With the worldwide race-proven reliability of the V-ONE R4 Evo.2 as its foundation, the race potency of the V-ONE R4 Evo.3 has been enhanced to deliver not only a racing edge, but also performance that will satisfy even the most demanding drivers.

●1/10 scale GP touring car developed for racing.
●Performance upgraded with the inclusion of previously released Evo.3 conversion kit components as standard equipment.
●Newly designed Evo.3 main chassis delivers equalized left and right flex characteristics.
●New Evo.3 one-piece engine mount changed to center-fixed type.

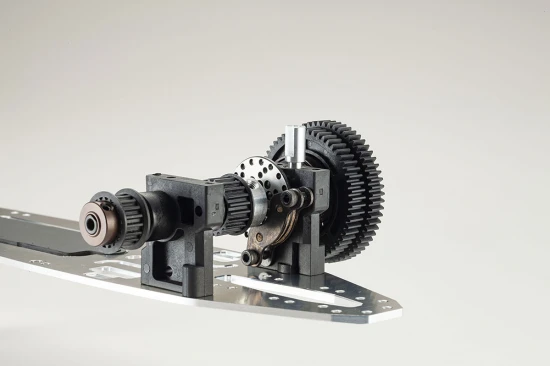

●Two types of clutch springs are included. Clutch is optimal for OS-TG12 engine.
●Two types of shock springs included, suitable for rubber tires and sponge tires respectively.

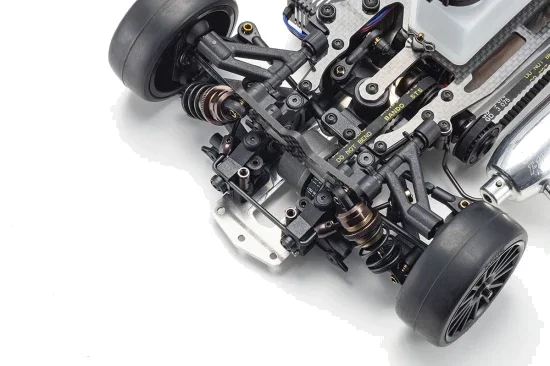

●Newly designed bar-type front stabilizer.
●Integrated side pulley shaft prevents damage to muffler in the event of a crash.
●Universal front and rear swing shafts produce excellent drive efficiency and reliability.
●Hard plated pillow balls.

＜Required for Operation＞

●2ch-3ch R/C car transmitter
●Servos x 2
●Batteries for transmitter
●Batteries for receiver (flat pack)

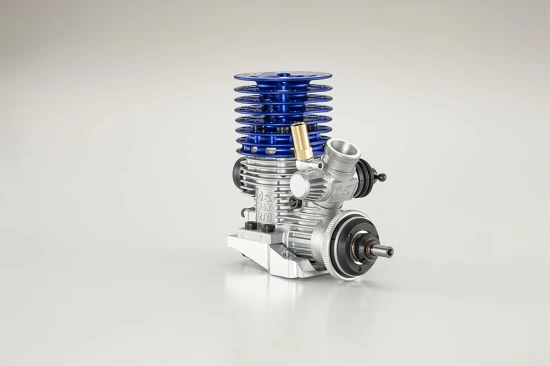

●12-15 class engine with rear exiting exhaust
●Starter box,
●Plug heater
●Glow fuel
●fuel bottle
●200mm width touring car body
●Paint for car body
●Rubber tire
●Tire inner
●Silicon oil for diff
●Silicon oil for Shock
●Tools

●Unassembled chassis kit
●Grease
●1.5mm・2.0mm・2..5mm・5.0mm L-shape hex wrench
●Cross wrench (small)

• Brand: Kyosho
• Part No: K.33217B
• Barcode: 4548565472765
• Scale: 1:10
• Power Source: Nitro
• Surface Type: On Road
• Vehicle Type: Touring / Rally Car
• Build Level: Unassembled (Kit)
