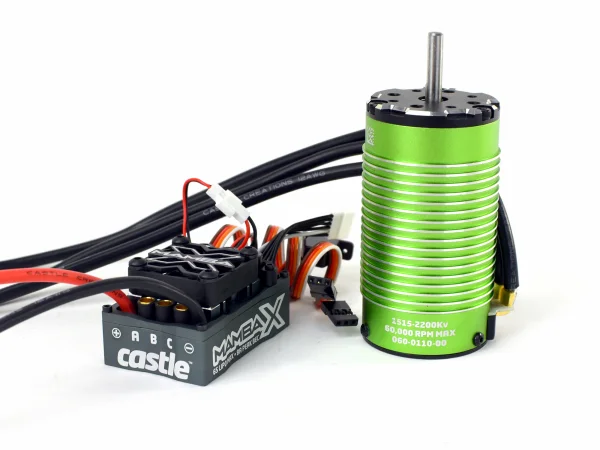

Mamba X - Sensored - 25.2V WP ESC And 1515-2200KV V2 Combo
Brand: Castle Creations
Part No: P-CC010-0155-16
Out Of Stock
Request Stock NotificationThe Castle Creations Mamba X - Sensored - 25.2V WP ESC and 1515-2200KV V2 Combo (part number P-CC010-0155-16) pairs a rugged, waterproof Mamba X ESC with the newly redesigned 1515-2200KV V2 sensored motor. The V2 motor features updated stator and rotor assemblies that boost efficiency, reduce temperatures and deliver smoother start-ups, while the ESC offers extensive tuning via Castle Link, data logging, and SmartSense for refined low-speed control.
Built to handle demanding RC applications, this combo combines precision control with robust protection, including a CNC aluminium case, potted electronics and a thermally controlled cooling fan. It is an ideal choice for performance-focused setups where smooth drivability and consistent power delivery are paramount.
In The Box
- Mamba X ESC with sensor harness and 1515-2200KV V2 sensored motor
- Mamba decals
- Driver's Ed Guide / Quick Start Guide
Application
Recommended for 3S or 4S use in a vehicle weighing less than approximately 4.08 kg and geared for no more than around 45 mph.
ESC Features
- Wide 2S–4S input voltage range
- Sensored, sensorless and SmartSense running modes
- Brushless and brushed motor operation
- Powerful integrated 8A peak adjustable BEC (5.25V–8.0V)
- Data logging capability to capture real-world performance
- AUX wire for on-the-fly adjustments via the transmitter
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX/T7PX transmitters
- Transmitter programming for six common settings including cutoff voltage and drag brake
- Castle Link USB programming support (coupon for USB adapter included; software download)
- Optional smartphone programming, firmware updates and log viewing with B-LINK Bluetooth Adapter (iOS/Android)
- Rugged CNC aluminium case, potted in waterproof epoxy
- Waterproof design for all-weather running
- Factory-equipped, thermally controlled 30 mm cooling fan
- 12 AWG high strand-count silicone power wires
- Integrated capacitors and 4 mm bullet connectors
- Audible and LED alerts for easy diagnostics
Motor Features
- Input voltage range: 2S–6S LiPo
- Redesigned rotor and stator assemblies
- Reduced magnetic cogging with less residual drag brake
- Increased efficiency for lower temperatures and longer runtimes
- Smoother start-up to reduce cogging and stutter from standstill
- Rebuildable design: replace end bell/bearing or rotor/shaft
- High-strength Kevlar wrap and 180C grade neodymium magnets
- Oversized NMB bearings and high-temperature, high-purity copper windings
- Castle 10 AWG, high-strand silicone wire with 4.0 mm bullet connectors
- High-performance 0.2 mm steel lamination stacked stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with temperature-stabilised sensors
- T6 aluminium CNC machined front/rear end bell
Data Logging
Enabled by default, the Mamba X records detailed run data including motor RPM, battery current and voltage, ESC and motor temperature, and throttle input. Review and tune via Castle Link to optimise performance and battery life; the Quick Connect Duo (sold separately) allows convenient access to both leads.
On-The-Fly Adjustment
Assign an AUX wire function in Castle Link and fine-tune settings from the transmitter while driving. Options include torque control, max throttle, max brake and drag brake for rapid real-time tuning.
Castle Link
Unlock extensive tuning parameters and free firmware updates using the included coupon for the Castle Link USB adapter and the Castle Link software suite, or the Castle Link app with a B-LINK Bluetooth Adapter.
Bluetooth Interface
Wirelessly adjust settings and view data logs with the free Castle Link app (iOS/Android) when using the compact B-LINK Bluetooth Adapter (sold separately).
SmartSense
With a Castle 4-pole, 12-slot sensored motor, SmartSense uses the sensors for ultra-smooth starts and low-speed control, then transitions to highly efficient sensorless running with electronic timing. QUIETSENSE refines startup precision and efficiency.
Telemetry Link
Telemetry-ready for Futaba T4PX and T7PX via the Castle Creations Telemetry Link for S.BUS2, providing real-time ESC temperature, voltage and RPM monitoring.
Alerts
Audible alerts assist with calibration and error diagnostics, helping identify issues such as motor over-temperature and low-voltage cutoff.
Secured by Stripe
Castle Creations commitment to excellence drives them to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!
- Mamba X ESC with Sensor Harness and 1515-2200kv V2 sensored motor
- Mamba Decals
- Driver's Ed Guide/ Quick Start Guide
This setup is recommended for 3s or 4s use in a vehicle weighing less than ~4.08Kg and geared for no more than ~45 MPH.
- Wide 2s-4s input voltage range for powering a wide variety of applications
- Sensored, Sensorless and SmartSense Running Modes
- Brushless and brushed motor operation
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (coupon for USB adapter included with purchase, Castle Link software located here)
- Optional smartphone-based programming, firmware updates and data log viewing with the B-LINK Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android
- ESC is housed in a rugged CNC aluminium case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Waterproof design for all weather conditions
- Factory equipped thermally controlled (and removable) 30mm cooling fan
- 12 AWG high strand count silicone coated copper power wires
- Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions
- Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff
- Input Voltage range: 2s-6s LiPo
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 4.0mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminium CNC Machines Front/Rear End bell
Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.
The Mamba X allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
For 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter.
You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-Link Bluetooth Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SMARTSENSE software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
Mamba X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the "unknown" parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0155-16
- Barcode: 0819326013058
