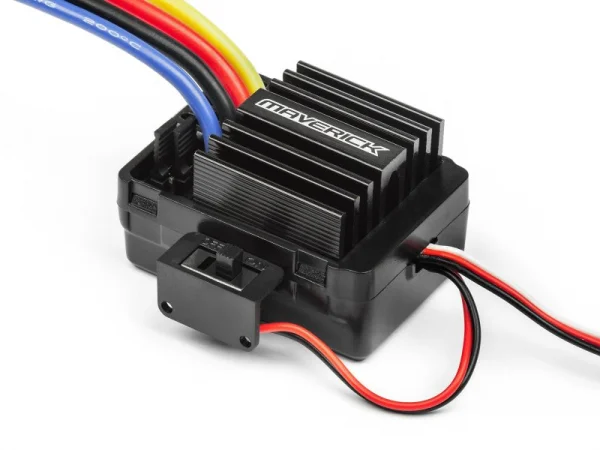

Maverick MSC-30BR-SCOUT-WP Brushed ESC

The Maverick MSC-30BR-SCOUT-WP Brushed Speed Controller (MV30002) is a durable, waterproof ESC designed for crawler driving and tough conditions. It supports 2–3S LiPo packs with built-in low-voltage protection as well as 5–9 cell NiMH/NiCd batteries, providing smooth throttle control for 1/10-scale models.

With 40A forward continuous current (180A burst) and dependable reverse output, this ESC balances performance and reliability while protecting your batteries and electronics in wet, muddy, or sandy environments.

Key Features

• Fully waterproof design for confident use in wet conditions
• 2S or 3S LiPo support with voltage protection; 5–9 cell NiMH/NiCd
• Designed specifically for crawler applications
• Forward continuous current: 40A; burst: 180A
• Reverse continuous current: 20A; burst: 90A
• Low resistance: 0.002Ω forward, 0.004Ω reverse
• PWM frequency: 1 kHz
• Compact size: 46.5 × 34 × 28.5 mm; weight: 65 g

Specifications

• Input: 2–3S LiPo, 5–9 cell NiMH/NiCd
• Motor limit (2S LiPo or 6-cell NiMH): 540/550-size ≥ 12 turn; RPM over 30,000 @ 7.2 V
• Motor limit (3S LiPo or 9-cell NiMH): 540/550-size ≥ 18 turn; RPM over 20,000 @ 7.2 V
• Forward continuous/burst current: 40A / 180A
• Reverse continuous/burst current: 20A / 90A
• Resistance: FWD 0.002 Ω, BWD 0.004 Ω
• PWM frequency: 1 kHz
• Dimensions: 46.5 × 34 × 28.5 mm
• Weight: 65 g

Suggested Compatibility

• 1/10 on-road
• 1/10 off-road buggy
• Short course truck
• Truggy
• Crawler
• Tank
• Boat
