MR33 Circle Droop Gauge V2
Brand: MR33
Part No: SCH-MR33-CDGV2
In Stock: Usually ships same day
The MR33 Circle Droop Gauge V2 (SCH-MR33-CDGV2) is a precise RC setup tool for measuring and adjusting suspension travel. Suggested compatibility: 1/10 scale touring car and FWD models.
How It Measures

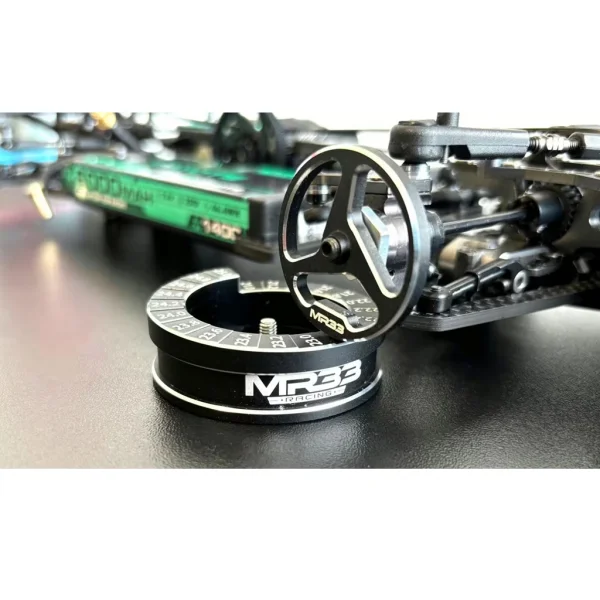

Two small integrated aluminium wheels screw onto your vehicle’s wheel axles. You then read the suspension travel at the lower edge of these wheels, so the measurement is taken at the centre of the axle. This approach minimises the influence of tolerances in wheel carriers, wishbones and other components, helping you achieve consistent droop readings.
Graduations And Measuring Range

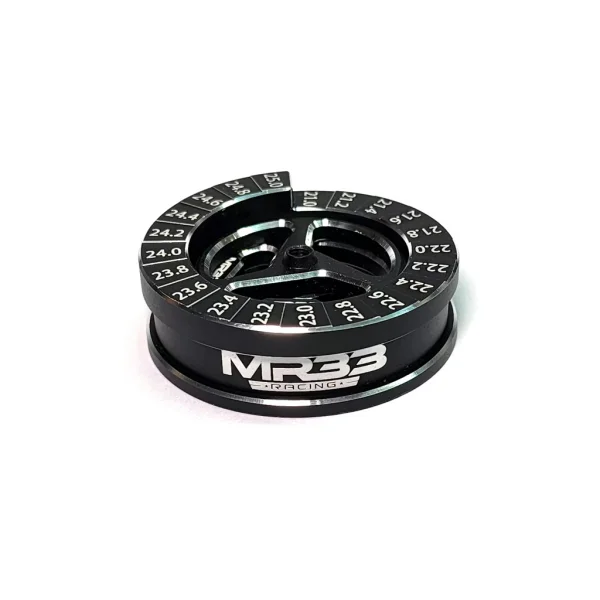

The gauge is graduated in 0.2 mm steps with a measuring range of 21.0–25.0 mm. To compare readings with your conventional droop values, simply perform a comparison measurement and note the equivalents for quick reference at the track.

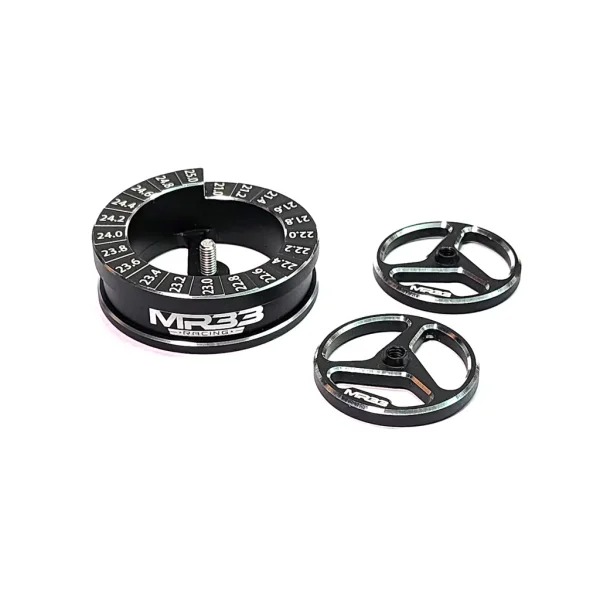

What’s Included
- MR33 Circle Droop Gauge V2
- 2 bolt-on aluminium wheels
Required To Measure
- 10 mm droop blocks on which the vehicle is placed (e.g. MR33-DB, AX014)
Secured by Stripe
Why is that?
The two small (and very practical integrated in the Droop Gauge) aluminum wheels are screwed onto the wheel axles of your vehicle.
The suspension travel is then measured at the lower edge of the aluminum wheels.
The measurement is then more accurate because you always measure at the center of the wheel axle and tolerances in wheel carriers, wishbones and other components of your vehicle no longer play a role.
How do I compare the values with my "old" Droop values?
The new MR33 Circle Droop Gauge V2 is graduated in 0.2mm steps and has a measuring range of 21.0 - 25.0mm.
In order to compare these values with the conventional old known suspension travel of your current vehicle (e.g. 4.0 or 6.0), you simply have to carry out a comparison measurement. You can then write these values in a small table, for example, so that you always know quickly how to compare the values of the "new" gauge with those of the "old" gauge on the racetrack.
Includes
MR33 Circle Droop Gauge V2
2 bolt-on aluminum wheels
What else is needed to measure the suspension travel?
10mm droop blocks on which the vehicle is placed during the measuring process (e.g. MR33-DB, AX014)
Key Info:
- Brand: MR33
- Part No: SCH-MR33-CDGV2
- Barcode: 5051294196325
