Multiplex MS-8510MG Digital Servo
Brand: Multiplex
Part No: MPX1-01724
Shadow Stock: Usually ships next day

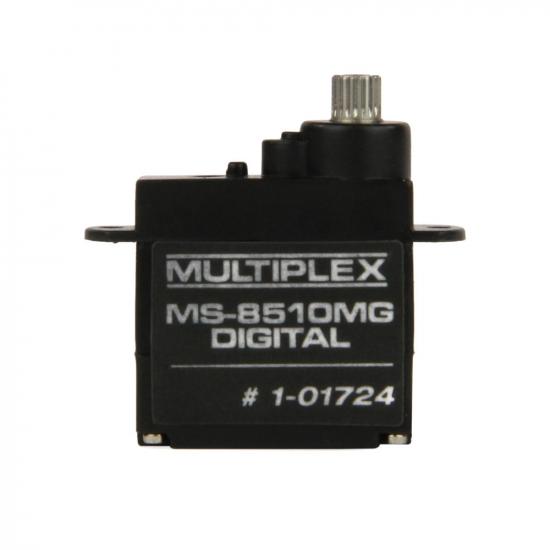

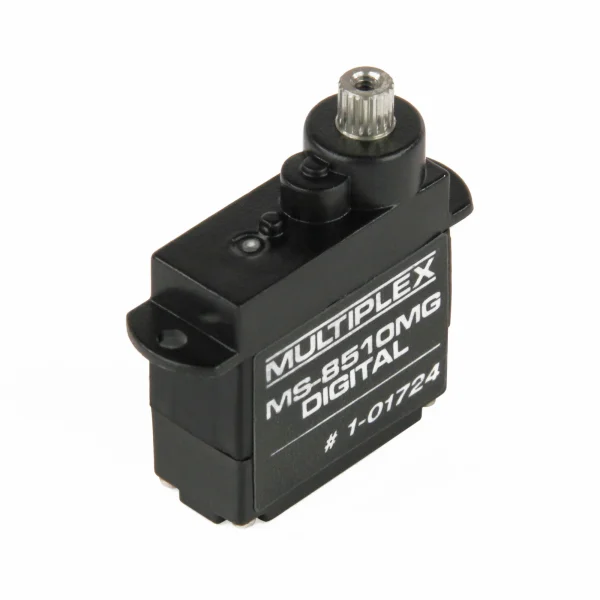

The Multiplex MS-8510MG Digital Servo (MPX1-01724) is a fast, strong and precise 5g micro servo designed for indoor shockie-style aircraft and F3K hand-launch gliders. Its premium metal gear train with sturdy aluminium gears shrugs off the knocks of indoor flying, while the supplied extended servo arm enables exaggerated control throws with an honest 60° sweep.
Key Features
- Digital micro servo with premium metal gear train
- Includes extended servo arm/horn for large throws and closed loop systems
- 15T spline output
- Lightweight, compact form factor for tight installations
- Fast response: 0.06s/60° at 6.0V
- Torque: 1.0kg.cm at 6.0V
- Operating voltage: 4.8–6.0V
Tech Specs
- Weight: 5g
- Dimensions (L×W×H): 20 × 8 × 23mm
Suggested Compatibility
- Indoor shockie-style models
- F3K hand-launch gliders (HLG)
- Indoor RC aircraft using closed-loop control setups
Secured by Stripe
Aimed specifically at indoor shockie-style aircraft and F3K hand-launch gliders the Multiplex MS-8510MG digital servo is fast, strong and very precise. Manufactured with a premium metal gear train this is a unit that will soak up the inevitable collisions that come with the harsh indoor environment. Supplied with an extended servo arm to facilitate exaggerated control surface movement and an honest 60 degree sweep, you'll not be left wanting with a handful of 8510s on board.
Specification:
| Operating voltage (V): | 4.8 - 6.0 |
| Speed at 6.0V (sec / 60 ): | 0.06 |
| Torque at 6.0V (kg.cm): | 1.0 |
| Gears: | Metal |
| Spline (teeth): | 15 |
| Bearings (No.): | 0 |
Multiplex MS-8510MG Digital Servo Tech Specs:
Multiplex MS-8510MG Digital Servo Key Features:
- Aimed specifically at indoor shockie-style aircraft and F3K hand-launch gliders the Multiplex MS-8510MG digital servo is fast, strong and very precise. Manufactured with a premium metal gear train this is a unit that will soak up the inevitable collisions that come with the harsh indoor environment. Supplied with an extended servo arm to facilitate exaggerated control surface movement and an honest 60 degree sweep, you'll not be left wanting with a handful of 8510s on board.
Specification:
Operating voltage (V): 4.8 - 6.0 Speed at 6.0V (sec / 60 ): 0.06 Torque at 6.0V (kg.cm): 1.0 Gears: Metal Spline (teeth): 15 Bearings (No.): 0 - Aimed specifically at indoor shockie-style aircraft and F3K hand-launch gliders the Multiplex MS-8510MG digital servo is fast, strong and very precise. Manufactured with a premium metal gear train this is a unit that will soak up the inevitable collisions that come with the harsh indoor environment. Supplied with an extended servo arm to facilitate exaggerated control surface movement and an honest 60 degree sweep, you'll not be left wanting with a handful of 8510s on board.
Specification:
Operating voltage (V): 4.8 6.0 Speed at 6.0V (sec / 60 ): 0.06 Torque at 6.0V (kg.cm): 1.0 Gears: Metal Spline (teeth): 15 Bearings (No.): 0 - Sturdy aluminium gear.
- Includes extended horn for closed loop systems.
- Perfect for F3K HLG and indoor models.
Multiplex MS-8510MG Digital Servo Tech Specs:
- Weight: 5g / 0.18oz
- Shipping Weight: 0.01kg / 0.03lbs
- Product Height: 23mm / 0.91in
- Product Width: 8mm / 0.31in
- Product Length: 20mm / 0.79in
- Application: Indoor / F3K / HLG
Key Info:
- Brand: Multiplex
- Part No: MPX1-01724
- Barcode: 4059818017249
