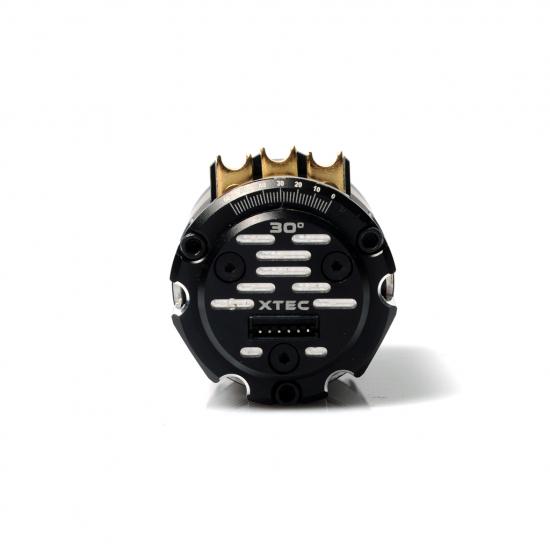

Nosram N22 Stock Spec Motor - 13.5T 30 Deg Fixed

The Nosram N22 Stock Spec Motor - 13.5T 30° Fixed (SCH-NR920211) is engineered for spec racing performance. Built around stock-specific windings and high-quality materials, it promotes excellent current flow and reliable efficiency. A robust housing with large cooling openings and an aluminium end plate helps manage temperatures when pushing hard on both on-road and off-road tracks.

Overview

This N22 Stock Spec variant features a fixed 30° timing, making it well-suited to spec classes in organised racing. The precisely adjusted sensor delivers consistent commutation, while the motor can be converted to its timable equivalent to match Nosram’s homologated N22 stock motors.

Design Highlights

• Fixed 30° timing for stock class racing consistency
• High-quality materials for optimised current flow
• Large cooling openings and aluminium end plate for improved thermal management
• Biaxial, balanced, sintered rotor shaft (2018 specification) for smooth operation
• Smaller 3x10x4 ABEC-5 precision bearings for precise, low-vibration running
• Precisely adjusted sensor for clean, efficient performance

FlowX Controller Note

When pairing with Nosram FlowX controllers, use the Hall sensor level converter cable for best results: 100mm (#NR500902) or 200mm (#NR500903).
