O.S. Engines MAX-55HZ-R 8.93cc Heli Glow Engine OSE15650

Brand: OS Engines

Part No: OSE15650

£308.19 RRP £334.99
Pre-Order

Finance options available at checkout.

Description

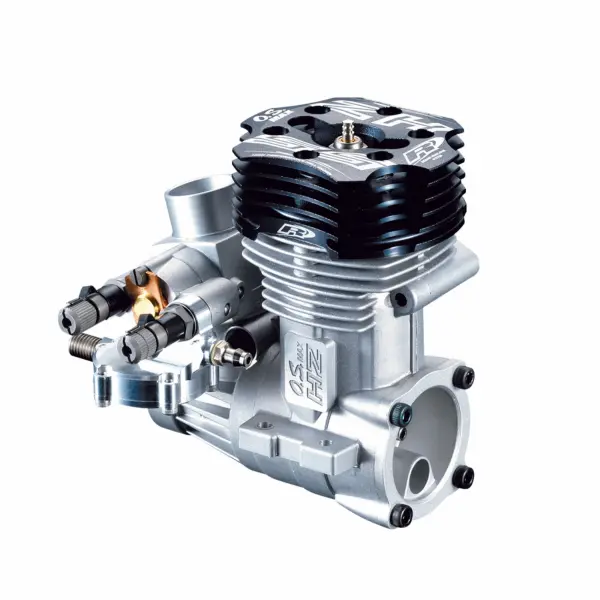

The O.S. Engines MAX-55HZ-R (8.93cc) 2-Stroke Glow Engine (Heli) with Fuel Regulator, part number OSE15650, is an 8.93cc two-stroke glow engine for radio-controlled helicopters, supplied without a silencer.

It is designed primarily for helicopter pilots who want dependable 3D performance, combining the power of a 61 size engine with the physical size of a 46. The manufacturer quotes 2.07hp at 17,000 RPM, and sport flyers who want a reliable engine may also find it suitable. A Demand Regulator System (DRS) fuel regulator is built in to give steadier fuel pressure during aggressive 3D manoeuvres.

Fuel is supplied through a Type 40L twin needle carburettor with idle mixture adjustment, and the throttle uses a four arm horn. The crankshaft is a single billet piece supported by twin bearings, running in a webbed crankcase housing. The cylinder and liner are Schnuerle ported, and the ringed piston works in a steel liner. Full spares availability is listed by the manufacturer.

The engine and muffler mounting bolt patterns are stated to be identical to those of the 50SX-H, so it may suit installations designed around that engine; this is suggested compatibility only and should be checked against your model.

Specifications

  • Displacement: 8.93cc (0.55 cu.in.)
  • Weight: 408 g
  • Practical RPM: 2,000-20,000
  • Recommended fuel: 10-30% nitro, 18% oil
  • Recommended silencer: PowerBoost Pipe 55 III

What's Included

  • MAX-55HZ-R engine with 40L-R carburettor
  • No.8 glow plug
  • In-line fuel filter
  • O.S. decal sheet

Required to Complete

  • O.S. PowerBoost Pipe 55 III
  • Glow fuel, 10-30% nitro / 18% oil

Specifications

Designed primarily for helicopter pilots who crave assured 3D performance, the 55HZ -R combines the power of a 61 with the physical size of a 46. Sharing identical engine and muffler mounting bolt patterns to the 50SX-H this is the perfect upgrade that offers significant advantages in terms of power, weight, manufacture and tuning. Significantly, the 55HZ-R incorporates a fuel regulator system (DRS) that ensures steadier fuel pressure during aggressive 3D manoeuvres.
Equally suitable for sport flyers who similarly demand unstinting reliability this pocket powerhouse delivers an impressive 2.07hp at 17,000 RPM, features the reliable Type 40L twin needle carburettor and, of course, O.S. Engines' legendary Japanese build quality.

Specification:

Recommended Fuel (5ltr): 10-30% Nitro / 18% Oil
Recommended Silencer:PowerBoost Pipe 55 III
Practical RPM: 2000-20000
Weight (g):408
Displacement (cc):8.93
Displacement (cu.in.):0.55

O.S. Engines MAX-55HZ-R (8.93cc) 2-Stroke Glow Engine (Heli) with fuel regulator Features:
  • DRS (Demand Regulator System) fuel management.
  • Twin needle carb' with idle mixture adjustment.
  • Twin bearing supported crankshaft.
  • Ringed piston with steel liner.
  • Schnuerle ported cylinder and liner.
  • Tough & rigid single billet crankshaft.
  • Ultra-tough webbed crankshaft housing.
  • Four arm throttle horn.
  • 61 size performance from a 46 size crankcase.
  • Full spares availability.
O.S. Engines MAX-55HZ-R (8.93cc) 2-Stroke Glow Engine (Heli) with fuel regulator Includes:
  • 1x MAX-55HZ-R with 40L-R carburettor.
  • 1x No.8 glow plug.
  • 1x In-line fuel filter.
  • 1x O.S. decal sheet.
O.S. Engines MAX-55HZ-R (8.93cc) 2-Stroke Glow Engine (Heli) with fuel regulator Requires:
  • 1x O.S. PowerBoost Pipe 55 III.
  • 1x 5lt glow fuel (10-30% nitro / 18% oil).


Key Info:
  • Brand: OS Engines
  • Part No: OSE15650
  • Barcode: 4531028022980
  • Format: Nitro 2 Stroke
