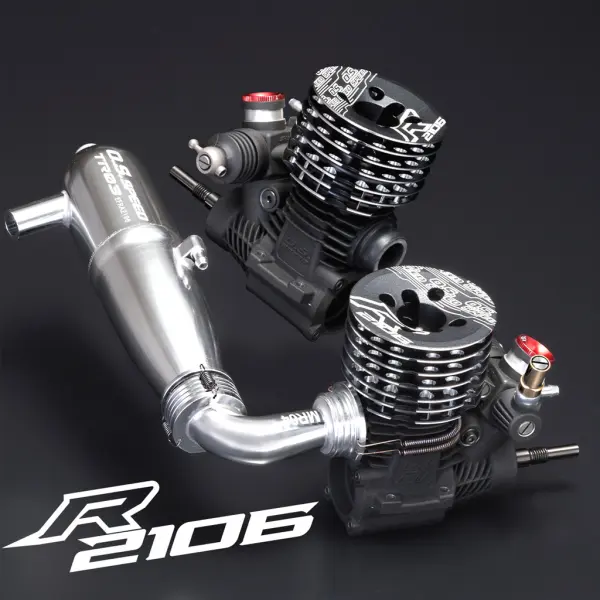

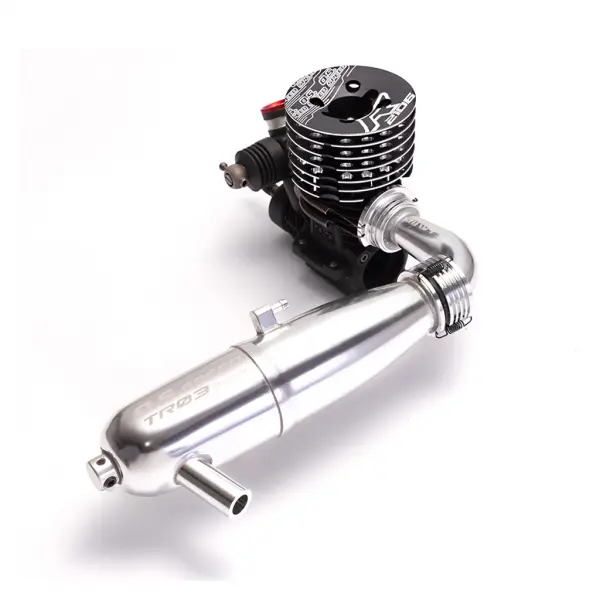

OS Engines O.S. SPEED R2106 Engine Combo SCH-OS1EY05

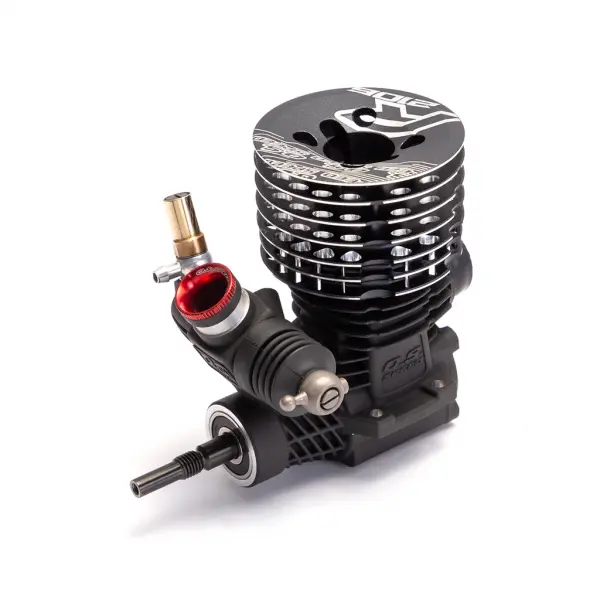

The OS Engines O.S. SPEED R2106 Combo Set TR03 EFRA2196 & MR05, part number SCH-OS1EY05, is a factory-tuned 3.49 cc engine developed for 1/8 on-road racing competition. It is designed to deliver a strong, controllable power character across the rev range, with revisions intended to improve torque, response and adjustment. The R2106 uses a new nine-port cylinder liner with redesigned porting for improved airflow and greater torque. Its crankshaft is taken from the R21 Euro II to support a stronger mid-range feel, while the ceramic rear bearing contributes to the engine’s low-end response.

Features

The reinforced connecting rod is designed to withstand the demanding conditions associated with on-road racing, with an “R” identification letter engraved on the rod. O.S. SPEED also gives the engine a black outer head with laser engraving. Revised needle, slide valve and metering needle settings are based on the 21M development from the R2105, helping make adjustment easier while supporting improved low-to-mid-range power delivery. The practical operating range extends from 4,000 to 45,000 rpm, making this a competition-focused powerplant for drivers who need both response and usable performance.

• New nine-port liner and redesigned porting for improved airflow and torque
• Reinforced connecting rod for demanding on-road racing use
• Ceramic rear ball bearing for a stronger low-end feel
• R21 Euro II crankshaft for improved mid-range feel
• Revised needle, slide valve and metering needle arrangement
• Black O.S. SPEED outer head with laser engraving

Specifications

• Displacement: 3.49 cc
• Output: 2.80 ps at 35,000 rpm
• Practical rpm range: 4,000–45,000 rpm
• Engine weight: 345 g

Included Accessories

The standard accessories provide the key engine items identified for installation and protection. The supplied glow plug is an O.S. T-RP7, and the reducer, exhaust seal ring and dust cap set support the associated installation requirements.

• Glow plug T-RP7
• 8.5 mm reducer in red
• Exhaust seal ring
• Dust cap set 12-30 with 3, 16 and 18 mm sizes
