Overlander 2200KV 3665 Motor + 90A ESC

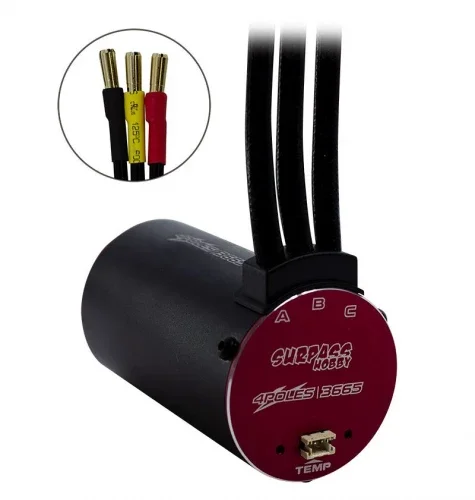

The Overlander 2200KV Rocket RC V2 Supersonic 3665 Brushless Motor + 90A ESC combo (part number OL-3583) delivers a strong balance of torque, efficiency and control for performance-focused RC builds. With a 36×65 mm motor can and a robust 90A controller, this set is engineered to handle demanding running conditions while maintaining smooth throttle response.

The motor features a high-torque, high-efficiency design and waterproof construction. The ESC is waterproof and dust-proof, with safety features and programmability to refine power delivery to your preference. Power it on 2–3S LiPo or 4–9S NiMH to suit your setup.

Key Features

• 2200KV Rocket RC V2 Supersonic 3665 brushless motor

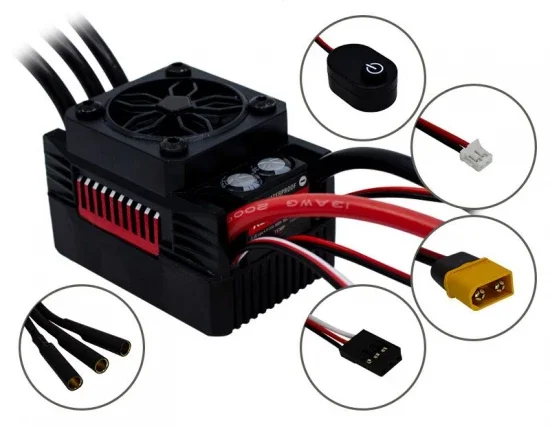

• 90A waterproof, dust-proof ESC with programmable settings
• High-torque, high-efficiency motor design
• Waterproof motor construction for all-weather running
• Designed for precise control with built-in safety features

Specifications

• KV (rpm/V): 2200
• Power: 1500W
• Maximum Amp Draw: 65A
• Idle Current: 1.8A
• LiPo Voltage Range: 2–3S
• NiMH Voltage Range: 4–9S
• Motor Diameter: 36 mm
• Motor Length: 65 mm
• Shaft Diameter: 5 mm
• Weight: 275 g
• Connectors: Motor 4 mm gold, ESC XT60
• Barcode: 6972388883244

Suggested Compatibility

• 1/10 and 1/8 scale RC cars
