Overlander 2600mAh 4S 14.8v Li-Ion Battery with PCB Flat

Brand: Overlander

Part No: OL-3302

£33.24 ~~RRP £34.99~~

Shadow Stock: Usually ships within 4-5 days

Request Price Match Ask a Question Write a Review

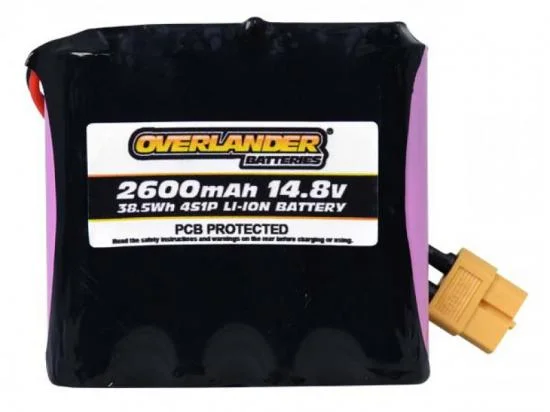

The Overlander 2600mAh 4S 14.8v Li-Ion Battery with PCB Flat (OL-3302) uses PCB-protected 18650 Samsung cells in a slim 4S1P flat pack. Supplied ready-charged and fitted with an XT60 connector, it features high-quality silicone leads to minimise resistance. The integrated protection circuit board helps prolong pack life by guarding against over-discharge, over-charge and over-current.

At just 190g and measuring 74x73x20mm, this lightweight, high energy density pack offers a 2A discharge rating, long cycle life and no memory effect, along with a wide operating temperature range.

Key Features

PCB protected 18650 Samsung cells
4S1P, 14.8V Li-Ion chemistry with 2600mAh capacity
Integrated PCB protection against over-discharge, over-charge and over-current
High-quality silicone leads to minimise resistance
XT60 connector, supplied ready-charged
Lightweight flat-pack design: 74x73x20mm, 190g
High energy density, long cycle life and no memory effect
Wide operating temperature range

Specifications

Capacity: 2600mAh
Voltage: 14.8V (4S1P / 4 cell)
Discharge Current: 2A
Dimensions: 74 x 73 x 20 mm
Weight: 190g
Connector: XT60
Chemistry: Li-Ion (18650 Samsung cells)
Format: Flat pack
SKU: 3302

Suggested Applications

Portable electronics
Handheld devices
Medical equipment

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

PCB PROTECTED 18650 SAMSUNG CELLS

These 18650 Li-Ion cells from Samsung can be integrated into a wide range of electronic devices., including portable electronics, handheld devices and medical equipment. This 14.8V 4S1P flat battery is fitted with high-quality silicone leads that are able to minimise resistance and sustain high currents.

SPECIFICATIONS • Capacity: 2600mAh • Voltage: 4S1P / 4 Cell / 14.8V • Discharge Current: 2A • Weight: 190g • Dimensions: 74x73x20mm • Connector: XT60

The integrated protection circuit board (PCB) is essential to prolonging the life of the battery, as well as providing addition protection against over discharge, over charge and over current.

These packs are supplied ready-charged and fitted with XT60 connectors for immediate use. They are lightweight with a high energy density and long cycle life. With no memory effect and a wide operating temperature range, these packs stay healthier for longer.

Overlander 2600mAh 4S 14.8v Li-Ion Battery with PCB Flat Specification:

SKU: 3302
Length (mm): 74
Width (mm): 73
Depth (mm): 20
Weight (g): 190
Chemistry: LiIon
Battery Capacity: 2600
Voltage: 14.8
Cell Number: 4
Voltage: 14.8v (4S)

Key Info:

Brand: Overlander
Part No: OL-3302
Barcode: 5060470212438
