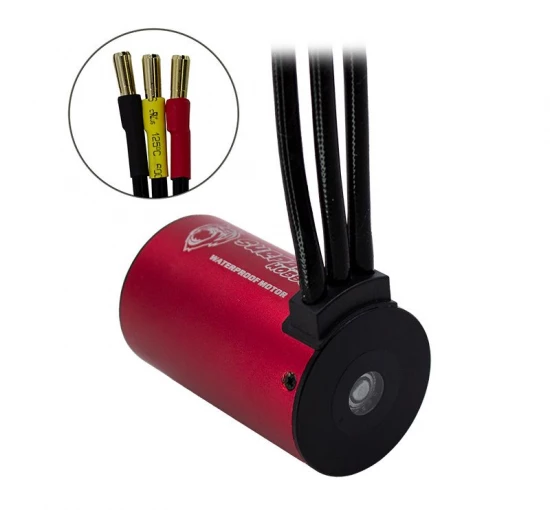

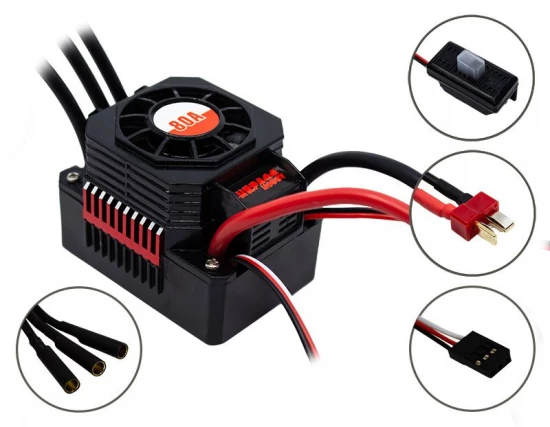

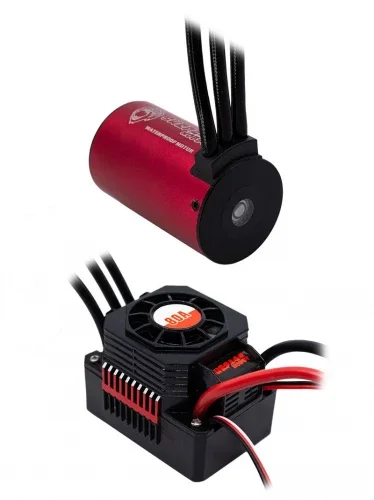

Overlander 3500KV Rocket RC Waterproof 3660 Brushless Motor + 80A ESC for 1:10 Cars

The Overlander 3500KV Rocket RC Waterproof 3660 Brushless Motor + 80A ESC combo (part number OL-3562) offers a robust and versatile power system for electric RC cars. Supporting 2–3S LiPo and 4–9S NiMH packs, this 900W, 3500KV setup is engineered for dependable performance, with waterproof construction to handle wet running conditions.

Suggested Compatibility

• 1/10 scale electric RC cars
• 1/8 scale electric RC cars

Key Specifications

• Motor KV (rpm/V): 3500
• Power: 900W
• ESC Continuous Current: 80A
• Maximum Amp Draw: 92A
• Battery Support: 2–3S LiPo; 4–9S NiMH
• Motor Size: 3660 (Diameter 36 mm x Length 60 mm)
• Shaft Diameter: 3.175 mm
• Idle Current: 2.8 A
• Weight: 228 g
• Connectors: Motor 4 mm gold bullets; ESC Deans (T-plug)
• Waterproof design
• Barcode: 5060470214210

This Rocket RC combo brings together a 3660 can-size brushless motor and a matched 80A ESC for a balanced blend of torque and top-end speed on 2S–3S setups. The included 4 mm motor bullets and Deans connector simplify installation, while clearly defined current and voltage ranges assist with sensible gearing and battery selection.
