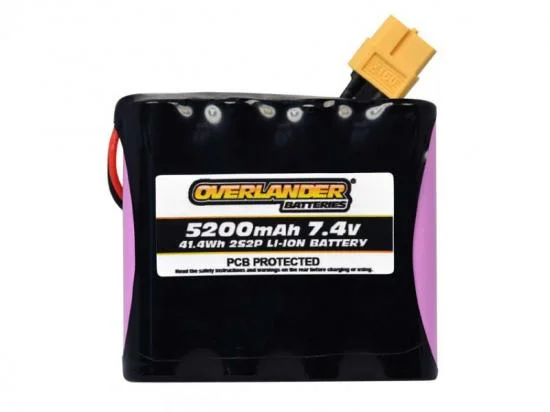

Overlander 5200mAh 7.4V 2S2P Li-Ion Battery, PCB XT60
Brand: Overlander
Part No: OL-3306
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Description
The Overlander 5200mAh 2S2P 7.4V Li-Ion Battery with PCB Flat (OL-3306) combines proven Samsung 18650 cells with an integrated protection circuit board for dependable performance and added safety. Supplied ready-charged and fitted with an XT60 connector, this flat 2S2P pack features high-quality silicone leads to help minimise resistance and sustain higher currents.
Designed for versatility, the pack offers high energy density, long cycle life, no memory effect and a wide operating temperature range. The PCB provides protection against over discharge, over charge and over current to help prolong service life.
Suggested Applications
- Portable electronics
- Handheld devices
- Medical equipment
Key Features
- Samsung 18650 Li-Ion cells
- Integrated PCB for over discharge, over charge and over current protection
- Ready-charged and fitted with XT60 connector
- High-quality silicone leads to reduce resistance
- High energy density with long cycle life
- No memory effect and wide operating temperature range
Specifications
- Capacity: 5200mAh
- Voltage: 7.4V (2S2P / 4 cell)
- Discharge Current: 2A
- Dimensions: 73 x 70 x 20mm
- Weight: 190g
- Connector: XT60
- Chemistry: Li-Ion
- Cells: Samsung 18650
- Protection: Integrated PCB
Secured by Stripe
Overlander 5200mAh 2S2P 7.4v Li-Ion Battery with PCB Flat Manuals & Guides
How-To Guides & Articles
Specifications
PCB PROTECTED 18650 SAMSUNG CELLS
These 18650 Li-Ion cells from Samsung can be integrated into a wide range of electronic devices., including portable electronics, handheld devices and medical equipment. This 7.4V 2S2P flat battery is fitted with high-quality silicone leads that are able to minimise resistance and sustain high currents.
SPECIFICATIONS • Capacity: 5200mAh • Voltage: 2S2P / 4 Cell / 7.4V • Discharge Current: 2A • Weight: 190g • Dimensions: 73x70x20mm • Connector: XT60The integrated protection circuit board (PCB) is essential to prolonging the life of the battery, as well as providing addition protection against over discharge, over charge and over current.
These packs are supplied ready-charged and fitted with XT60 connectors for immediate use. They are lightweight with a high energy density and long cycle life. With no memory effect and a wide operating temperature range, these packs stay healthier for longer.
Overlander 5200mAh 2S2P 7.4v Li-Ion Battery with PCB Flat Specification:
- SKU: 3306
- Length (mm): 73
- Width (mm): 70
- Depth (mm): 20
- Weight (g): 190
- Chemistry: LiIon
- Battery Capacity: 5200
- Voltage: 7.4
- Cell Number: 4
- Voltage: 7.4v (2S2P)
Key Info:
- Brand: Overlander
- Part No: OL-3306
- Barcode: 5060470212476
