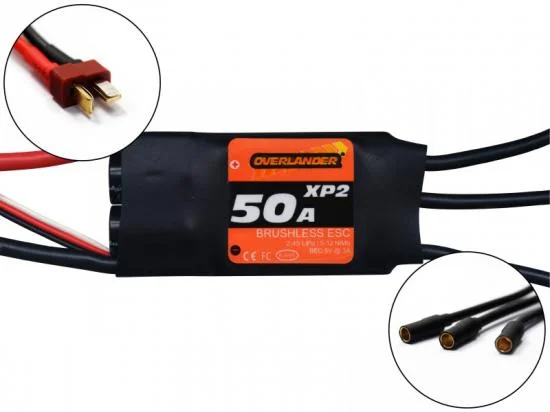

Overlander Overlander XP2 50A Brushless ESC - RTF Speed Controller
Brand: Overlander
Part No: OL-3279
Shadow Stock: Usually ships within 4-5 days
The Overlander XP2 50A Brushless ESC (OL-3279) is an RTF speed controller pre-fitted with a Deans battery connector and 3.5 mm gold motor connectors. Designed for sensorless brushless motors, it provides smooth startup, excellent throttle linearity and quick response, with convenient setup via a program card or the ESC key.
Key Features
- Comprehensive protection: low voltage, over-heat, throttle signal loss, startup protection and self-check
- Compatible with most sensorless brushless motors
- Excellent startup performance, linear throttle and rapid response
- Supports max motor speeds: 210,000 RPM (2-pole), 70,000 RPM (6-pole), 35,000 RPM (12-pole)
- Easy configuration with program card
- Automatic throttle neutral point detection
- Three timing modes to match different motors
- Three start-force adjustment modes
- Governor mode for heli
- Selectable reverse motor direction
Specifications
- Continuous current: 50 A (burst 70 A for 10 s)
- Input voltage: 2–4S Li‑Po or 5–12 NiMH
- BEC output: 3 A / 5 V
- Low-resistance PCB
- Dimensions: 60 × 28 × 8 mm
- Weight: 38 g
- Battery lead: 12 AWG (red/black), fitted with Deans connector
- Motor leads: 14 AWG (blue), fitted with 3.5 mm gold connectors
Guidance: a rule of thumb is 1 servo per 1 A of BEC. For setups using four or more servos, consider a separate RX pack or an uprated UBEC.
Secured by Stripe
Overlander XP2 50A Brushless ESC - RTF Speed Controller
READY TO FLY! Now fitted with Deans connector for the battery and 3.5mm gold connectors for the motor!
DESCRIPTION
This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use.
XP2 50A Brushless speed controller features
• Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check.
• Compatible with most sensor less brushless motors.
• Excellent startup performance, great throttle linear and quick throttle response.
• Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles).
• Easy configured with program card.
• System can automatically detect throttle neutral point.
• 3 timing modes can match different motors.
• 3 modes of start force adjustment.
• Governor mode for heli
• Reverse motor direction
SPECIFICATION
• Low resistance PCB
• Input Voltage: Support 2-4 cell Li-Po, 5-12 Nimh
• Continue current: 50A, (Burst max 70A 10 secs)
• BEC output: 3A/5V
• Dimensions: 60x28x8 mm
• Weight: 38g
• Blue Motor Wire 14AWG
• Red and Black Battery Wire 12AWG
• Fitted with 3.5mm gold connectors
Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
Key Info:
- Brand: Overlander
- Part No: OL-3279
- Barcode: 5060470212070
