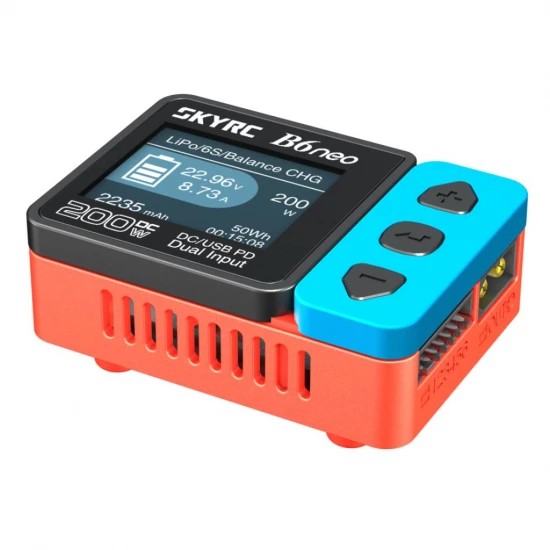

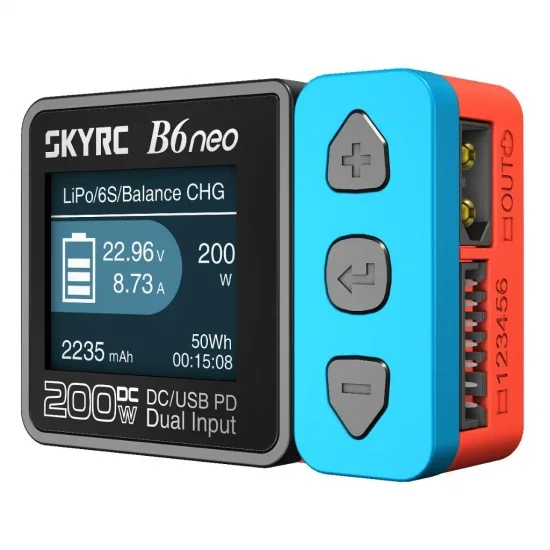

Overlander SKYRC B6neo Smart Charger

The SkyRC B6neo is a compact and efficient charger, designed for those needing portable and powerful charging solutions. Despite its small size—measuring just 70 x 50 x 32mm and weighing 82g—the B6neo delivers up to 200W of charging power when connected to a DC power source, and up to 80W via USB Type-C PD input. It supports a wide range of battery types, including LiPo, LiFe, LiIon, LiHV (1-6 cells), NiMH, NiCd (1-15 cells), and Pb (3S/6S), making it versatile for various RC applications.

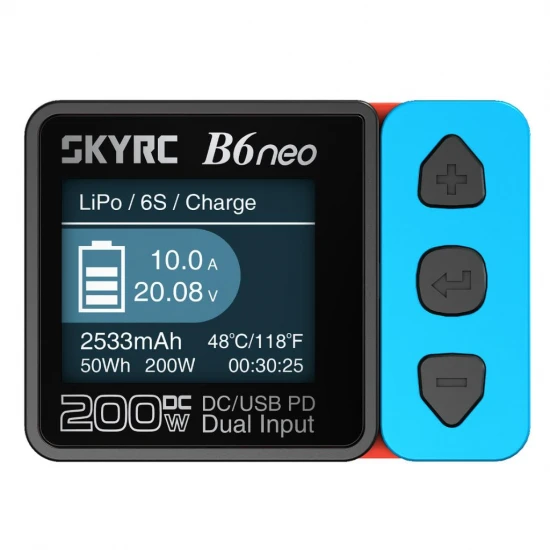

Equipped with an intuitive 1.77-inch colour display, the B6neo provides real-time charging status and battery information. Its built-in balance port enhances charging efficiency and battery longevity by ensuring balanced cell charging. The charger also features multiple safety protections, including short-circuit, over-temperature and over-voltage safeguards, ensuring safe and reliable operation.

High Power Output: Delivers up to 200W on DC input and 80W via USB Type-C PD, enabling fast and efficient charging.

Wide Battery Compatibility: Supports multiple battery types and configurations, offering versatility for various RC models.

Compact and Lightweight Design: Small footprint and light weight make it highly portable for field use.

Intuitive Colour Display: Provides clear, real-time information on charging status and battery health.

Enhanced Safety Features: Includes protections against short-circuit, over-temperature, and over-voltage, ensuring safe operation.

Firmware Upgrades: Available via the SkyRC Charge Master PC software.

• SkyRC B6neo charger
• Quick start guide

Always use the SkyRC B6neo Charger in accordance with the manufacturer’s instructions. Ensure compatibility between the charger and the battery type before use. Never leave the charger unattended during operation. Place the charger on a non-flammable surface and provide adequate ventilation. Regularly inspect the charger and cables for damage; do not use if any defects are found. Improper handling can lead to fire, injury or battery failure. Dispose of batteries responsibly according to local regulations.

• SKU: 3542
• Barcode: 6930460008008
• Input: DC 10-28V / PD 12-20V
• Charge Current Range: 0.1 - 10A
• Discharge Current Range: 0.1 - 2A
• Output Power: DC 200W maximum / PD 80W maximum
• Discharge Power: 24W maximum
• Balance Current: 500mA maximum
• Compatible Chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCd and PB
• Lithium Cell Count: 1 - 6S (3.7V, 7.4V, 11.1V, 14.8V, 18.5V and 22.2V)
• NiMH / NiCd Cell Count: 1 - 15 cells (1.2V, 2.4V, 3.6V, 4.8V, 6V, 7.2V, 8.4V, 9.6V, 10.8V, 12V, 13.2V, 14.4V, 15.6V, 16.8V and 18V)
• PB Voltage Range: 3S / 6S
• Brand: SkyRC
• Dimensions: 70 x 50 x 32 (mm)
• Weight: 82 (g)

• Brand: Overlander
• Part No: OL-3542
• Barcode: 6930460008008
