Overlander SKYRC PC1080 1080W 20A AC Dual LiPo Charger
Brand: Overlander
Part No: OL-3203
Temporarily unavailable
This item can't be ordered at the moment. We suggest this instead:
ReplacementSkyRC PC1080 1080W 20A Dual 6S Lipo ChargerPart No: SCH-SK-100124
View item
Customers Also Buy
Popular with customers who buy products like the Overlander Skyrc Pc1080 1080W 20A AC Dual Lipo Charger
Description

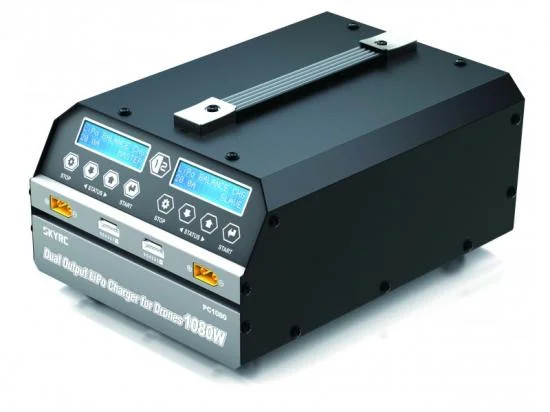

The Overlander SKYRC PC1080 (part number OL-3203) is a high-output, dual-channel AC charger designed to charge two 6S LiPo batteries simultaneously. With a total output of 1080W (540W x 2) and adjustable charge current up to 20A per channel, it delivers fast, controlled charging for LiPo and LiHV packs.
Built for accuracy and consistency, the PC1080 integrates a battery voltage meter, an internal resistance meter and a Current Log to review the charging current from the previous session. Master-Slave and Synchronous Modes let you link multiple chargers via the master channel for coordinated operation when handling the same batteries. Comprehensive protection, including short-circuit, reverse polarity and over-temperature safeguards, plus balance, storage and fast charge working modes, help protect your packs and streamline routine charging.
Key Features
- Dual-channel design to charge two 6S LiPo batteries at once
- Supports LiPo and LiHV balance charging
- Adjustable charge current: 0.1–20A x 2
- Battery voltage meter and internal resistance meter
- Balance, Storage and Fast Charge modes
- Master-Slave control mode
- Synchronous Mode for linking multiple chargers via data cable
- Firmware updates available via USB port
- Current Log records the charging current from the last use
- Protection: short circuit, reverse polarity and over temperature
Specifications
- Input voltage: 100–240V
- Total output power: 1080W (540W x 2)
- Discharge power: 100W (50W x 2)
- Charge current: 0.1–20A x 2
- Balance current: 1.2A
- Battery types: LiPo / LiHV
- Battery cell count: 6S x 2
- Working modes: Balance, Storage, Charge
- Dimensions: 272 x 202 x 119 mm
- Net weight: 4880 g
Secured by Stripe
Overlander Skyrc Pc1080 1080W 20A AC Dual Lipo Charger Manuals & Guides
Manuals & Guides
Specifications
The SKYRC PC1080 is a dual channel charger, which can charge two 6S LiPo batteries simultaneously. It is also equipped with master-slave control mode, which allows you to synchronize more than one charger when charging the same batteries.
This charger features:
• Battery voltage meter.
• Battery internal resistance meter.
• Adjustable charging current.
• Master-Slave mode.
• LiPo & LiHV balance charge.
• Balance, storage and fast charge.
• Firmware update available via USB port.
• Current Log that recordes the charging current of the last use.
• Synchronous Mode which can synchronise chargers with a data cable via the master channel.
• Short circuit, reverse polarity and over temperature protection.
SPECIFICATIONS Input Voltage 100-240V Output Power
1080W (540W x 2)
Discharge Power 100W (50W x 2) Charge Current 0.1-20A x 2 Balance Current 1.2A Battery Type LiPo / LiHV Battery Cell Count 6S x 2 Working Mode
Balance
Storage
Charge
Dimensions 272 x 202 x 119mm Net Weight 4880g
Key Info:
- Brand: Overlander
- Part No: OL-3203
- Barcode: 6930460004291
- Input Voltage: 240V (UK mains)
- Chemistry: LiPo
- Included Connectors: XH LiPo Balancers
