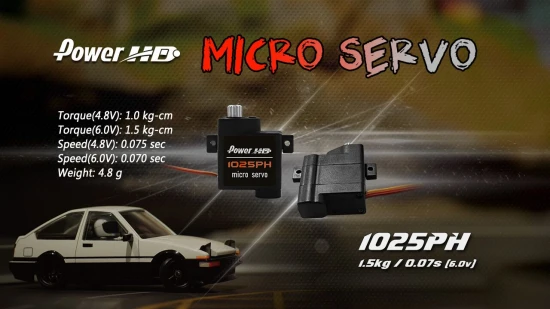

Power HD 1025PH Micro Servo 1.5kg 0.07s (HD-1025PH)

The Power HD 1025PH (HD-1025PH) is a lightweight micro servo that delivers quick response and dependable torque in a compact metal‑geared package. Weighing just 4.8 g, it offers up to 1.5 kg‑cm at 6.0 V with a swift 0.070 s transit speed, making it well-suited to space‑constrained RC projects. A single ball bearing supports the output shaft for smooth operation, while the JR‑type 150 mm lead simplifies receiver connection.

Operating across 4.8–6.0 V DC, the 1025PH combines a durable metal gear train with a precise 1520 μs/50 Hz control signal, all within a 17.2 × 9.0 × 18.7 mm footprint. Its DC motor and compact form factor make it a practical choice where low weight and reliable actuation are important.

Key Specifications

• Torque (4.8 V): 1.0 kg‑cm (13.89 oz/in)
• Torque (6.0 V): 1.5 kg‑cm (20.83 oz/in)
• Speed: 0.075 s (4.8 V) / 0.070 s (6.0 V)
• Operating Voltage: 4.8–6.0 V DC
• Weight: 4.8 g (0.17 oz)
• Bearing Type: 1 x ball bearing
• Motor Type: DC motor
• Gear Type: Metal
• Connector Wire Length: JR 150 mm
• Operating Temperature: −10°C to 50°C
• Working Frequency: 1520 μs / 50 Hz
• Size: 17.2 × 9.0 × 18.7 mm (0.68 × 0.35 × 0.74 in)
