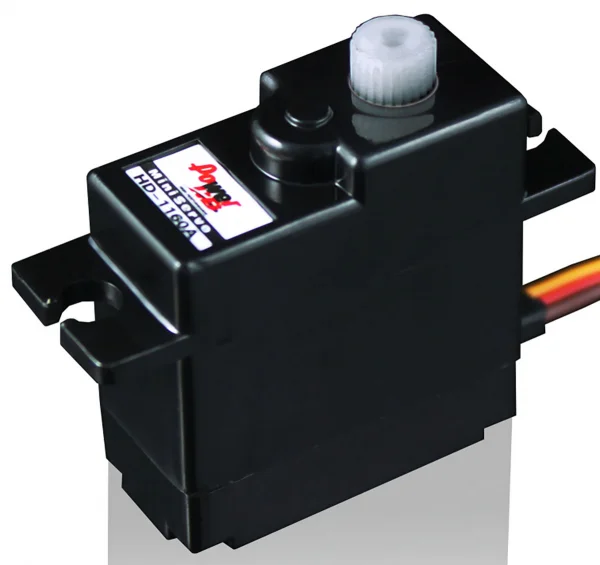

Power HD 1160A Mini High Torque Servo (0.12s, 2.7kg)
Brand: Power HD
Part No: HD-1160A
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Power HD 1160A Mini High Torque Servo - 2.7Kg - 0.12s
Description
The Power HD 1160A mini high torque analog servo (part HD-1160A) offers quick response in a compact 16 g package. With a 0.12 s/60° transit time at 6.0V and a mini footprint of 29.0 x 11.7 x 30.2 mm, it is well-suited to space-conscious control applications where a reliable mini RC servo is required.
Key performance figures are provided below as specified by Power HD.
Specifications
- Modulation: Analog
- Torque:
- 4.8V: 41.70 oz-in (3.00 kg-cm)
- 6.0V: 37.50 oz-in (2.70 kg-cm)
- Speed:
- 4.8V: 0.14 sec/60°
- 6.0V: 0.12 sec/60°
- Weight: 0.56 oz (16.0 g)
- Length: 1.14 in (29.0 mm)
- Width: 0.46 in (11.7 mm)
- Height: 1.19 in (30.2 mm)
Secured by Stripe
Power HD 1160A Mini High Torque Servo - 2.7Kg - 0.12s Manuals & Guides
How-To Guides & Articles
Specifications
- Modulation:Analog
- Torque:4.8V: 41.70 oz-in (3.00 kg-cm)
6.0V: 37.50 oz-in (2.70 kg-cm) - Speed:4.8V: 0.14 sec/60°
6.0V: 0.12 sec/60° - Weight:0.56 oz (16.0 g)
- Length:1.14 in (29.0 mm)
- Width:0.46 in (11.7 mm)
- Height:1.19 in (30.2 mm)
Key Info:
- Brand: Power HD
- Part No: HD-1160A
- Barcode: 6953524540047
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
That is a 3 wire servo.
For more in depth queries, please contact us.
