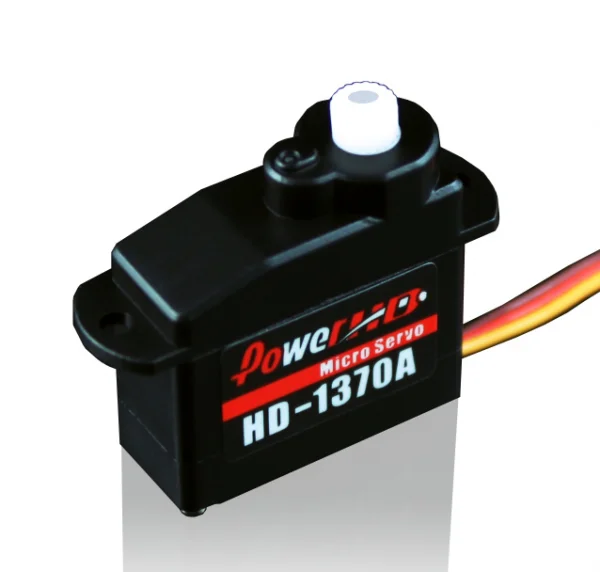

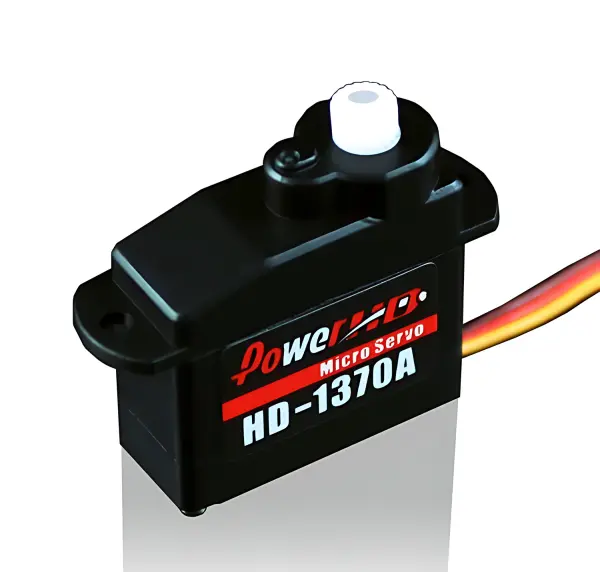

Power HD 1370A Mini Servo 0.4kg 0.1s
Brand: Power HD
Part No: HD-1370A
In Stock: Usually ships same day
Finance options available at checkout.
Description
The Power HD 1370A Mini Servo (part HD-1370A) is an ultra-compact, lightweight solution for space- and weight-sensitive projects. Weighing just 3.7 g with plastic gears and a DC motor, it offers responsive control across a standard 4.8–6.0 V operating range.
This mini servo delivers quick transit times and usable torque for small mechanisms, making it a practical choice where minimal size is essential.
Key Specifications
- Torque (4.8 V): 0.4 kg-cm (5.5 oz/in)
- Torque (6.0 V): 0.6 kg-cm (8.3 oz/in)
- Speed: 0.12 s (4.8 V) / 0.10 s (6.0 V)
- Operating voltage: 4.8–6.0 V DC
- Weight: 3.7 g (0.13 oz)
- Bearing type: none
- Motor type: DC motor
- Gear type: plastic
- Operating temperature: −20°C to 60°C
- Working frequency: 1520 μs / 50 Hz
- Size: 20.2 × 8.5 × 17.6 mm (0.79 × 0.33 × 0.69 in)
Secured by Stripe
Power HD 1370A Mini Servo - 0.4kg 0.1s Manuals & Guides
How-To Guides & Articles
Specifications
Torque(4.8V): 0.4 kg-cm (5.5 oz/in)
Torque(6.0V): 0.6 kg-cm (8.3 oz/in)
Speed: 0.12 sec (4.8V) │ 0.10 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 3.7 g (0.13 oz)
Bearing Type：no
Motor Type：DC Motor
Gear Type：Plastic
Operating Temperature：-20℃~60℃
Working frequency：1520μs / 50hz
Size：20.2 x 8.5 x 17.6 mm ( 0.79 x 0.33 x 0.69 in)
Key Info:
- Brand: Power HD
- Part No: HD-1370A
- Barcode: 6953524540078
