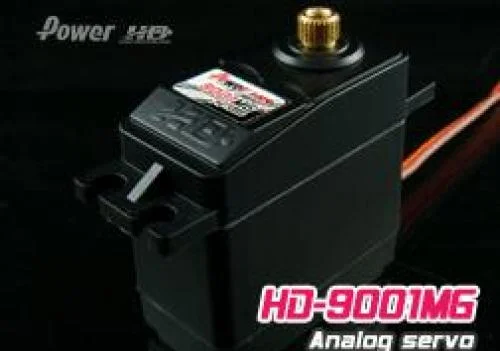

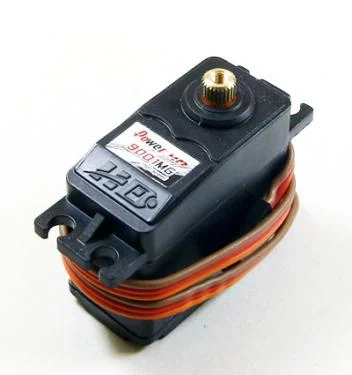

Power HD 9001MG Metal Gear Servo 9.8kg-cm 0.14s

The Power HD 9001MG (HD-9001MG) is a high-torque, metal-geared servo designed for reliable, smooth control. Delivering up to 9.8 kg-cm at 6.0 V with a swift 0.14 s transit speed, it pairs durable copper and aluminium gears with dual ball bearings for consistent performance.

Key Specifications

• Torque (4.8 V): 8.6 kg-cm (119.4 oz-in)
• Torque (6.0 V): 9.8 kg-cm (136.1 oz-in)
• Speed: 0.16 s (4.8 V) / 0.14 s (6.0 V)
• Operating Voltage: 4.8–6.0 V DC
• Weight: 56.0 g (1.98 oz)
• Bearing Type: Ball bearing x 2
• Motor Type: DC motor
• Gear Type: Copper & aluminium
• Operating Temperature: -10℃ to 60℃
• Working Frequency: 1520 μs / 50 Hz
• Size (L x W x H): 40.7 x 20.5 x 39.5 mm (1.60 x 0.81 x 1.56 in)

A compact, robust option for projects requiring dependable torque and quick response within a 4.8–6.0 V system, the 9001MG offers solid value and proven Power HD build quality.
