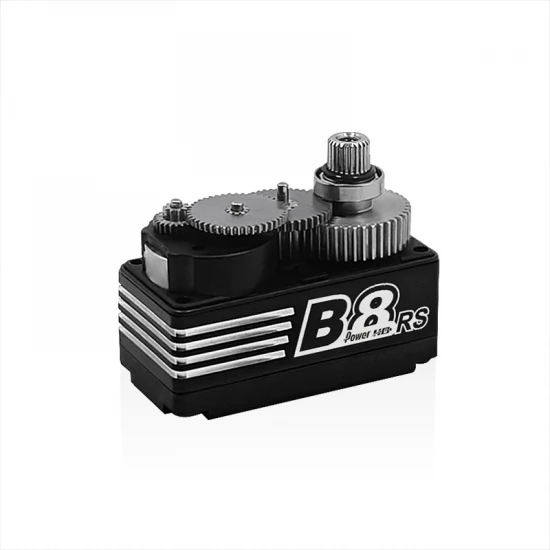

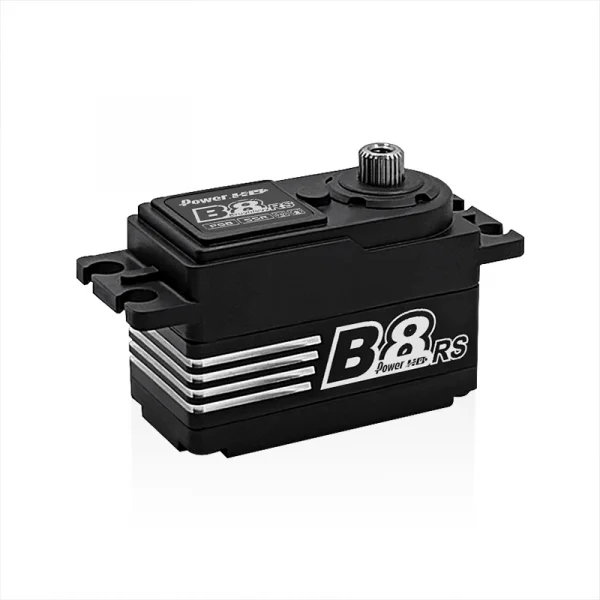

Power HD B8RS Brushless Low Profile Servo - 30kg 0.075s

Developed with pro drivers, the Power HD B8RS (HD-B8-RS) is a 55 g brushless servo designed for 1/10 on-road and electric-buggy racing. Engineered for ultra-lightweight setups with low current draw, massive torque and razor-sharp response, it delivers 30 kg·cm torque and 0.075 s transit speed at 8.4 V. A brushless motor, dual ball bearings and a robust 7075 aluminium/steel geartrain provide smooth, durable performance.

Features

• Operating voltage range: 6.0–8.4 V (30 kg·cm / 0.075 s at 8.4 V)
• Brushless motor with low current draw and fast response
• Steel/7075 geartrain for strength and longevity
• Dual ball bearings for precise, smooth movement
• 18 cm black servo lead
• Programmable via Power HD PG-CB63 servo program box (compatible with program box only)

High-Speed Protocol Support

• FLYSKY Noble NB4+ Pro: NOR / SR / SFR
• FUTABA: NOR / SR / UR
• SANWA: NOR / SHR / SSR / SUR / SXR

Specifications

• Speed: 0.097 s (6.0 V) / 0.085 s (7.4 V) / 0.075 s (8.4 V)
• Torque: 20.0 kg·cm (6.0 V) / 26.0 kg·cm (7.4 V) / 30.0 kg·cm (8.4 V)
• Operating voltage: 6.0–8.4 V DC
• Max current: 3.0 A
• Working frequency: 1520 µs / 333 Hz
• Size: 41.0 × 20.0 × 29.0 mm
• Weight: 55 g
• Bearing type: 2 × ball bearings
• Gear type: 7075 + steel
• Motor type: Brushless

Suggested Compatibility

• 1/10 on-road race chassis
• 1/10 electric buggies
