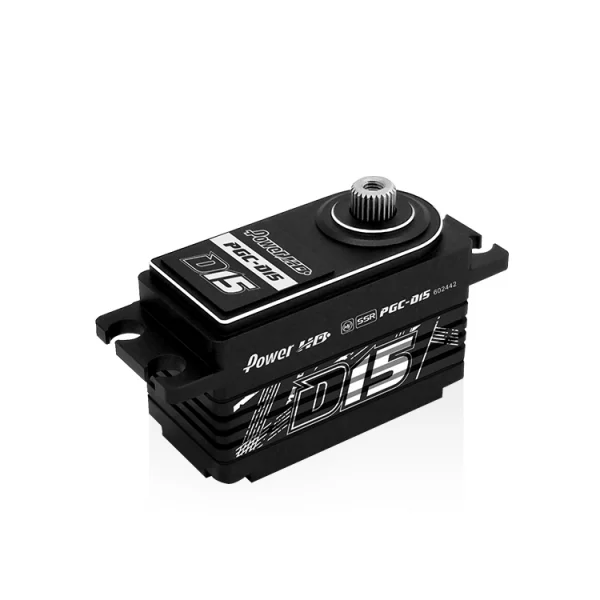

Power HD D15 Low Profile Servo Aluminium Case - 18kg - 0.085s

The Power HD D15 (HD-D15) is a low profile HV digital servo housed in a robust aluminium case. A coreless motor, dual ball bearings and a titanium & steel gear train deliver fast response and solid torque, reaching 18.0 kg-cm at 8.4V with a swift 0.085s transit time.

Key Features

• HV, digital control with coreless motor
• Aluminium case for strength and heat dissipation
• Titanium & steel gears for durability
• Dual ball bearings for smooth, precise output
• Compact, low profile form factor

Specifications

• Torque: 13.5 kg-cm (187.5 oz-in) @ 6.0V
• Torque: 16.5 kg-cm (229.1 oz-in) @ 7.4V
• Torque: 18.0 kg-cm (250.0 oz-in) @ 8.4V
• Speed: 0.10 s @ 6.0V; 0.095 s @ 7.4V; 0.085 s @ 8.4V
• Operating voltage: 6.0–8.4 V DC
• Weight: 55.0 g (1.94 oz)
• Bearings: Ball bearing x 2
• Motor type: Coreless
• Gear type: Titanium & steel
• Operating temperature: -20°C to 60°C
• Working frequency: 1520 μs / 333 Hz
• Size: 41.0 x 20.0 x 26.3 mm (1.61 x 0.79 x 1.04 in)
