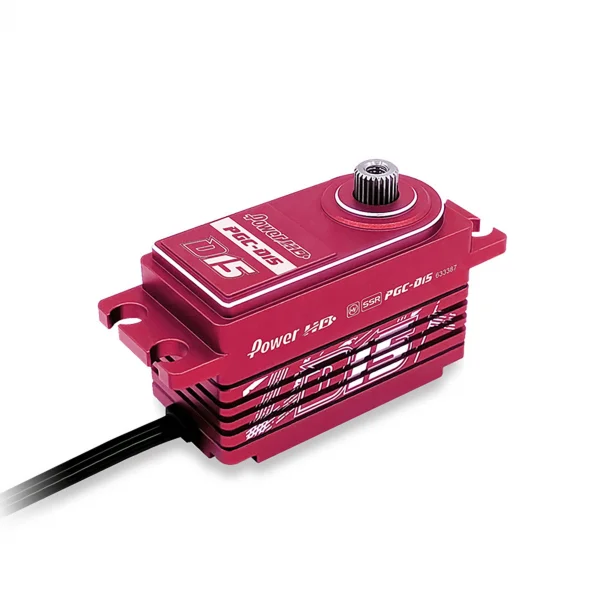

Power HD D15 Red Low Profile Servo Aluminium Case - 18kg - 0.085s

The Power HD D15 Red Low Profile Servo (HD-D15R) delivers fast response and strong torque in a compact package with an aluminium case. At 8.4V it provides up to 18.0 kg-cm of torque with a 0.085 s transit speed, driven by a coreless motor and supported by titanium & steel gears and dual ball bearings.

Operating across 6.0–8.4 V DC, the D15 balances speed and power to suit a wide range of control applications. Its low profile 41.0 x 20.0 x 26.3 mm form factor helps save space, while the 55.0 g weight keeps installation light.

Key Specifications

• Torque: 13.5 kg-cm (6.0V), 16.5 kg-cm (7.4V), 18.0 kg-cm (8.4V)
• Speed: 0.10 sec (6.0V), 0.095 sec (7.4V), 0.085 sec (8.4V)
• Operating voltage: 6.0 – 8.4 V DC
• Weight: 55.0 g (1.94 oz)
• Bearing type: Ball bearing x 2
• Motor type: Coreless motor
• Gear type: Titanium & steel
• Operating temperature: -20 – 60°C
• Working frequency: 1520µs / 333 Hz
• Size: 41.0 x 20.0 x 26.3 mm (1.61 x 0.79 x 1.04 in)
