Power HD GTS-2 Low Profile HV Brushless Servo

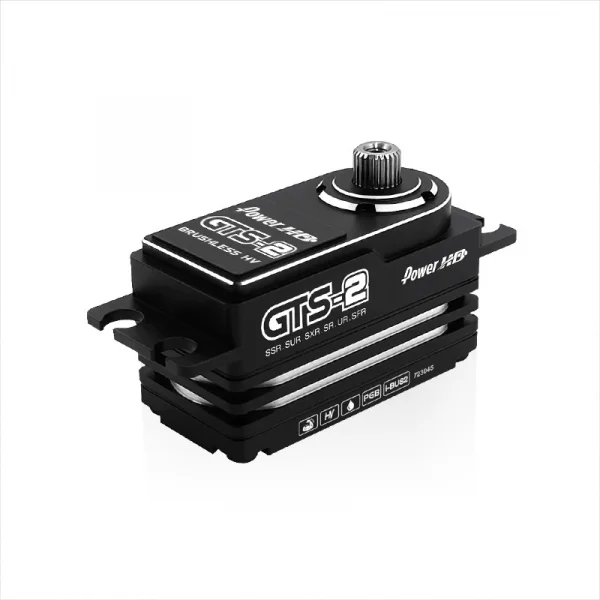

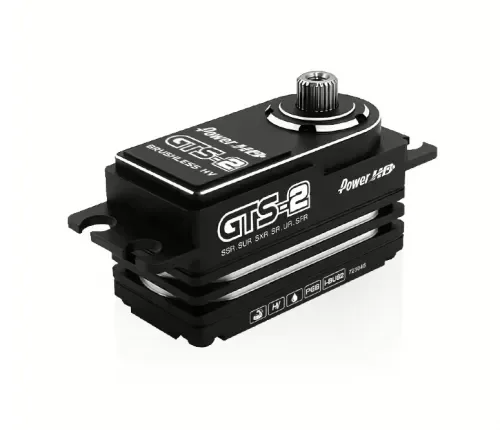

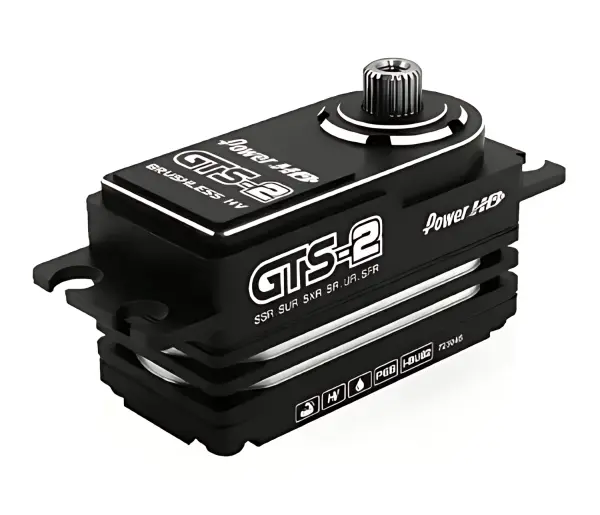

Developed over more than half a year, the Power HD GTS‑2 low profile HV MG brushless servo brings high performance in a remarkably light package. Weighing just 47 g despite a full metal CNC case and metal gears, it is the lightest addition to the Power HD GTS series and a compelling choice where every gram counts.

Its compact height—around 3 mm shorter than a traditional low‑profile servo—pairs perfectly with 1:10 electric touring car chassis layouts. A TC4 titanium alloy output gear and 7075 gear train are driven by a 4‑pole brushless motor and supported by dual ball bearings for consistent, precise control. The short 6 cm reverse wire with bottom‑exit routing helps free space around the receiver area.

Key Features

• Ultra‑light 47 g build with full metal CNC case and metal gears

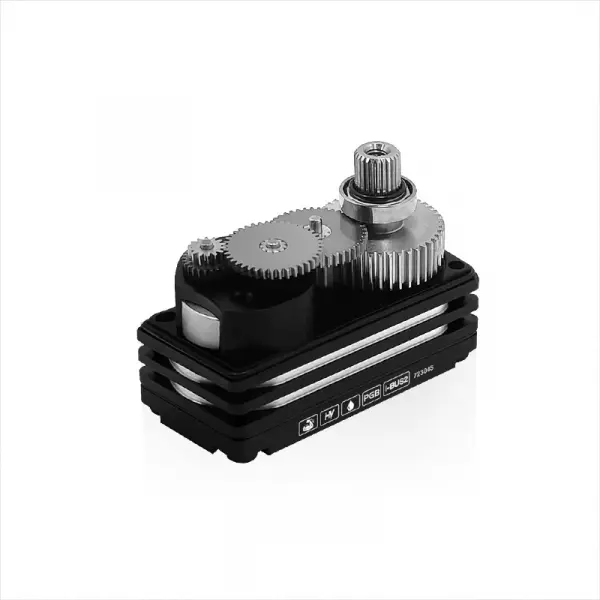

• TC4 titanium alloy output gear with 7075 gear train
• Low profile case with reduced height (approx. 3 mm shorter than typical low‑profile servos)
• 4‑pole brushless motor and dual ball bearings

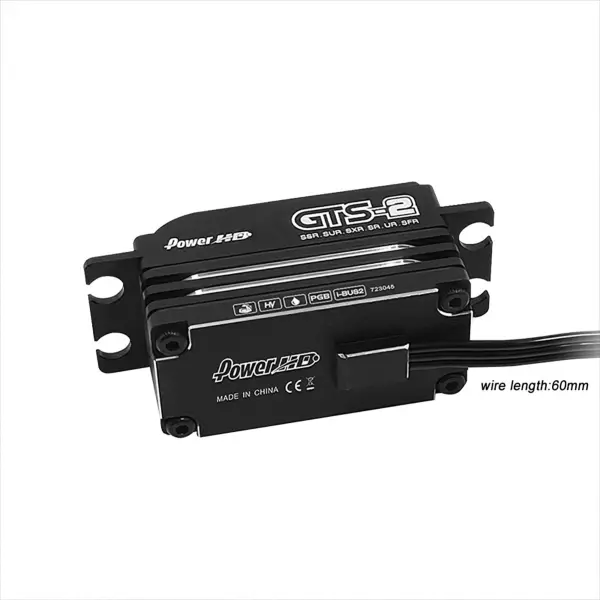

• Short 6 cm reverse wire; bottom exit for tidy installations
• High‑voltage operation with performance ratings at 6.0 V, 7.4 V and 8.4 V
• Operating temperature range: −10°C to 60°C

Performance Specifications

• Torque: 15.0 kg-cm (6.0 V) | 18.0 kg-cm (7.4 V) | 23.0 kg-cm (8.4 V)
• Speed: 0.080 s (6.0 V) | 0.073 s (7.4 V) | 0.065 s (8.4 V)

Construction & Dimensions

• Size: 41.0 × 20.0 × 23.6 mm (1.61 × 0.79 × 0.93 in)
• Weight: 47 g
• Bearing type: Ball bearing × 2
• Gear type: Titanium + 7075

Suggested Compatibility

• Ultra high‑speed modes of Sanwa/Futaba radios
• FlySky i‑BUS2 protocol

Optimised For 1:10 Electric Touring Cars

• Compact, low‑profile height and bottom‑exit wiring to maximise chassis space
• Lightweight build supports finely balanced setups
